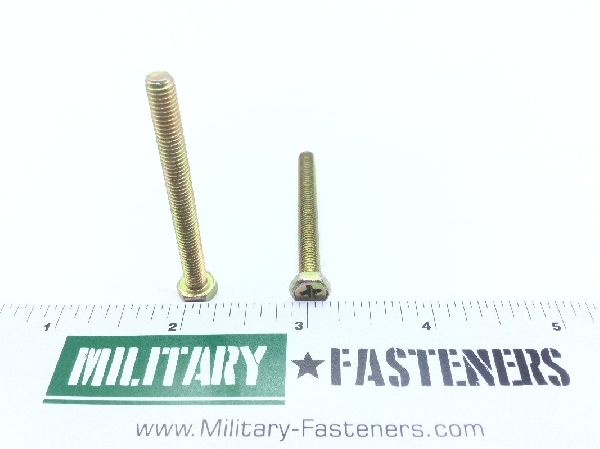

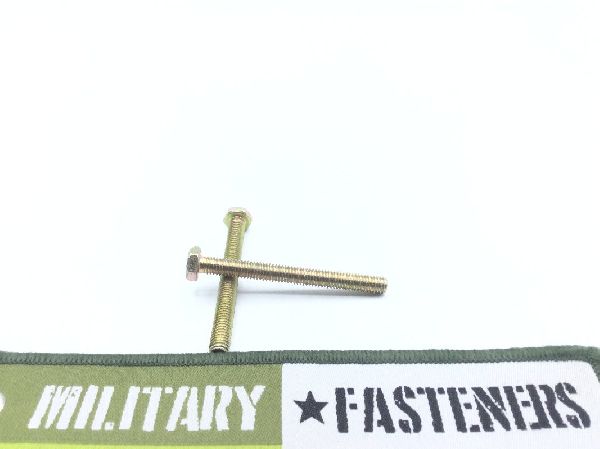

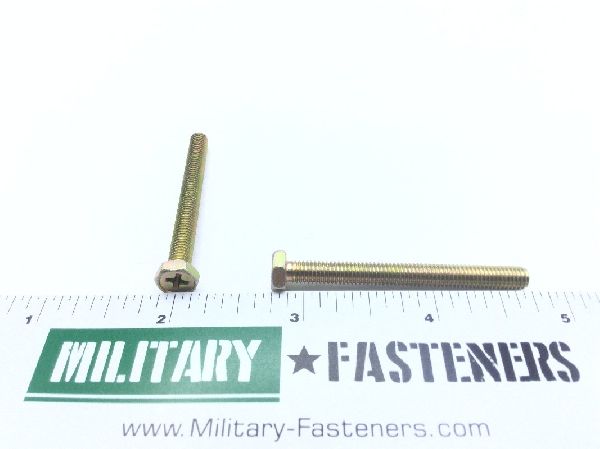

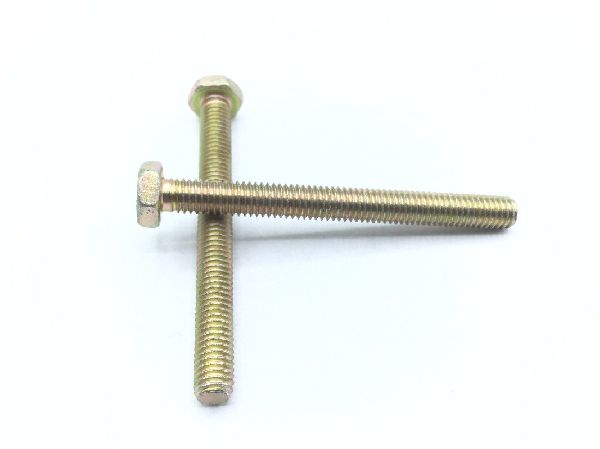

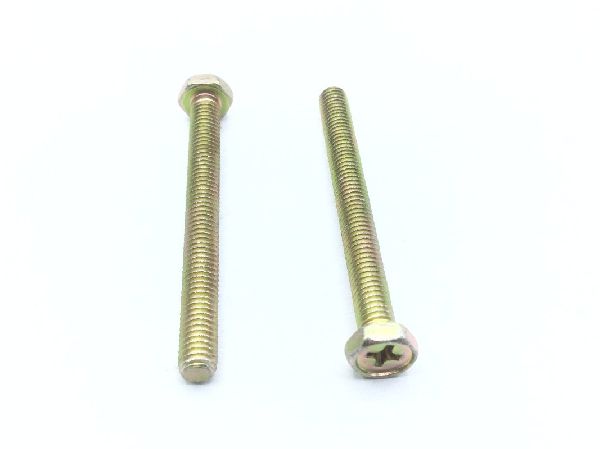

NAS1801-3-30 Machine Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.9000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 1.859 inches and 1.906 inches
- Hardness Rating
- Between 36.0 rockwell c and 40.0 rockwell c
- Head Height
- Between 0.105 inches and 0.120 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Screw Material
- Steel
- Screw Material Specification
- Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
- Screw Surface Treatment
- Cadmium and chromate
- Screw Surface Treatment Specification
- Qq-p-416 type 2 cl 2 federal specification single treatment response
- Specification Data
- 80205-nas1801 professional/industrial association standard
- Thread Diameter
- 0.190 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 1.795 inches and 1.874 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unjf (fine thread with external controlled root radius)
- Width Between Flats
- Between 0.305 inches and 0.314 inches
