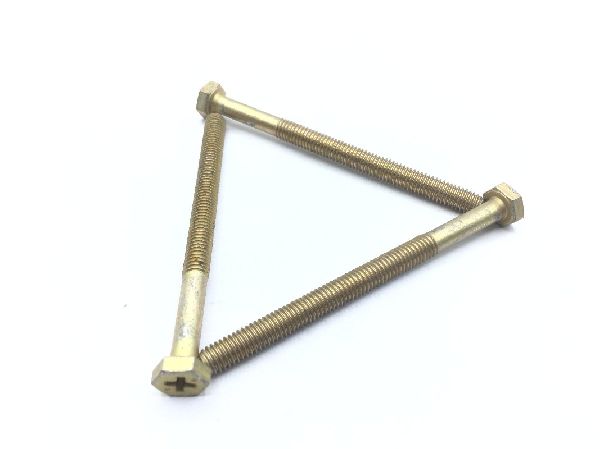

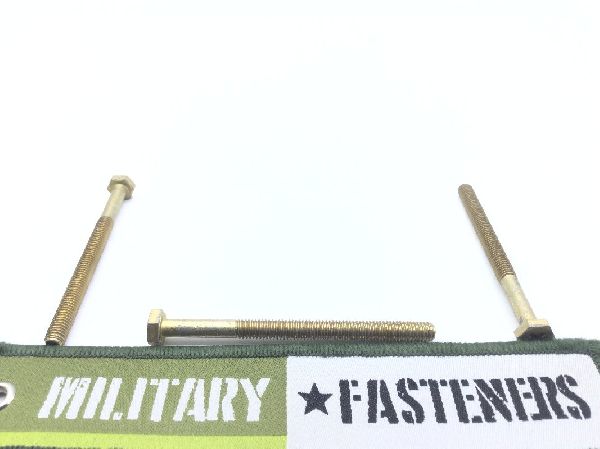

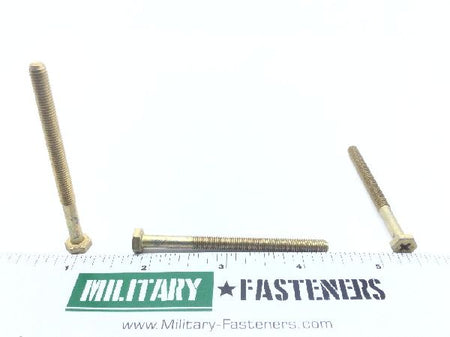

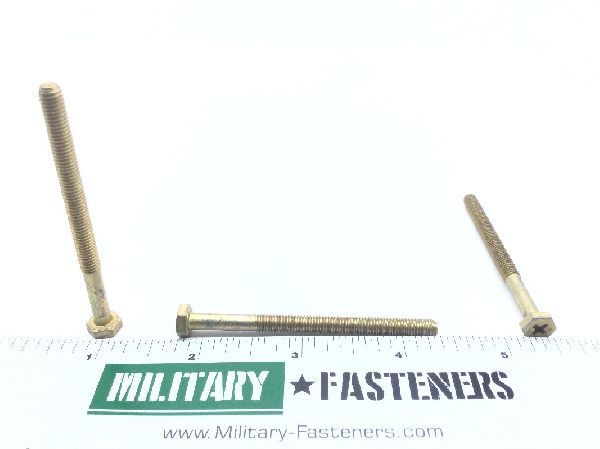

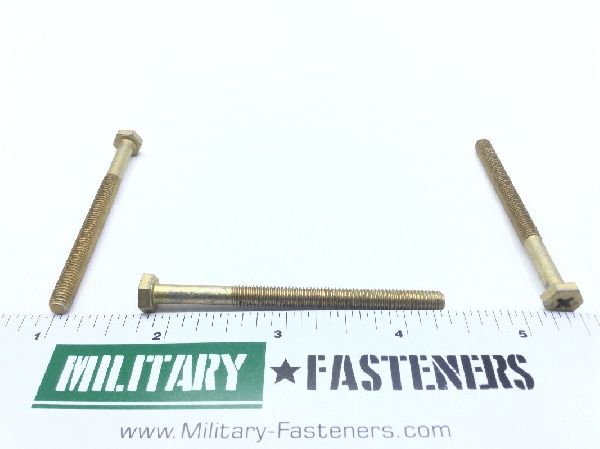

NAS1801-3-40 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.52

Units per Pack 25

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 1.984 inches and 2.031 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.105 inches and 0.120 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp e4340 or steel comp 8740
Screw Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 type 2 class 2 federal specification single treatment response
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 1.750 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.305 inches and 0.314 inches
