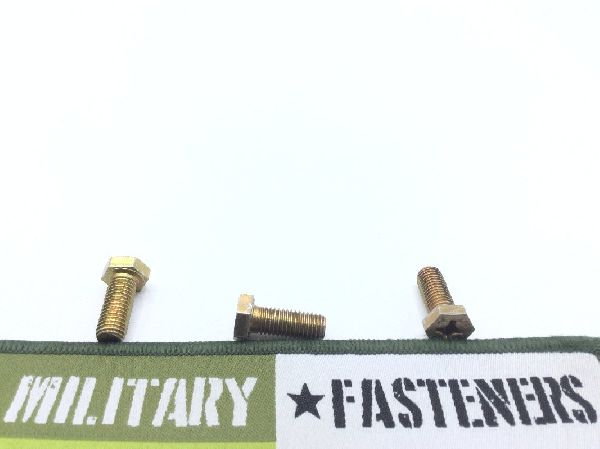

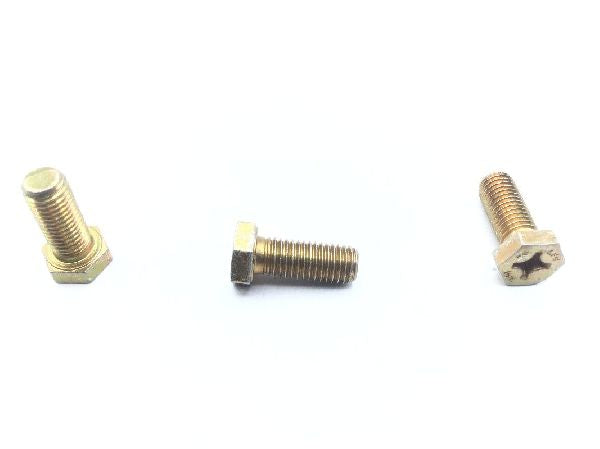

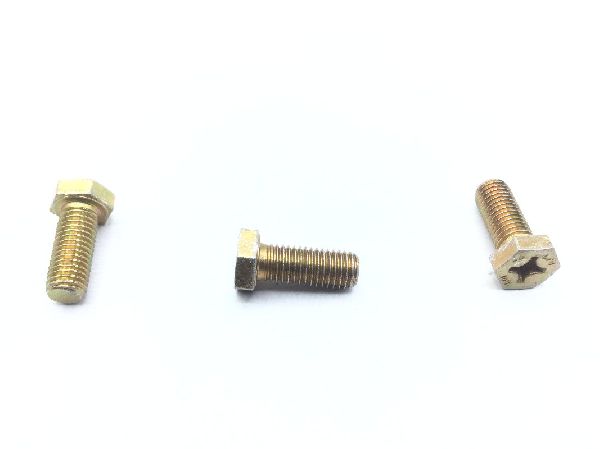

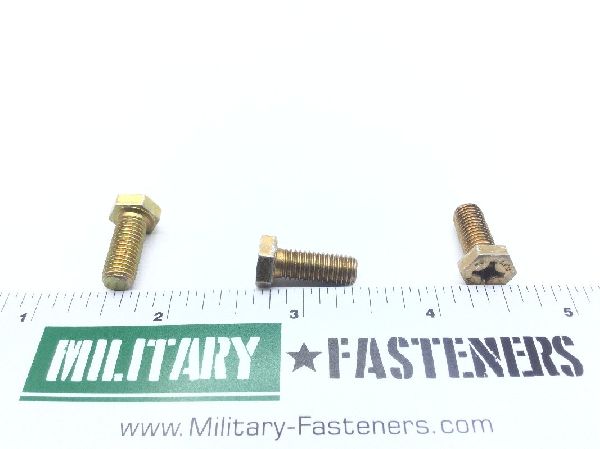

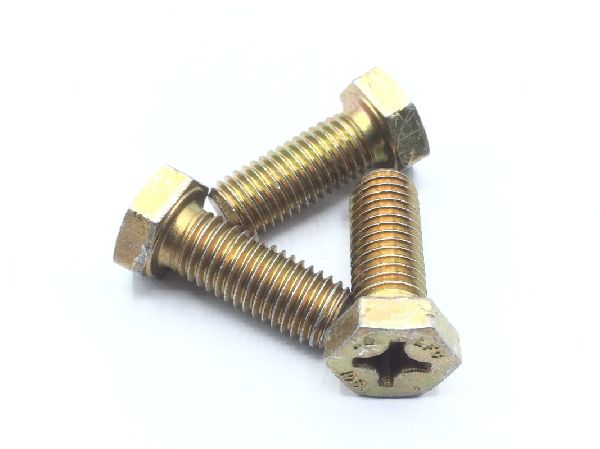

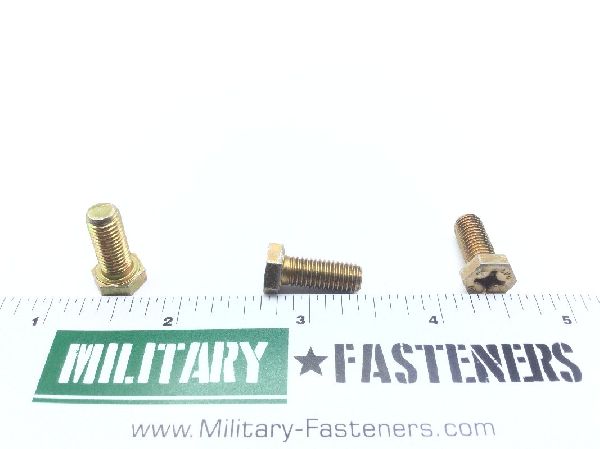

NAS1801-4-10 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.66

Units per Pack 25

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 0.609 inches and 0.656 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.125 inches and 0.140 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp e4340 or steel comp 8740
Screw Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 type 2 class 2 federal specification single treatment response
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.538 inches and 0.656 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
