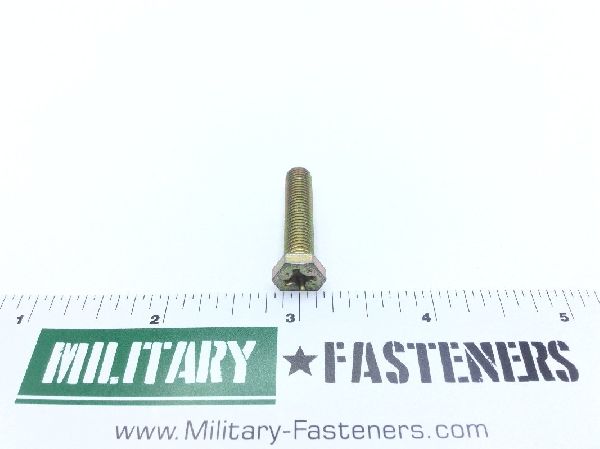

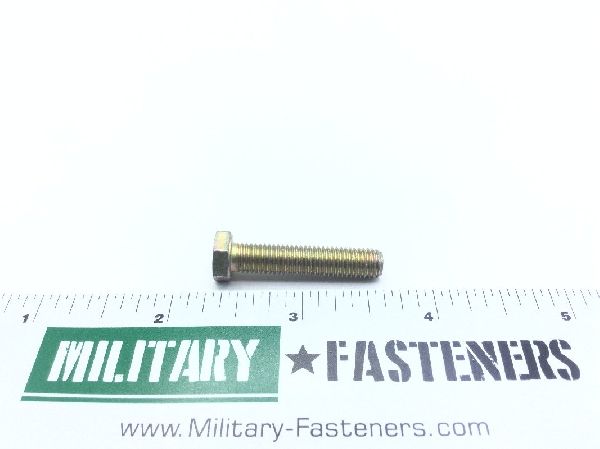

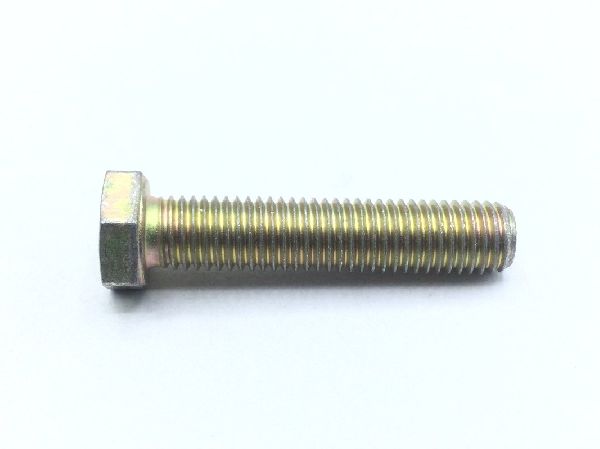

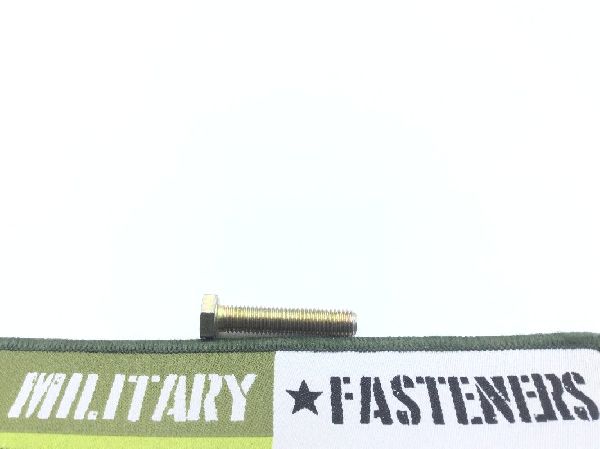

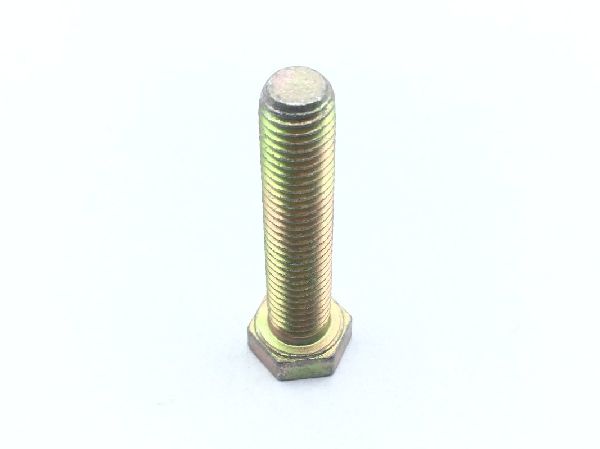

NAS1801-4-19 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.56

Units per Pack 20

Price per Pack $51.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $51.20

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type ii qq-p-416

Thread Class

Bearing Surface Of Head Surface Finish: 63.0 microinches
Fastener Length: Between 1.1715 inches and 1.2175 inches
Head Height: Between 0.125 inches and 0.140 inches

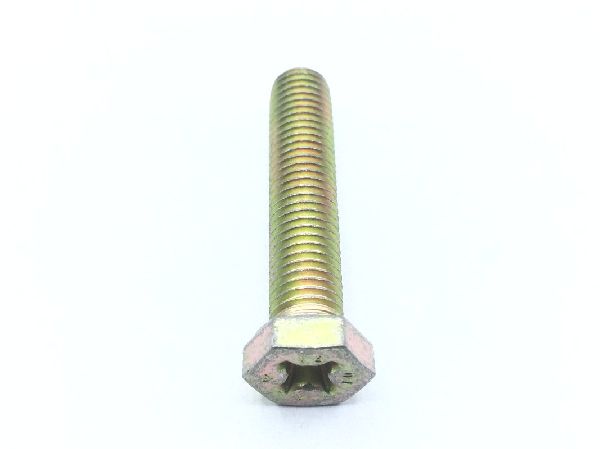

Internal Drive Style: Cross recess type 1
Material Specification: Ams6382 national specification 1st material response or ams6415 or 6484 national specification 2nd material response or ams6322 national specification 3rd material response
Part Name Assigned By Controlling Agency: 160 ksi ftu alloy steel full thread cruciform recess hex head screw
Shank Surface Finish: 32.0 microinches
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.2500 inches
Thread Direction: Right-hand
Thread Length: Between 1.1715 inches and 1.2175 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Thread Surface Finish: 32.0 microinches
Width Between Flats: Between 0.367 inches and 0.376 inches
