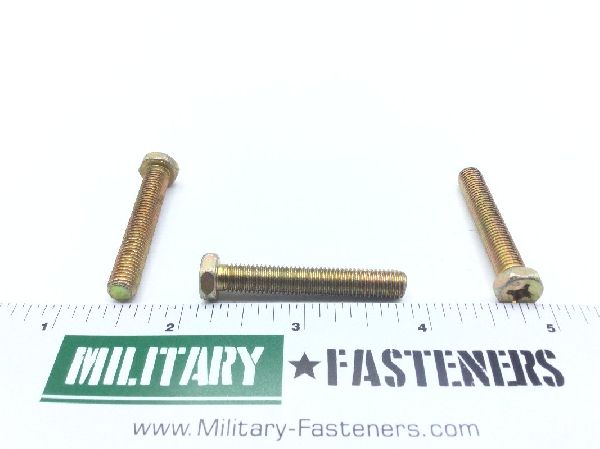

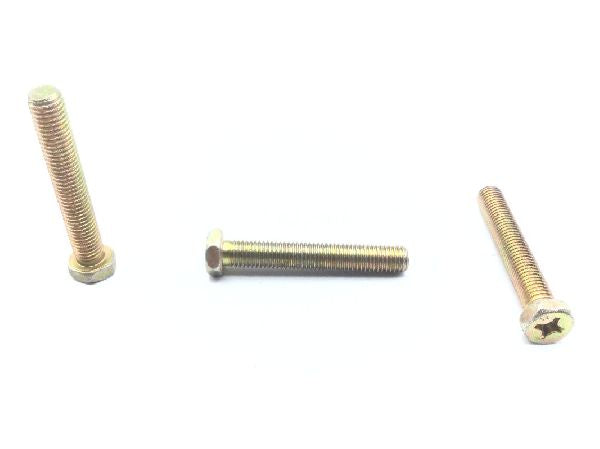

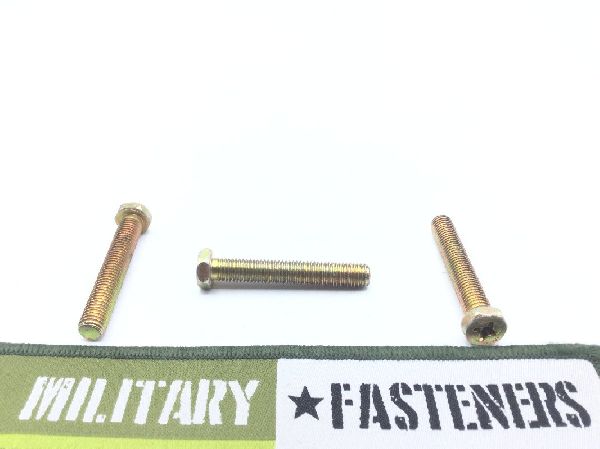

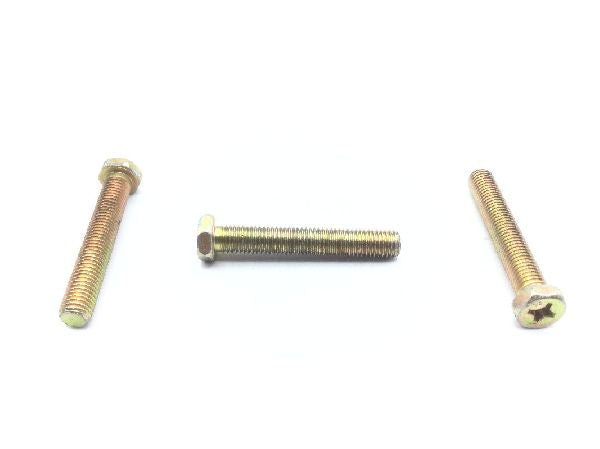

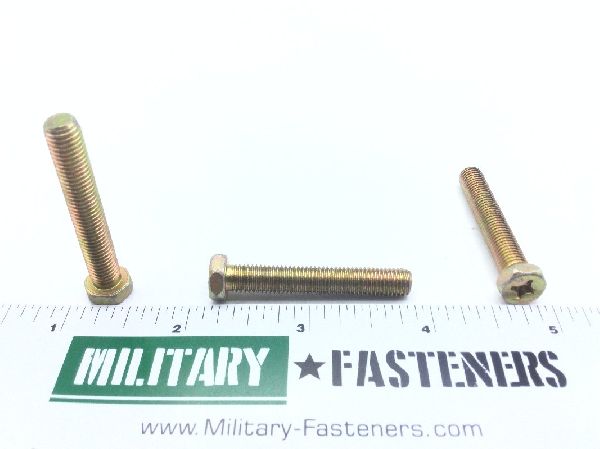

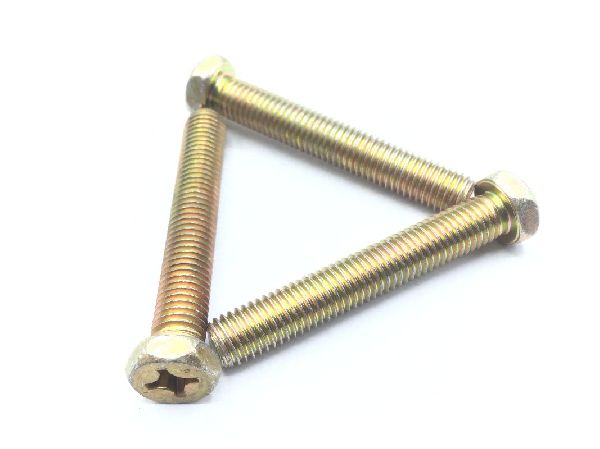

NAS1801-4-25 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.84

Units per Pack 20

Price per Pack $56.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $56.80

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 1.546 inches and 1.593 inches
Head Height: Between 0.125 inches and 0.140 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp
Screw Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 2 federal specification single treatment response type 2 qq-p-416
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 1.482 inches and 1.561 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
