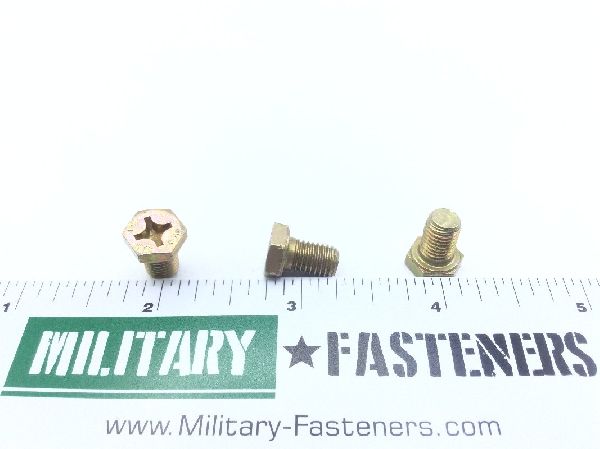

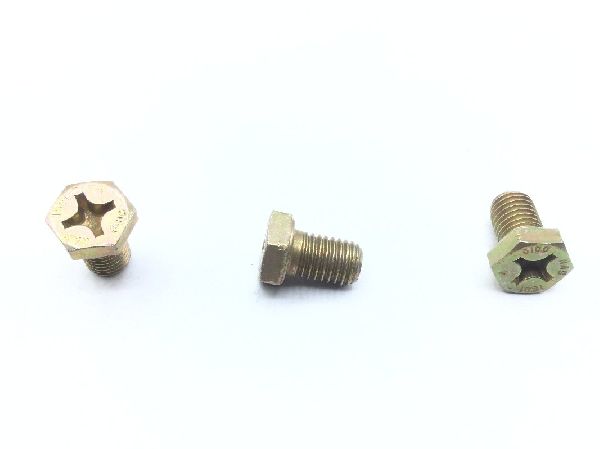

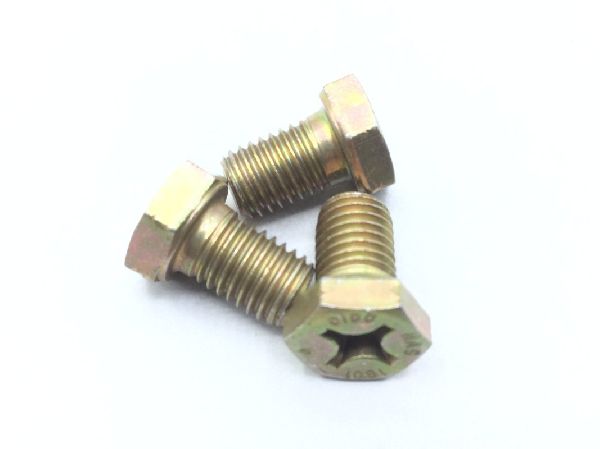

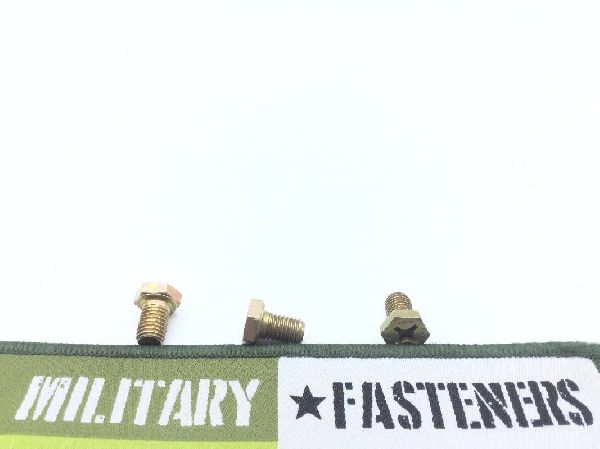

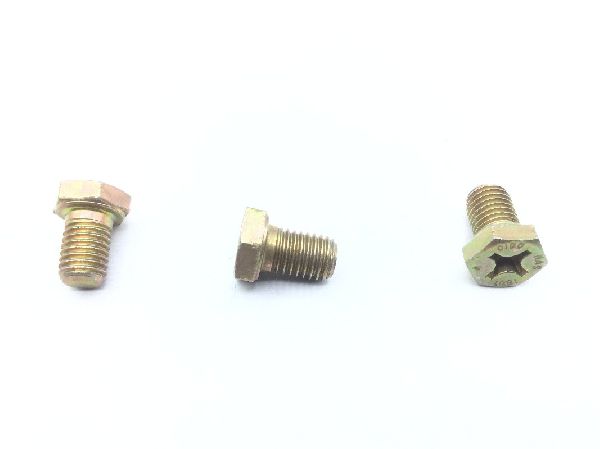

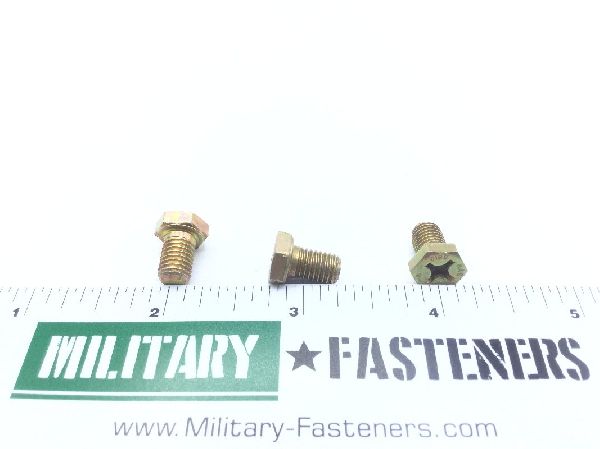

NAS1801-4-6 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Thread Class

Bearing Surface Of Head Surface Finish: 32.0 microinches
Fastener Length: Between 0.359 inches and 0.406 inches
Head Height: Between 0.046 inches and 0.056 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp e4340 or steel comp 8740
Screw Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 ty2 cl2 federal specification single treatment response
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.295 inches and 0.374 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Thread Surface Finish: 32.0 microinches
Width Between Flats: Between 0.367 inches and 0.376 inches
