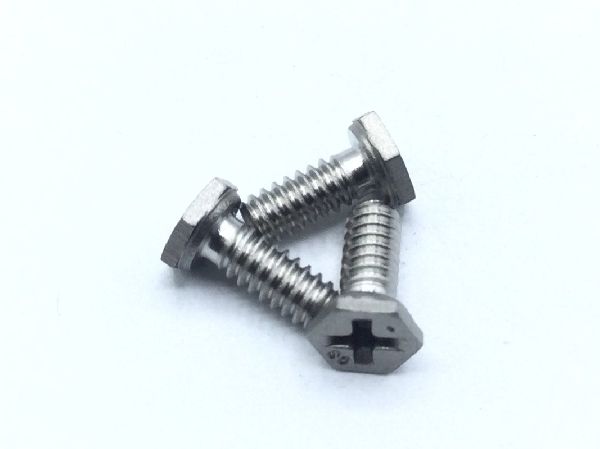

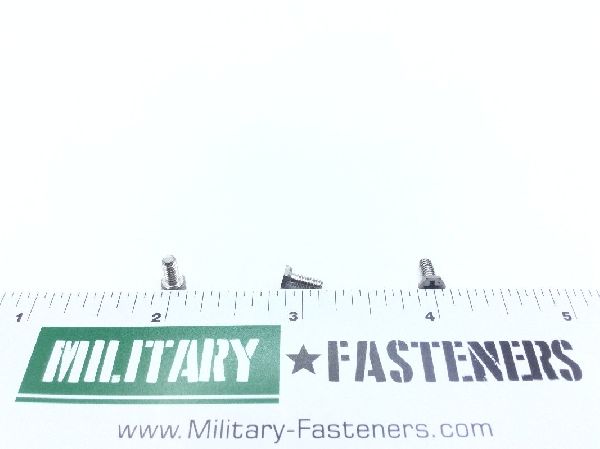

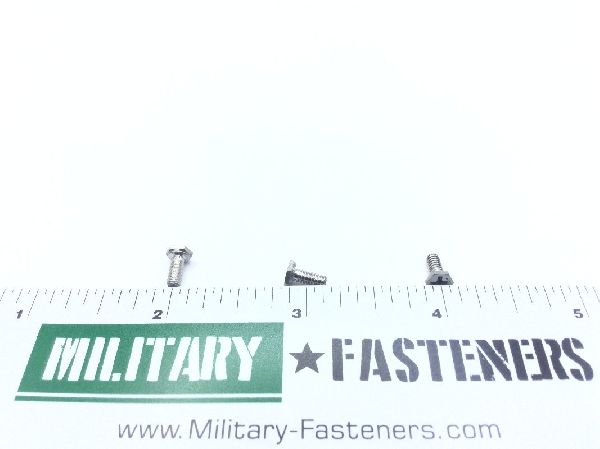

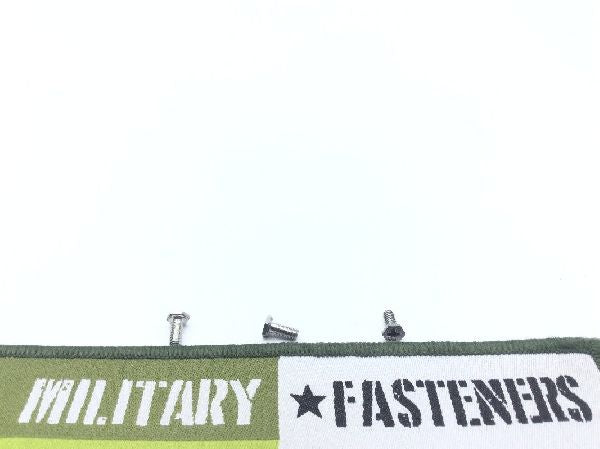

NAS1802-04-4 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Thread Class

Fastener Length: Between 0.234 inches and 0.281 inches
Head Height: Between 0.049 inches and 0.060 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Specification Data: 80205-nas1802 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.217 inches and 0.218 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Width Between Flats: Between 0.181 inches and 0.189 inches
