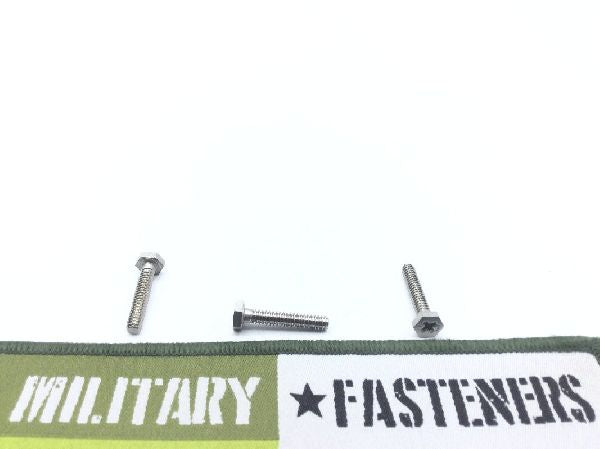

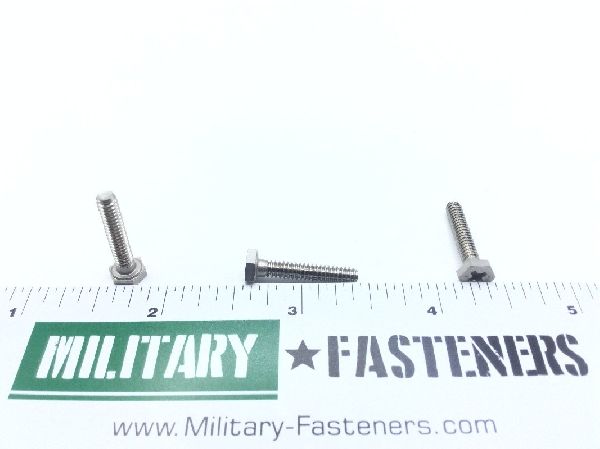

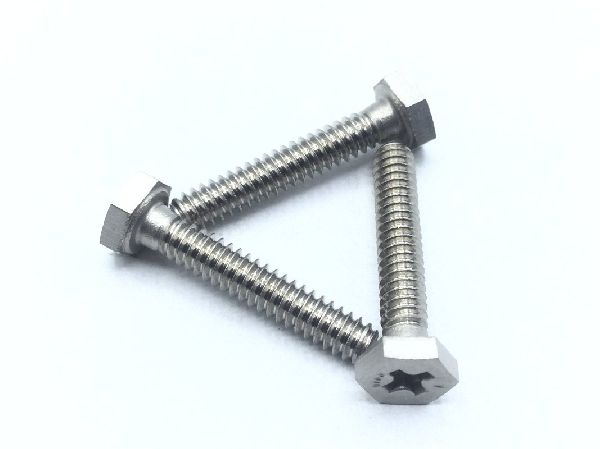

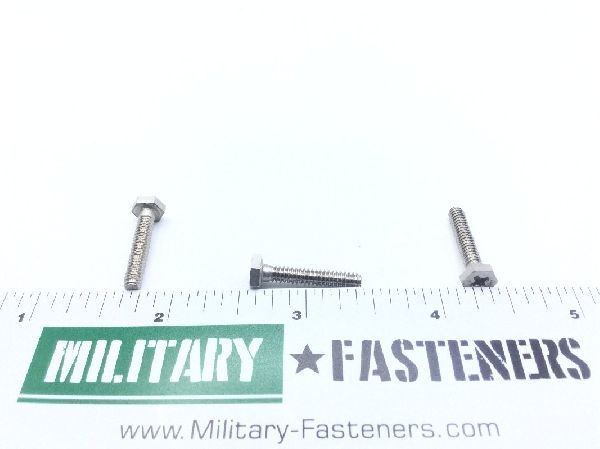

NAS1802-06-12 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.734 inches and 0.781 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.080 inches and 0.093 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1802 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.608 inches and 0.749 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.243 inches and 0.251 inches
