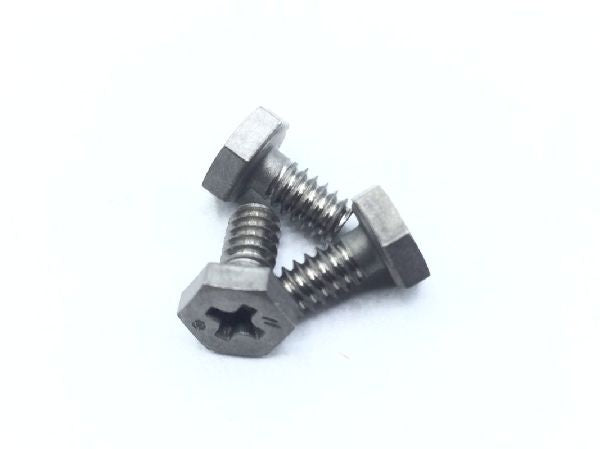

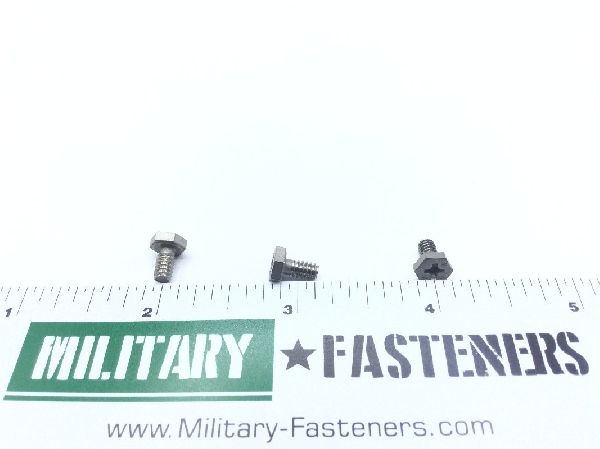

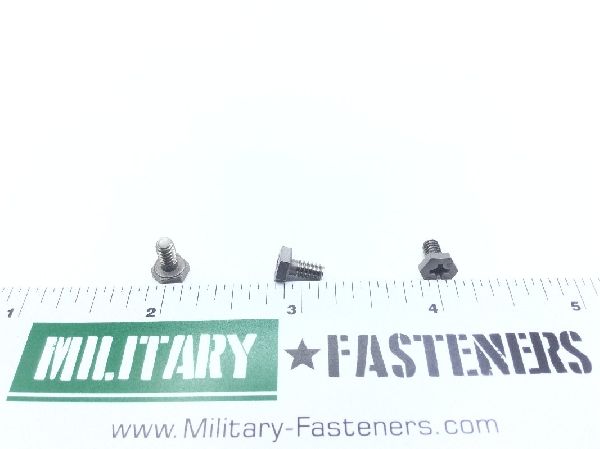

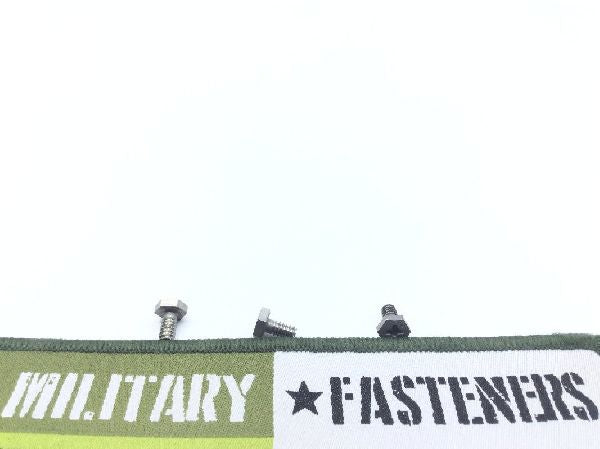

NAS1802-06-4 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.64

Units per Pack 20

Price per Pack $52.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $52.80

Add item to quote

Head Style

Hexagon

Thread Class

Bearing Surface Of Head Surface Finish: 63.0 microinches
Fastener Length: Between 0.234 inches and 0.281 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.080 inches and 0.093 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Shank Surface Finish: 32.0 microinches
Specification Data: 80205-nas1802 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.172 inches and 0.281 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Thread Surface Finish: 32.0 microinches
Width Between Flats: Between 0.243 inches and 0.251 inches
