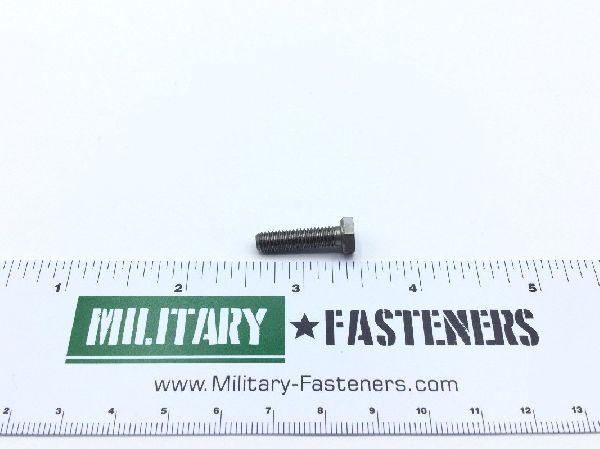

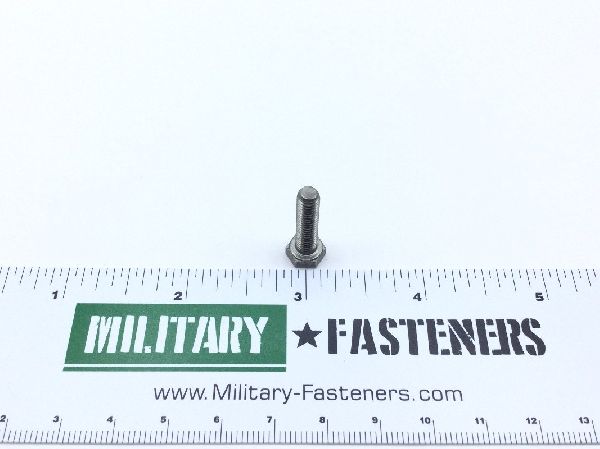

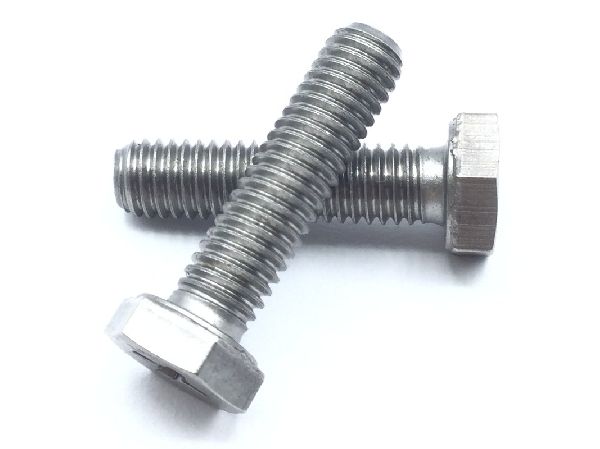

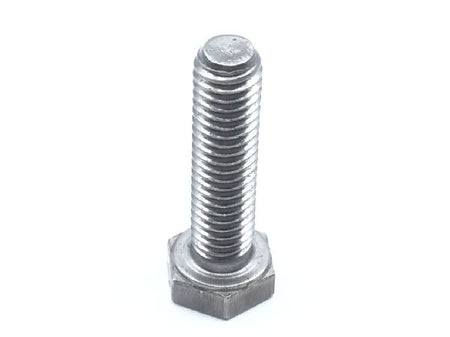

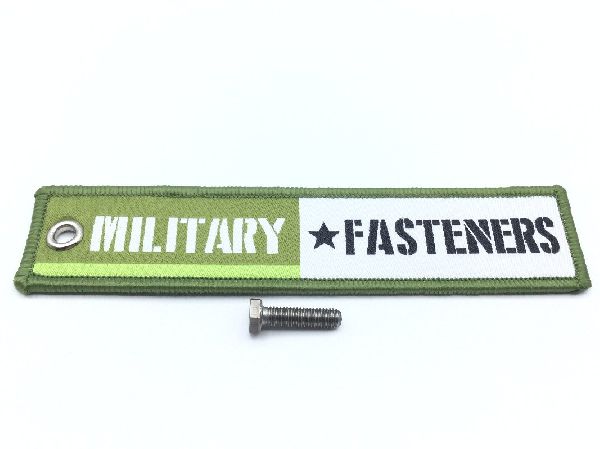

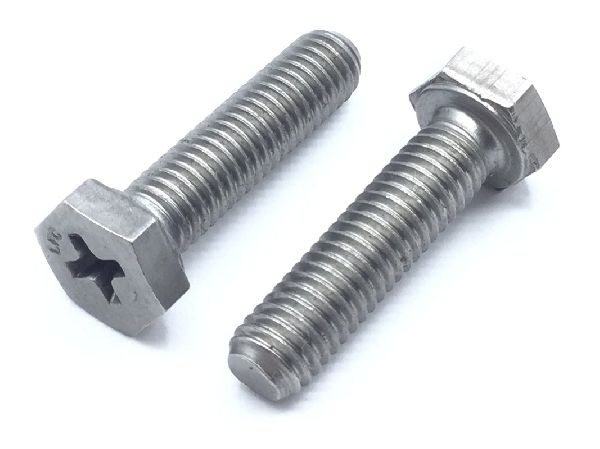

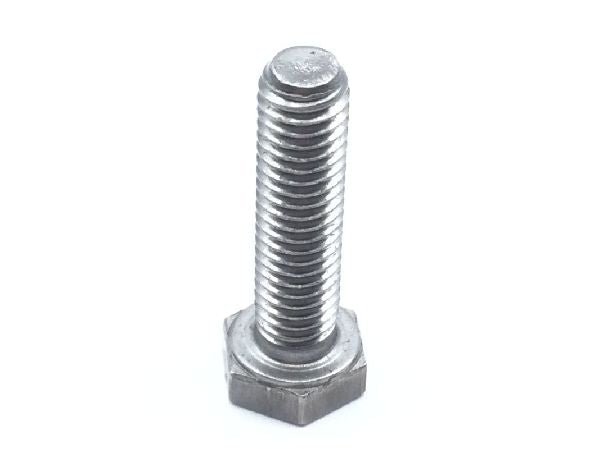

NAS1802-3-12 Machine Screw

NSN: 5305-01-120-8165
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.00

Units per Pack 10

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.734 inches and 0.781 inches
Head Height: Between 0.105 inches and 0.120 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1802 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.672 inches and 0.781 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.305 inches and 0.314 inches
