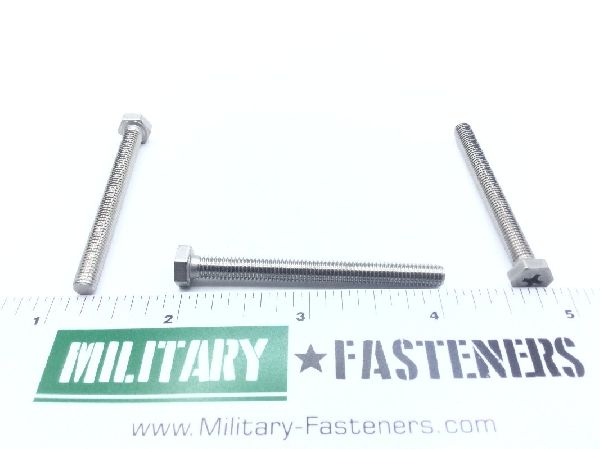

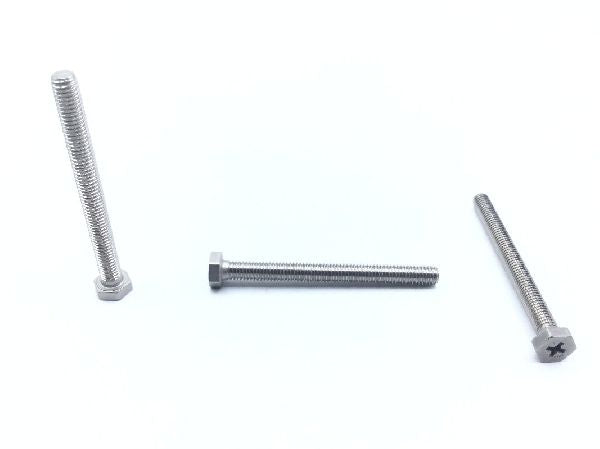

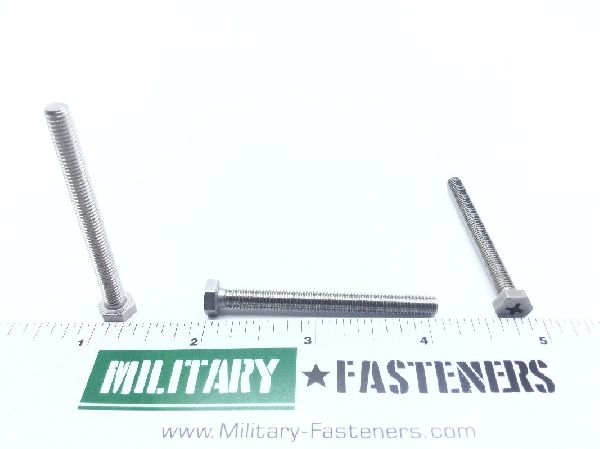

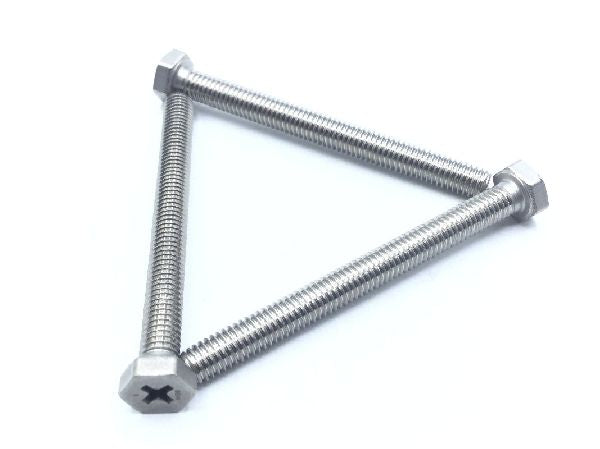

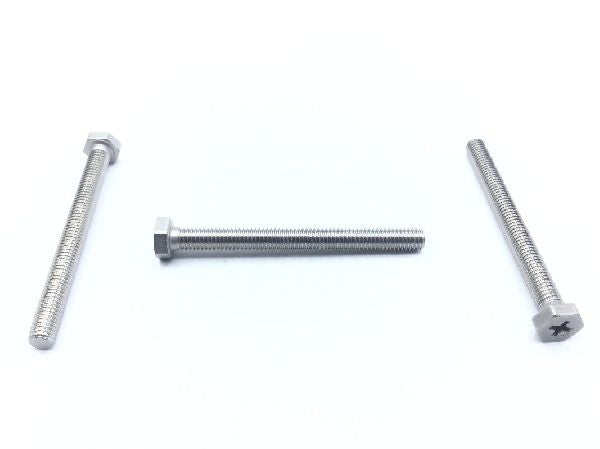

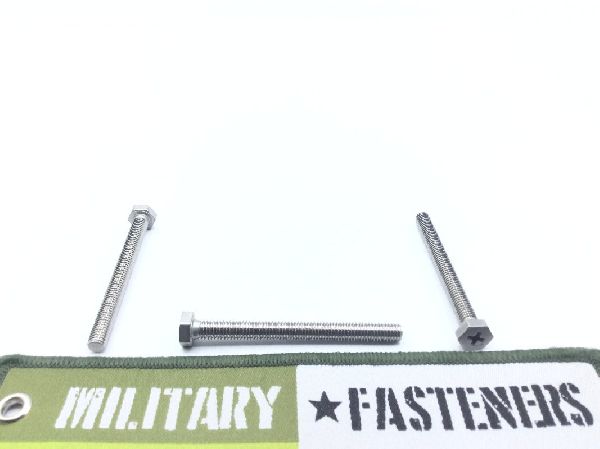

NAS1802-3-32 Machine Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Bearing Surface Of Head Surface Finish
- 63.0 microinches
- Fastener Length
- Between 1.984 inches and 2.031 inches
- Head Height
- Between 0.105 inches and 0.120 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Screw Material
- Iron alloy 660
- Screw Material Specification
- Ams5731 assn standard single material response or ams5737 assn standard single material response
- Screw Surface Treatment
- Passivate
- Screw Surface Treatment Specification
- Qq-p-35 federal specification single treatment response
- Shank Surface Finish
- 32.0 microinches
- Specification Data
- 80205-nas1802 professional/industrial association standard
- Thread Diameter
- 0.190 inches
- Thread Direction
- Right-hand
- Thread Length
- 1.750 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unjf (fine thread with external controlled root radius)
- Thread Surface Finish
- 32.0 microinches
- Width Between Flats
- Between 0.305 inches and 0.314 inches
