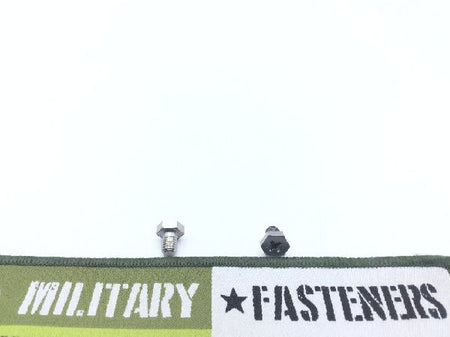

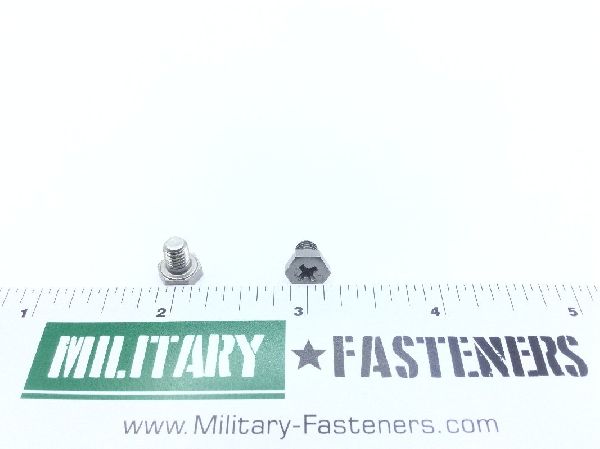

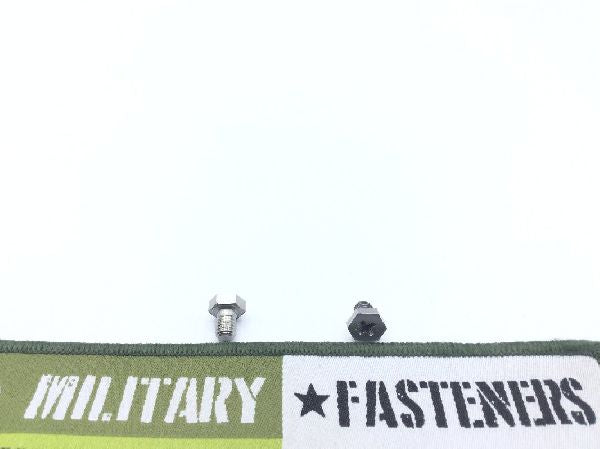

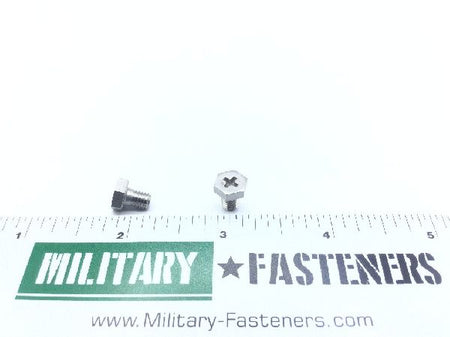

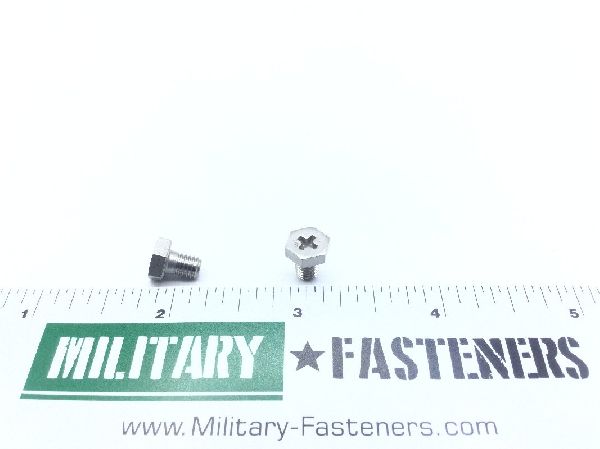

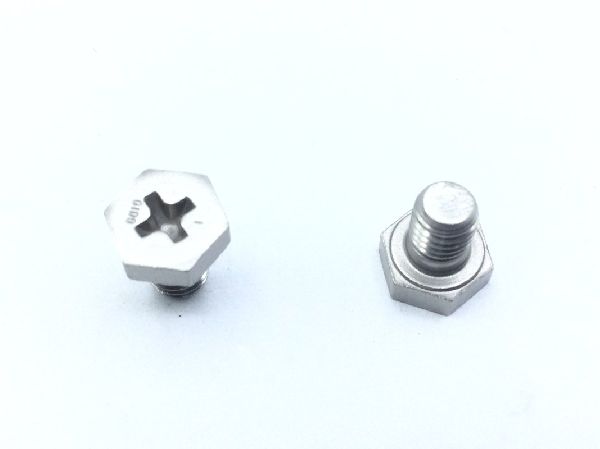

NAS1802-3-4 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 0.234 inches and 0.281 inches
Head Height: Between 0.105 inches and 0.120 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Specification Data: 80205-nas1802 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.108 inches and 0.249 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.305 inches and 0.314 inches
