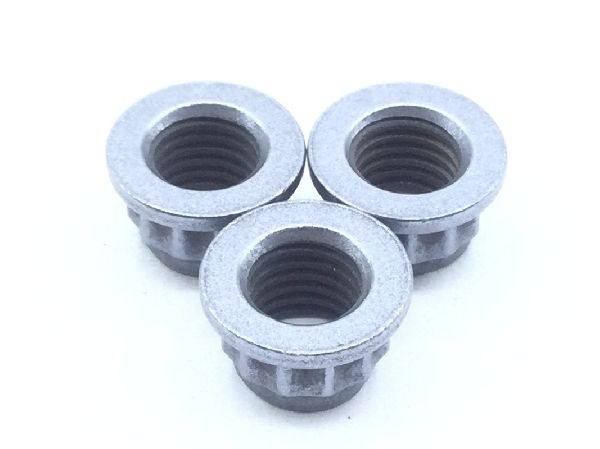

NAS1804-4 Self-Locking Extended Washer Nut

NAS1804-4 Self-Locking Extended Washer Nut (2)

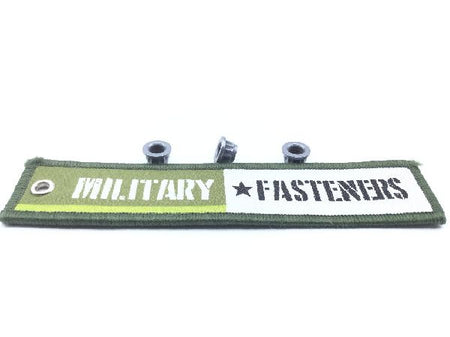

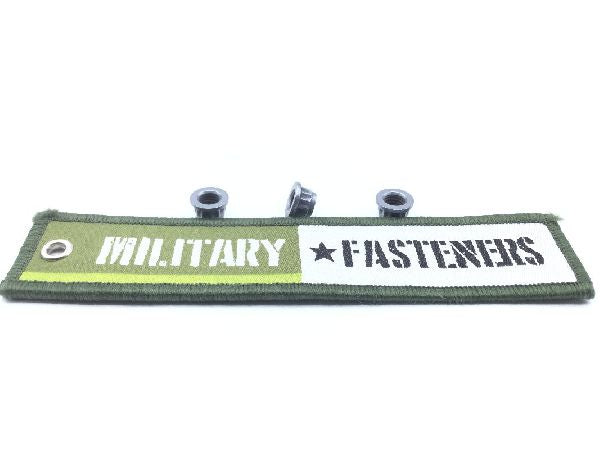

NAS1804-4 Self-Locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1804-4 Self-Locking Extended Washer Nut

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $4.10

Units per Pack 10

Price per Pack $41.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.00

Add item to quote

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Hardness Rating: 45.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 6304 assn standard 1st material response or ams 6487 assn standard 2nd material response
Nut Style: Double hexagon
Overall Height: 0.250 inches
Specification Data: 80205-nas1804 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Washer Outside Diameter: 0.434 inches
Washer Thickness: 0.020 inches
Width Across Flats: Between 0.305 inches and 0.313 inches
Lubrication: Dry film lubricant
