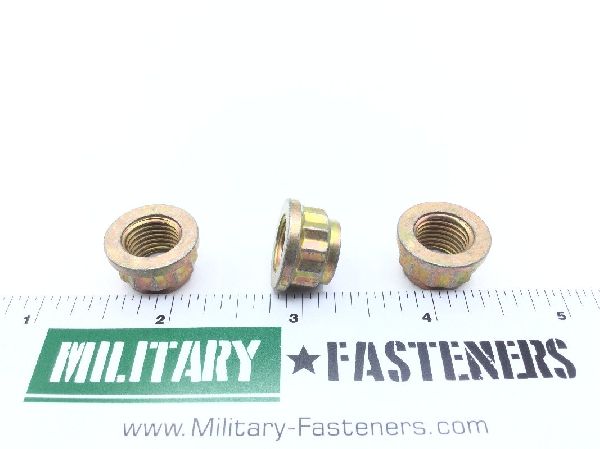

NAS1804-7N Self-Locking Extended Washer Nut

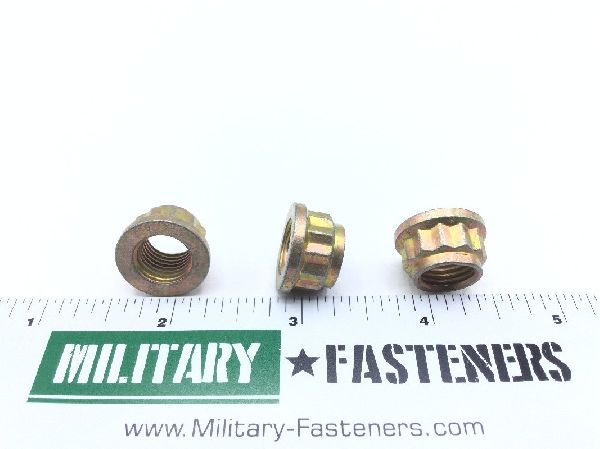

NAS1804-7N Self-Locking Extended Washer Nut (2)

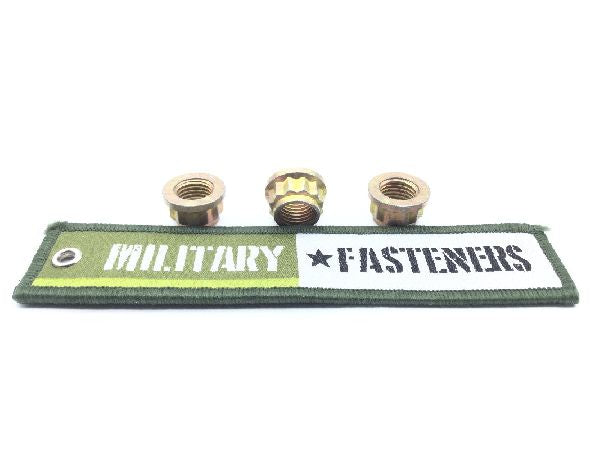

NAS1804-7N Self-Locking Extended Washer Nut (3)

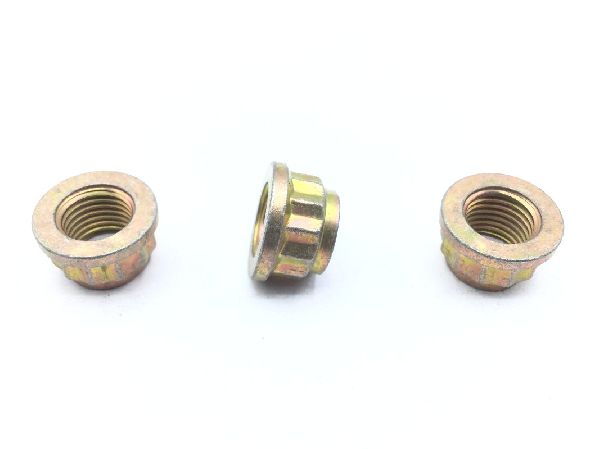

NAS1804-7N Self-Locking Extended Washer Nut (4)

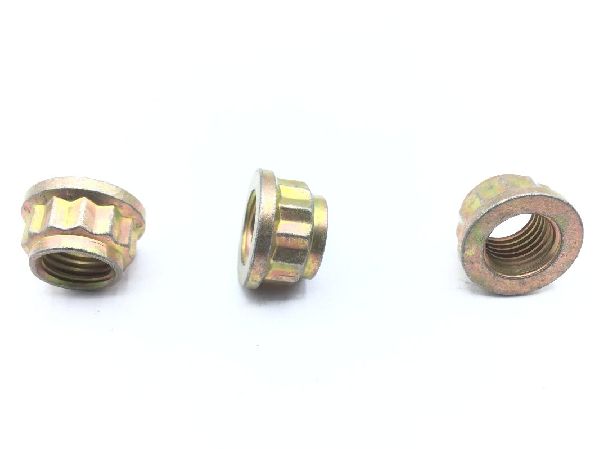

NAS1804-7N Self-Locking Extended Washer Nut (5)

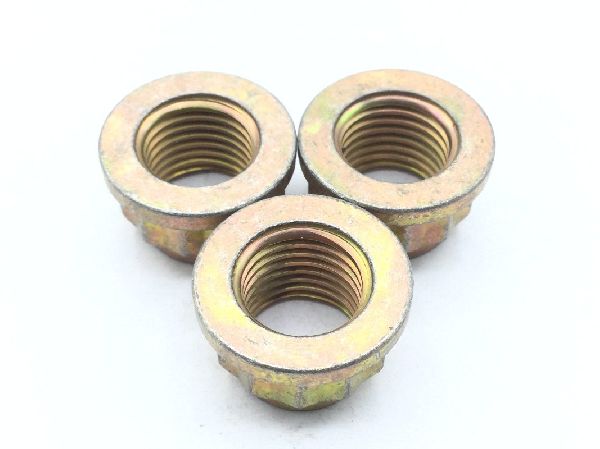

NAS1804-7N Self-Locking Extended Washer Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1804-7N Self-Locking Extended Washer Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 601 and steel comp h11

Surface Treatment

tyii federal specification single treatment response qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.437 inches

Hardness Rating: 45.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 6304 assn standard 1st material response or ams 6487 assn standard 2nd material response
Nut Style: Double hexagon
Overall Height: 0.438 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Washer Outside Diameter: 0.729 inches
Washer Thickness: 0.069 inches
Width Across Flats: Between 0.553 inches and 0.564 inches
