Home » NAS1805-3 Self-Locking Extended Washer Nut

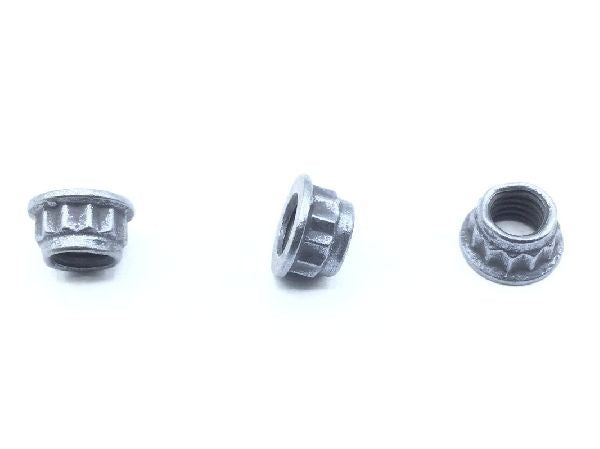

NAS1805-3 Self-Locking Extended Washer Nut
NAS1805-3 Self-Locking Extended Washer Nut (2)
NAS1805-3 Self-Locking Extended Washer Nut (3)

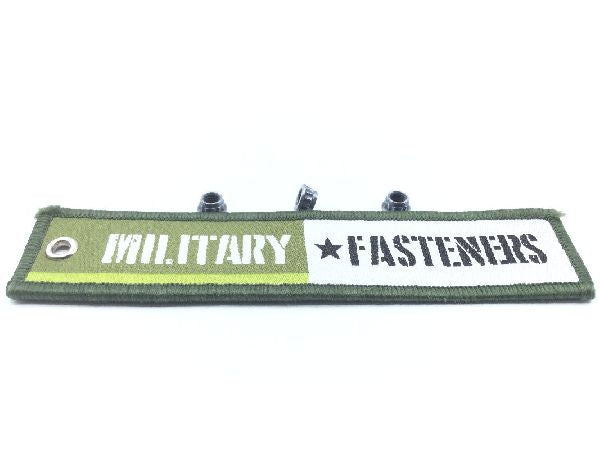

NAS1805-3 Self-Locking Extended Washer Nut (4)
NAS1805-3 Self-Locking Extended Washer Nut
NAS1805-3 Self-Locking Extended Washer Nut (2)
NAS1805-3 Self-Locking Extended Washer Nut (3)

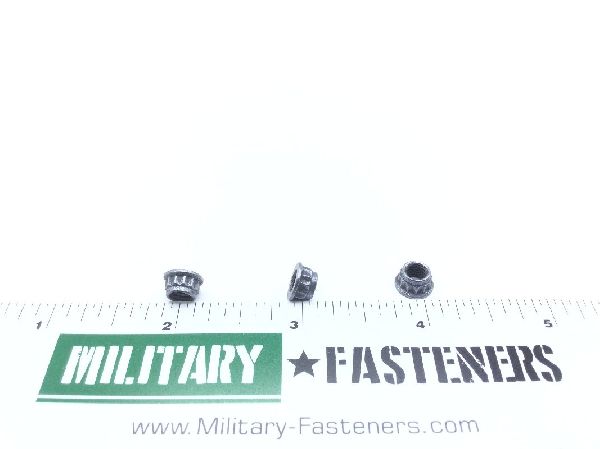

NAS1805-3 Self-Locking Extended Washer Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1805-3 Self-Locking Extended Washer Nut

Product Series
NAS
ECCN
EAR99
Schedule
8112.29.0000
Price per Unit $4.45
Units per Pack 10
Price per Pack $44.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $44.50
Add item to quote
Material
Iron alloy 660
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3b
Thread Series
Unjf (fine thread with external controlled root radius)
Thread Size
0.190 inches
Locking Feature
Prevailing torque all metal design
Material Specification
Ams 5737 assn standard single material response
Nut Style
Double hexagon
Overall Height
0.190 inches
Specification Data
80205-nas1805 professional/industrial association standard
Tempurature Rating
450.0 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Washer Outside Diameter
0.339 inches
Washer Thickness
0.015 inches
Width Across Flats
Between 0.243 inches and 0.251 inches
Lubrication
Dry film lubricant
