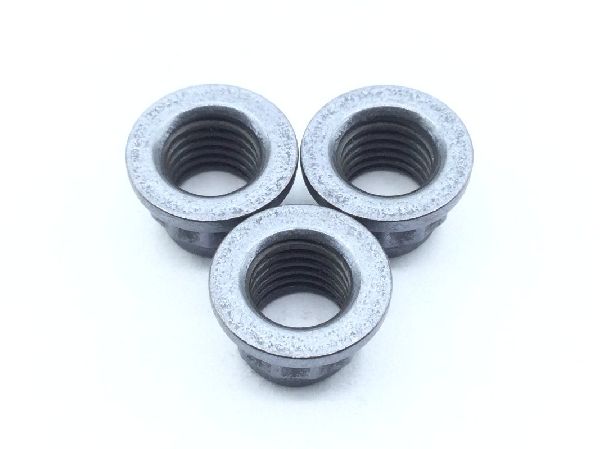

NAS1805-4 Self-Locking Extended Washer Nut

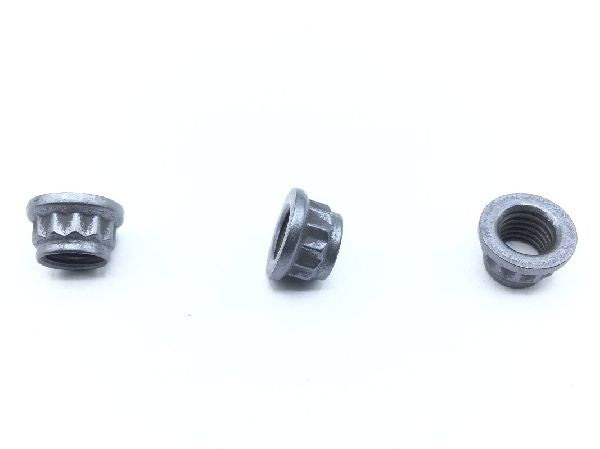

NAS1805-4 Self-Locking Extended Washer Nut (2)

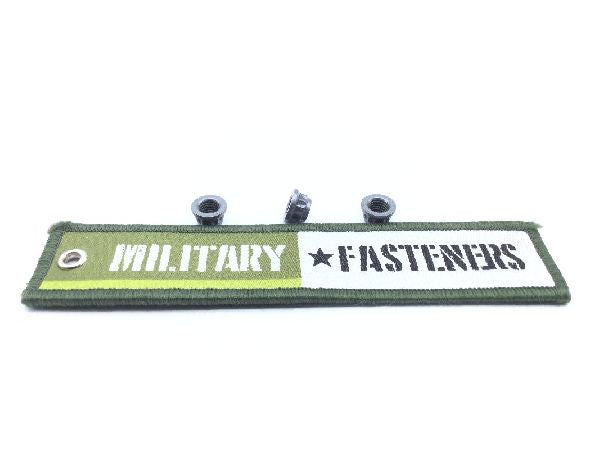

NAS1805-4 Self-Locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1805-4 Self-Locking Extended Washer Nut

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5731 assn standard single material response
Nut Style: Double hexagon
Overall Height: 0.250 inches
Specification Data: 80205-nas1805 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Washer Outside Diameter: 0.434 inches
Washer Thickness: 0.020 inches
Width Across Flats: Between 0.305 inches and 0.313 inches
Lubrication: Dry film lubricant
