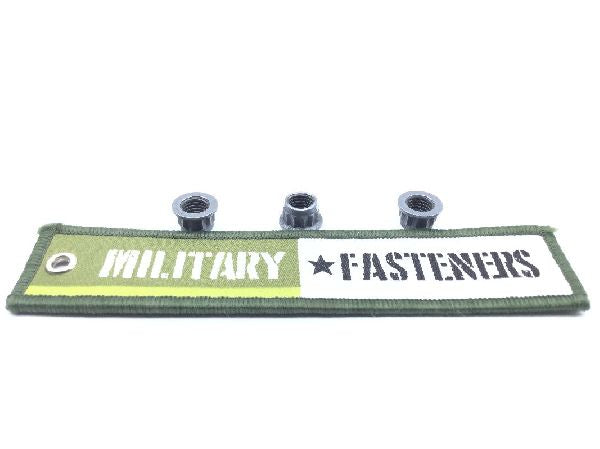

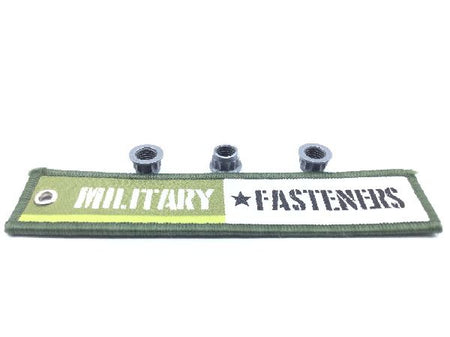

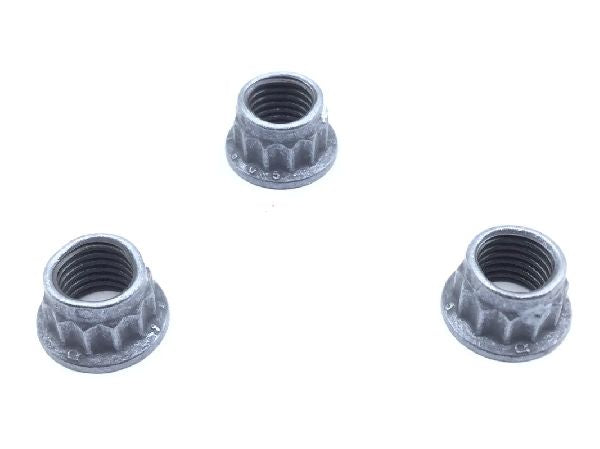

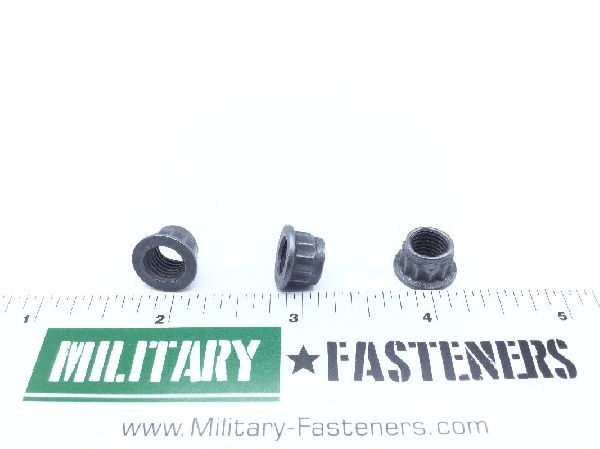

NAS1805-5L Self-Locking Extended Washer Nut

NSN
5310-01-314-3078
Product Series
NAS
ECCN
EAR99
Schedule
7318.22.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Iron alloy 660
Surface Treatment
Cl 2 federal specification 2nd treatment response type 2 cl 2 federal specification 1st treatment response or qq-p-416 type 1 qq-p-416
Thread Class
3b
Thread Series
Unjf (fine thread with external controlled root radius)
Thread Size
0.312 inches
Locking Feature
Prevailing torque all metal design
Material Specification
Ams 5737 assn standard single material response
Nut Style
Double hexagon
Overall Height
0.312 inches
Specification Data
80205-nas1805 professional/industrial association standard
Tempurature Rating
450 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
24
Washer Outside Diameter
0.532 inches
Washer Thickness
0.035 inches
Width Across Flats
Between 0.367 inches and 0.376 inches
