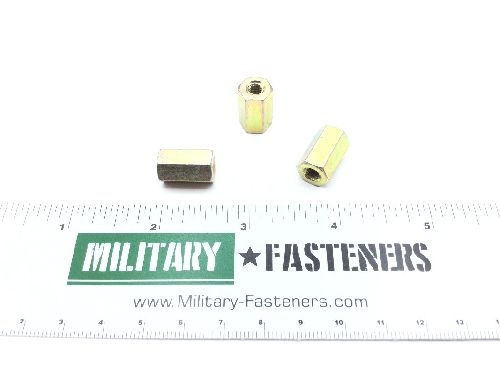

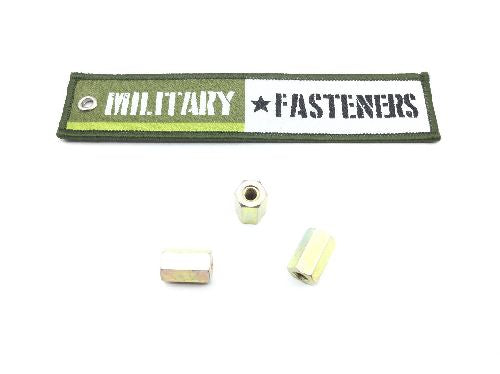

NAS1831-6E10 Electrical Post

Product Series: NAS
ECCN: EAR99

Price per Unit $17.94

Units per Pack 5

Price per Pack $89.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $89.70

Add item to quote

Material

Steel comp 4130 or steel comp 8630 or steel comp 8740

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Bearing Surface Type: Flat
Material Specification: Mil-s-6758 military specification 1st material response or mil-s-6050 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Nut Height: Between 0.620 inches and 0.630 inches
Nut Style: Hexagon
Specification Data: 80205-nas1831 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.371 inches and 0.379 inches
