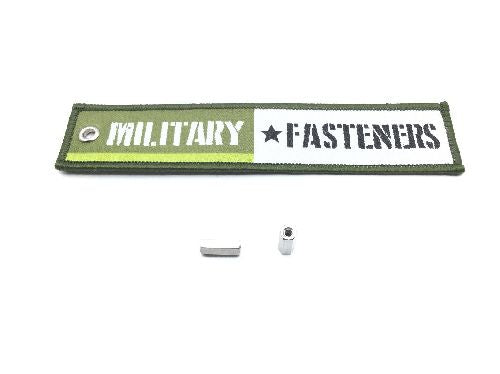

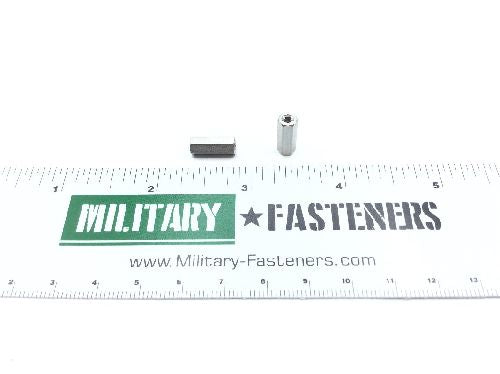

NAS1831C3B08 Electrical Post

Product Series: NAS
ECCN: EAR99

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Material

Steel comp 303se or steel comp 303

Thread Size

0.122 inches right internal

Cross-sectional Shape: Hexagon
Length: Between 0.495 inches and 0.505 inches
Material Specification: Astm a582/a assn standard single material response
Specification Data: 80205-nas1831 professional/industrial association standard
Style Designator: Left internal and right internal threads
Thread Direction: Left-hand left internal (includes thru thread)
Thread Length: 0.122 inches left internal (includes thru thread)
Thread Qty Per Inch (tpi): 40 left internal (includes thru thread)
Thread Series Designator: Unc (coarse thread) right internal
Width Across Flats: Between 0.184 inches and 0.192 inches
