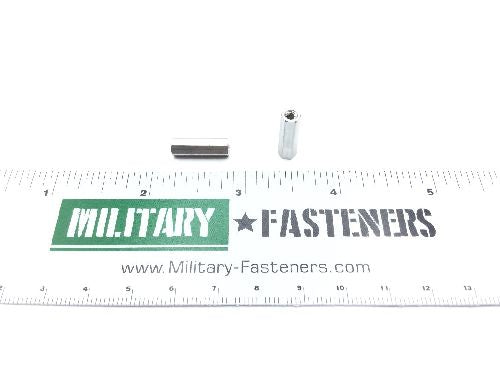

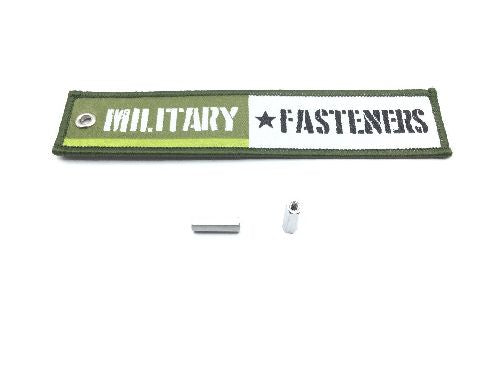

NAS1831C3B10 Electrical Post

Product Series: NAS
ECCN: EAR99

Price per Unit $9.01

Units per Pack 5

Price per Pack $45.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $45.05

Add item to quote

Material

Copper alloy standoff

Surface Treatment

Class 2 federal specification single treatment response standoff type 2 qq-p-416

Thread Class

2b left internal (includes thru thread)

Thread Size

0.1120 inches right internal

Cross-sectional Shape: Hexagon
Length: Between 0.6200 inches and 0.6300 inches
Material Specification: Comp. 11 federal specification single material response standoff qq-b-626
Style Designator: Left internal and right internal threads
Thread Direction: Right-hand left internal (includes thru thread)
Thread Length: 0.2500 inches right internal
Thread Qty Per Inch (tpi): 40 left internal (includes thru thread)
Thread Series Designator: Unc (coarse thread) right internal
Width Across Flats: Between 0.1820 inches and 0.1940 inches
