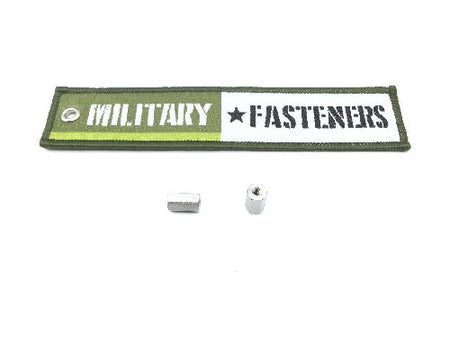

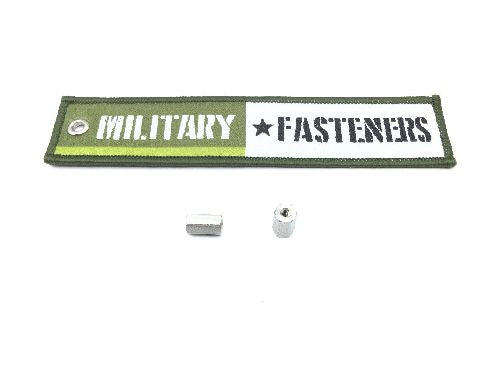

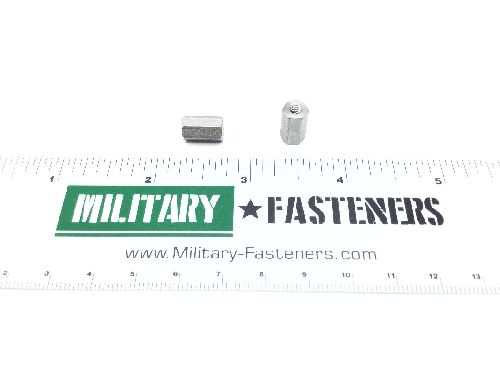

NAS1831C4B07 Electrical Post

Product Series: NAS
ECCN: EAR99

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 303 or steel comp 303se

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.112 inches

Bearing Surface Type: Flat
Material Specification: Astm a582 assn standard all material responses
Nut Height: Between 0.433 inches and 0.443 inches
Nut Style: Hexagon
Specification Data: 80205-nas1831 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Width Across Flats: Between 0.246 inches and 0.254 inches
