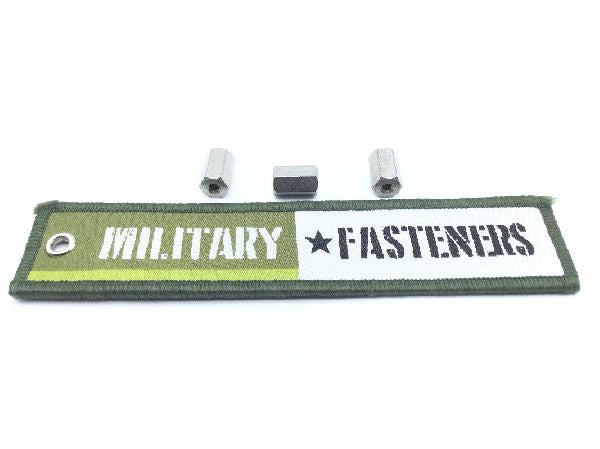

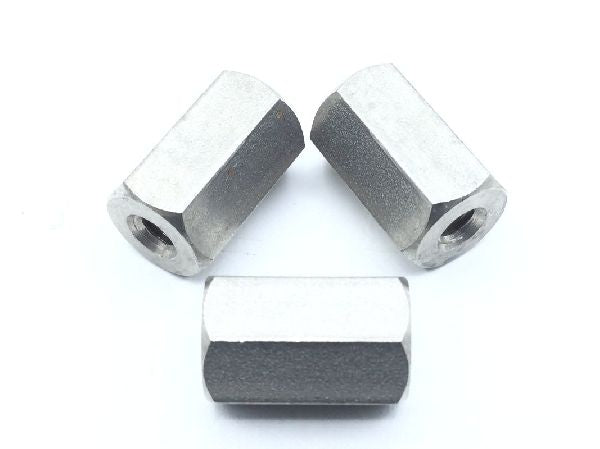

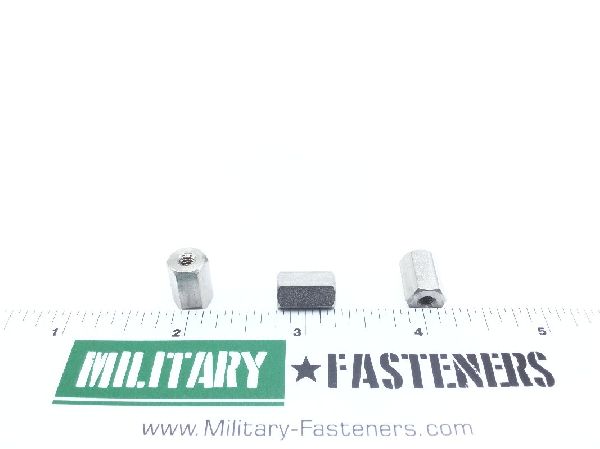

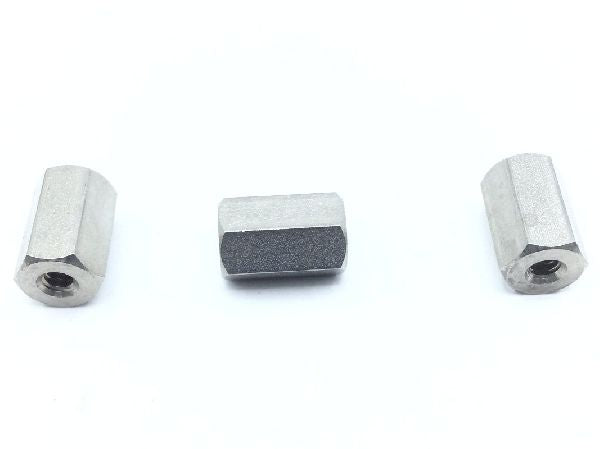

NAS1831C5C08 Electrical Post

Product Series: NAS
ECCN: 9A991

Price per Unit $20.79

Units per Pack 5

Price per Pack $103.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $103.95

Add item to quote

Material

Steel comp 303 or steel comp 303se

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.138 inches

Material Specification: Astm a582 assn standard all material responses
Nut Height: Between 0.495 inches and 0.505 inches
Nut Style: Hexagon
Specification Data: 80205-nas1831 professional/industrial association standard
Surface Type: Flat
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.309 inches and 0.317 inches
