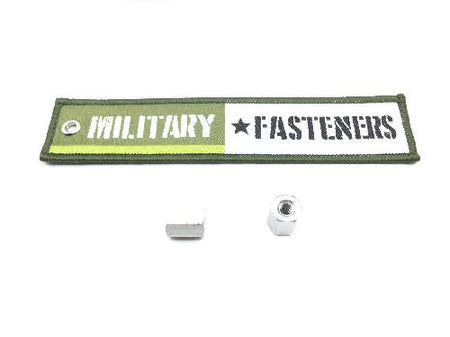

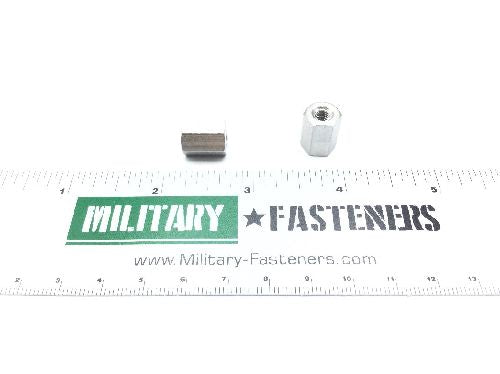

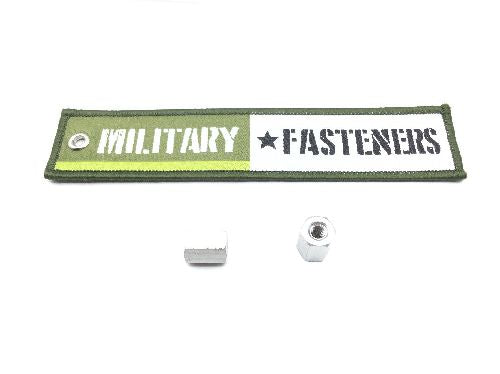

NAS1831C6E08 Electrical Post

Product Series: NAS
ECCN: 9A991

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Bearing Surface Type: Flat
Material Specification: Astm a582 assn standard all material responses
Nut Height: Between 0.495 inches and 0.505 inches
Nut Style: Hexagon
Specification Data: 80205-nas1831 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.371 inches and 0.379 inches
