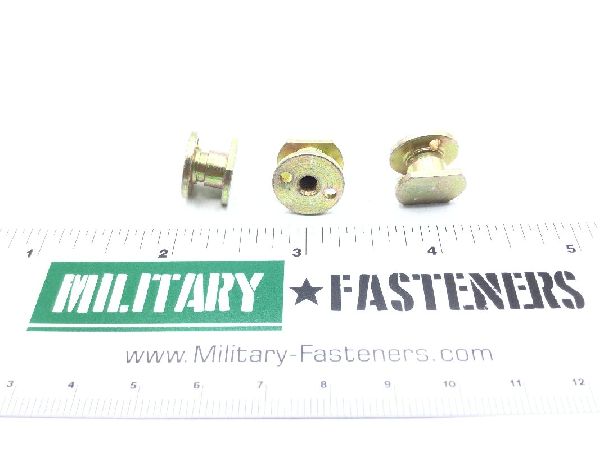

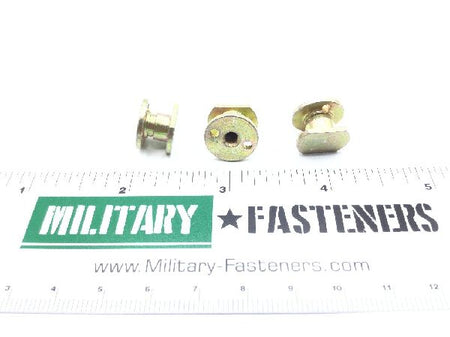

NAS1832-08-3 Screw Thread Insert

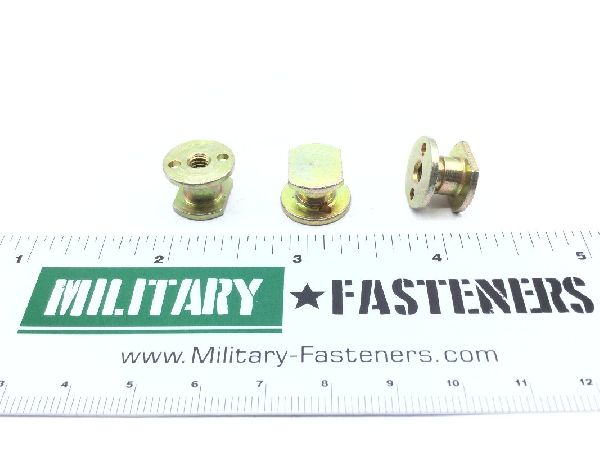

NAS1832-08-3 Screw Thread Insert (2)

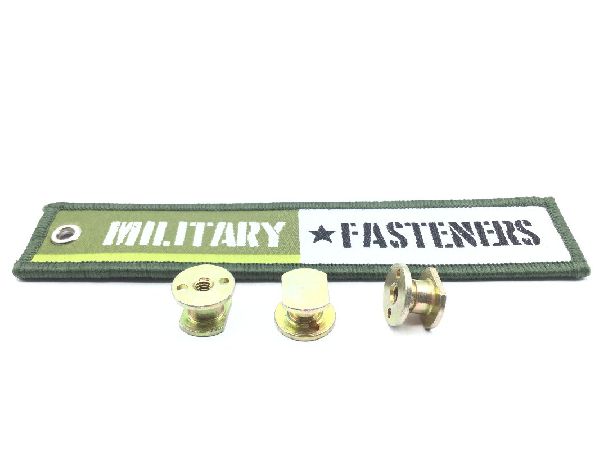

NAS1832-08-3 Screw Thread Insert (3)

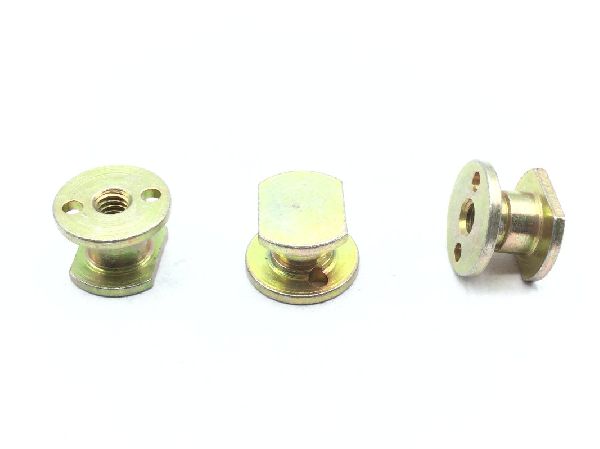

NAS1832-08-3 Screw Thread Insert (4)

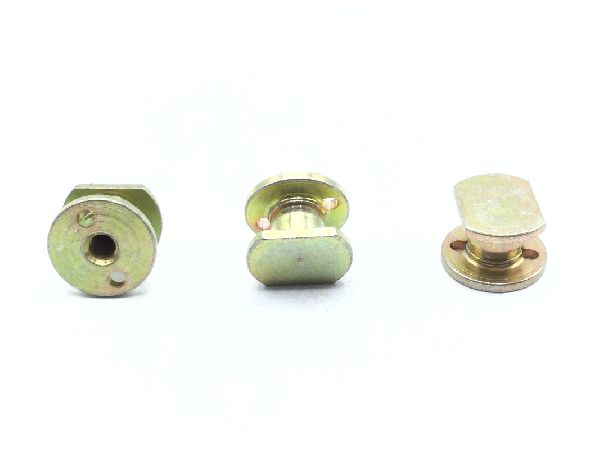

NAS1832-08-3 Screw Thread Insert (5)

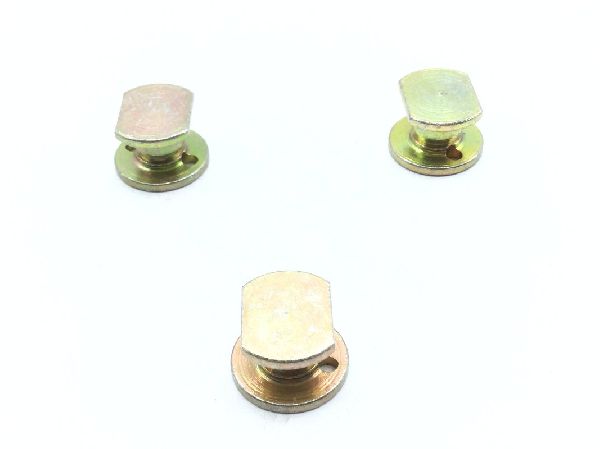

NAS1832-08-3 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1832-08-3 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Overall Length

0.375 inches

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Features: Potting hole or potting slot
Features Provided: Potting hole or potting slot
Flange Thickness: 0.060 inches
Hole Type: Threaded
Insert Style: Protruding flange
Material Specification: 66 federal standard all material responses
Specification Data: 80205-nas1832 professional/industrial association standard
Thread Size And Series/type Designator: Unjc 0.164-32
Flange Diameter: Between 0.550 inches and 0.560 inches
