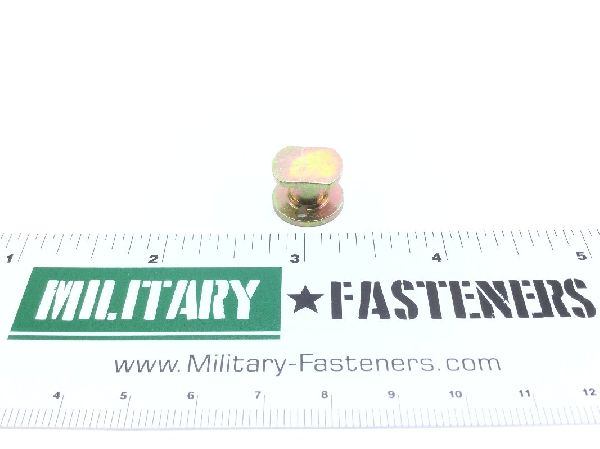

NAS1832-3-3 Screw Thread Insert

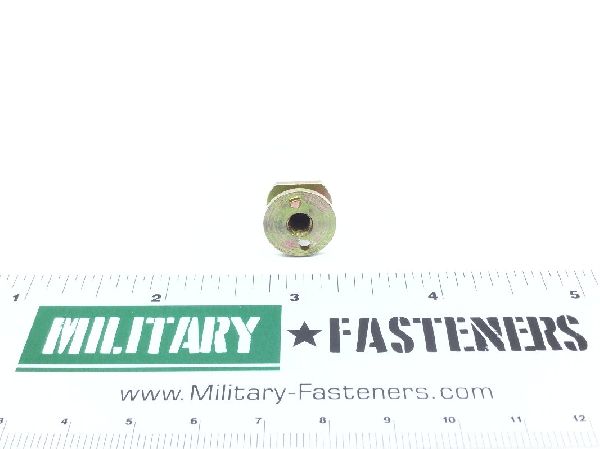

NAS1832-3-3 Screw Thread Insert (2)

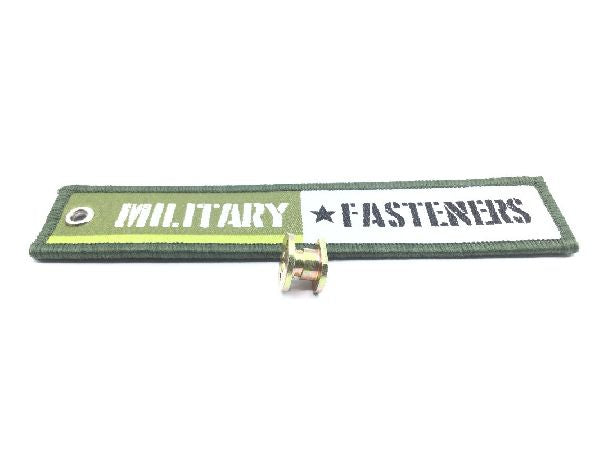

NAS1832-3-3 Screw Thread Insert (3)

NAS1832-3-3 Screw Thread Insert (4)

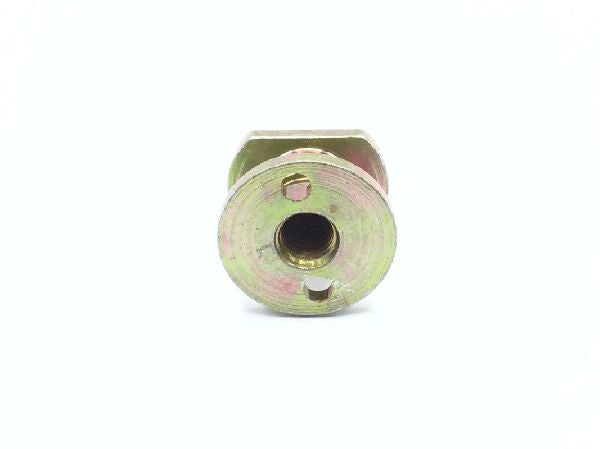

NAS1832-3-3 Screw Thread Insert (5)

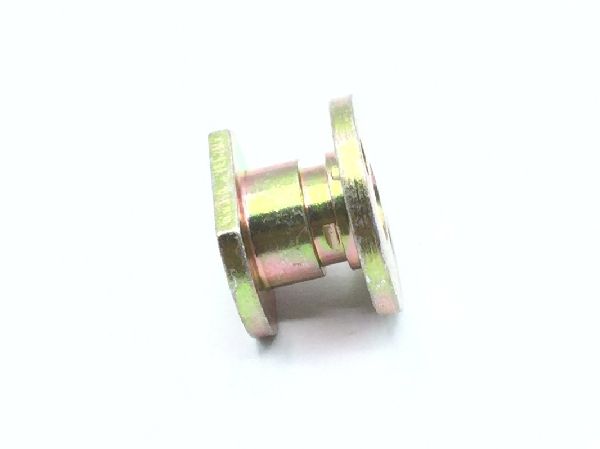

NAS1832-3-3 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1832-3-3 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $3.15

Units per Pack 10

Price per Pack $31.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $31.50

Add item to quote

Material

Steel

Overall Length

0.375 inches

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Features: Potting hole or potting slot
Features Provided: Potting hole or potting slot
Flange Thickness: 0.060 inches
Hole Type: Threaded
Insert Style: Protruding flange
Material Specification: 66 federal standard all material responses
Specification Data: 80205-nas1832 professional/industrial association standard
Thread Size And Series/type Designator: 0.190-32 unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.550 inches and 0.560 inches
