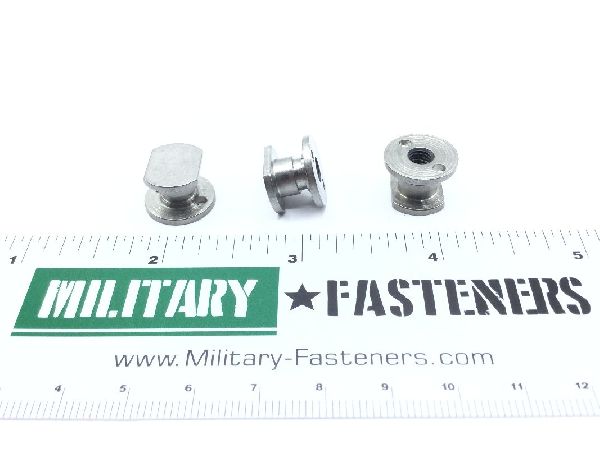

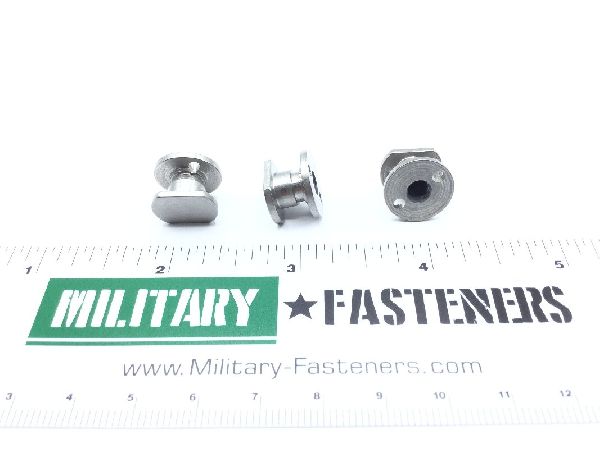

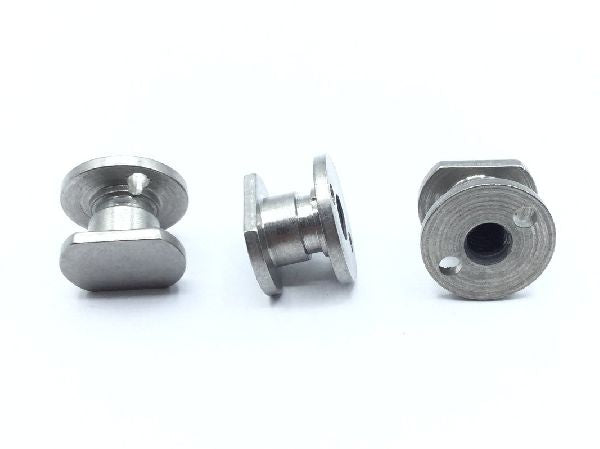

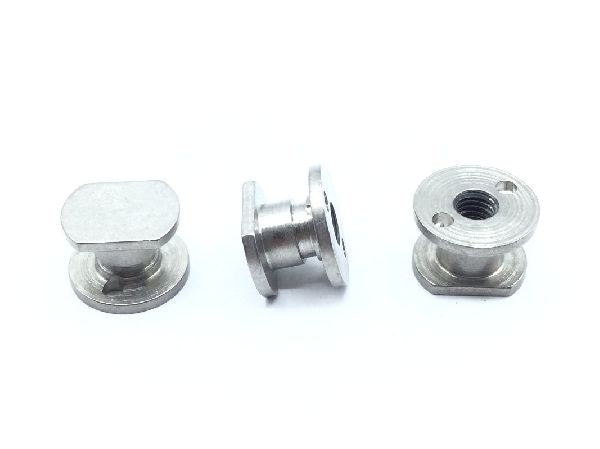

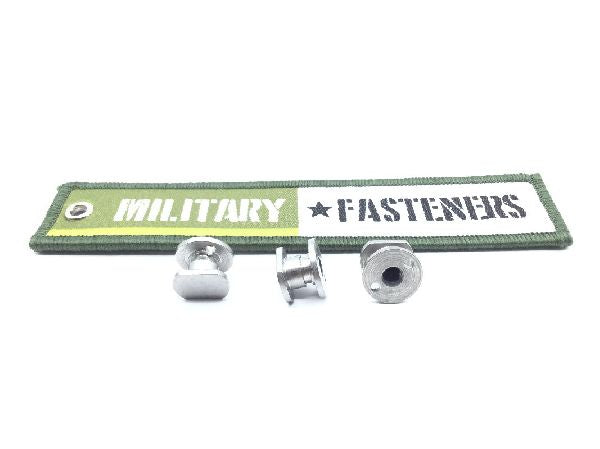

NAS1832C3-3M Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Overall Length

0.375 inches

Surface Treatment

Cl 2 federal specification 3rd treatment response type 2 qq-p-35 federal specification 1st treatment response or ams 2410 assn standard 2nd treatment response or qq-p-416

Features: Potting hole or potting slot
Features Provided: Potting hole or potting slot
Flange Thickness: 0.060 inches
Hole Type: Threaded
Iii Material: Steel comp 303
Insert Style: Protruding flange
Material Specification: Astm a582 assn standard single material response
Special Features: Solid film lubricant on inside of insert only
Specification Data: 80205-nas1832 professional/industrial association standard
Thread Size And Series/type Designator: 0.190-32 unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.550 inches and 0.560 inches
