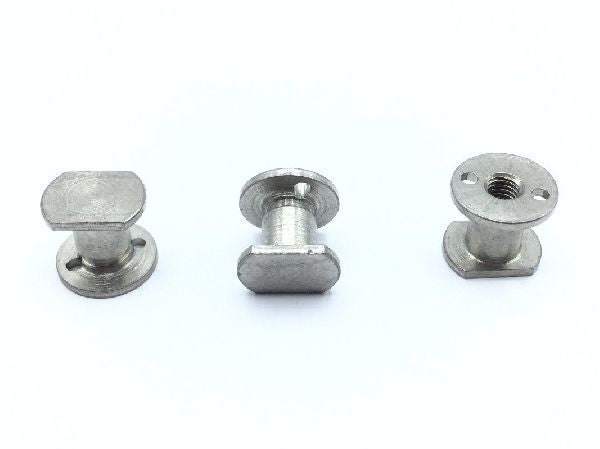

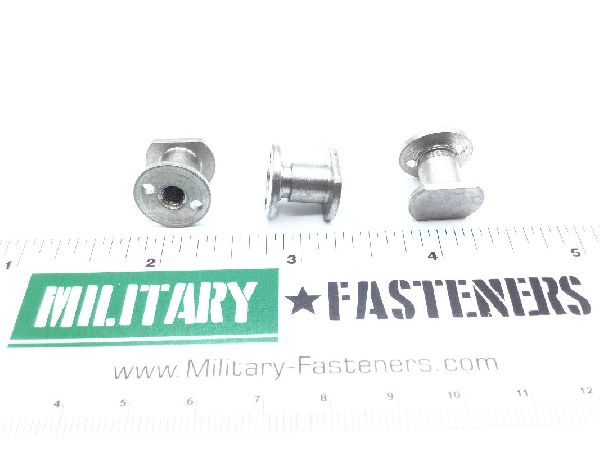

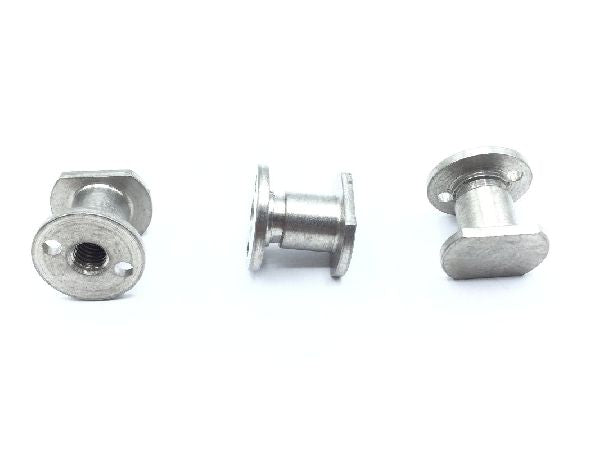

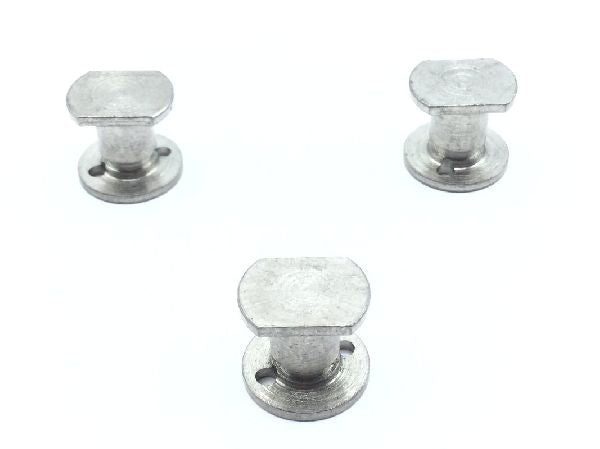

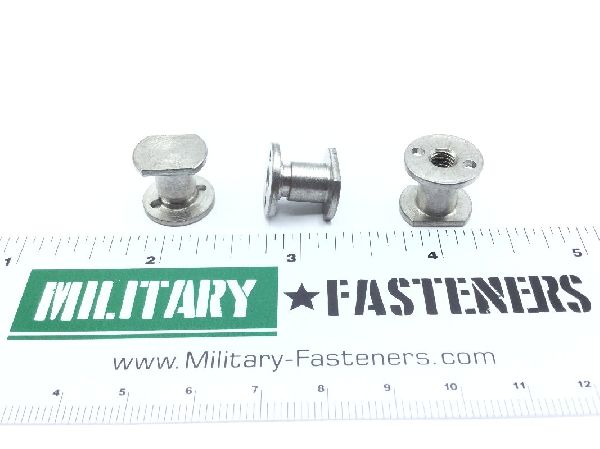

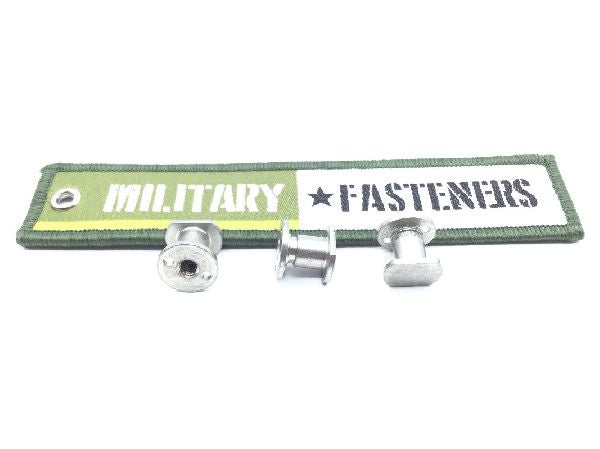

NAS1832C3-4 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Overall Length

0.5 inches

Surface Treatment

Qq-p-35 federal specification single treatment response

Features: Potting hole or potting slot
Features Provided: Potting hole or potting slot
Flange Thickness: 0.06 inches
Hole Type: Threaded
Iii Material: Steel comp 303
Insert Style: Protruding flange
Material Specification: Astm a582 assn standard single material response
Specification Data: 80205-nas1832 professional/industrial association standard
Thread Size And Series/type Designator: 0.190-32 unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.55 inches and 0.56 inches
