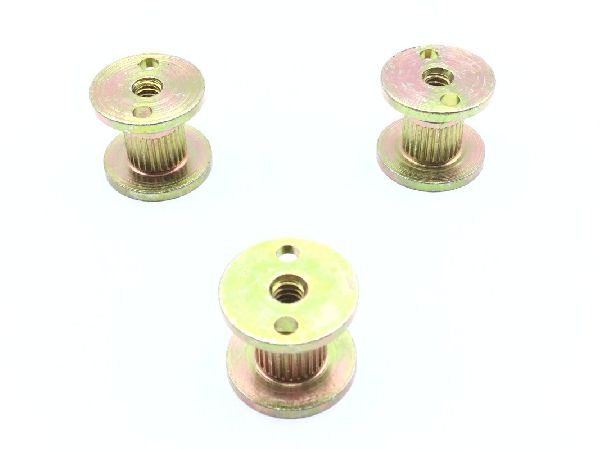

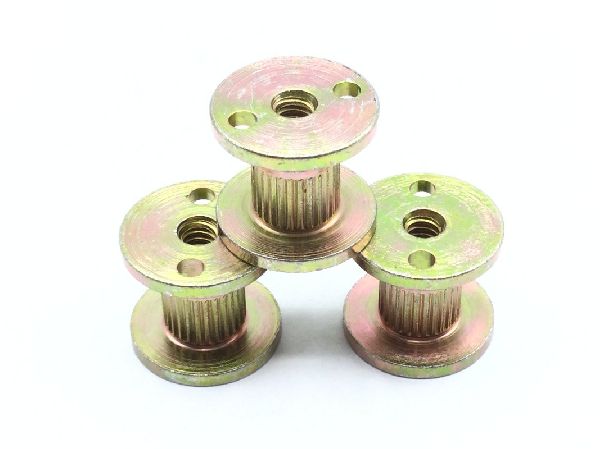

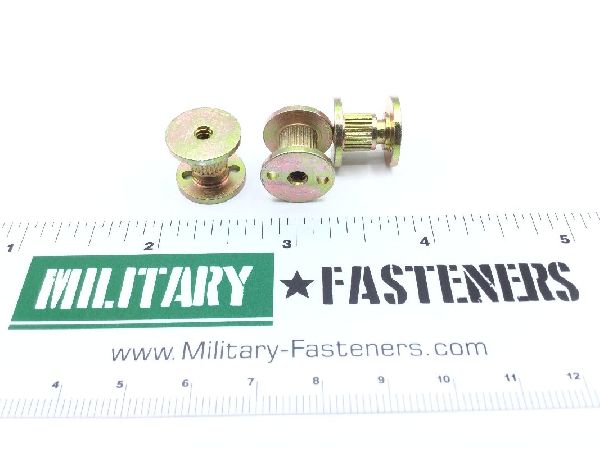

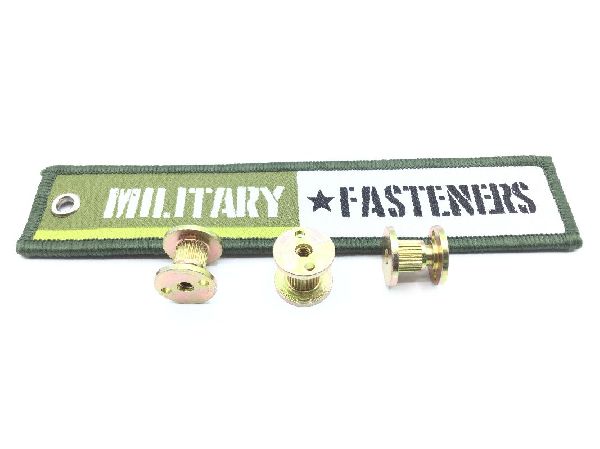

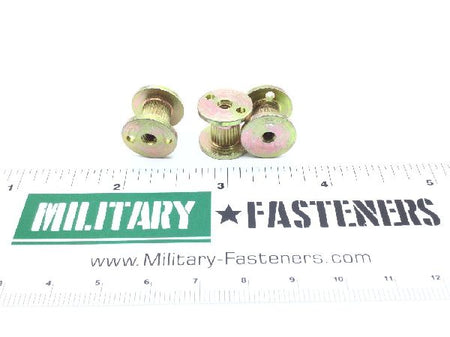

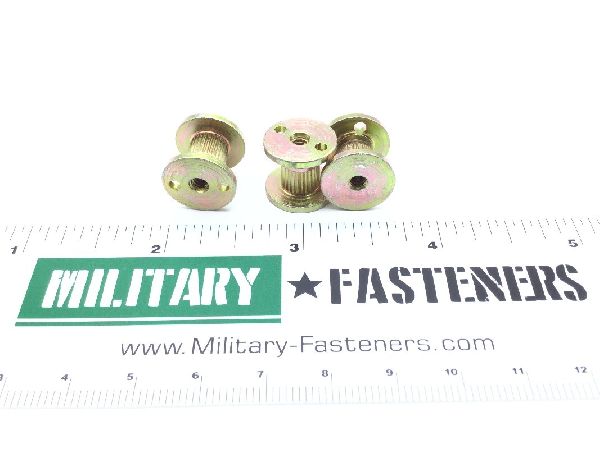

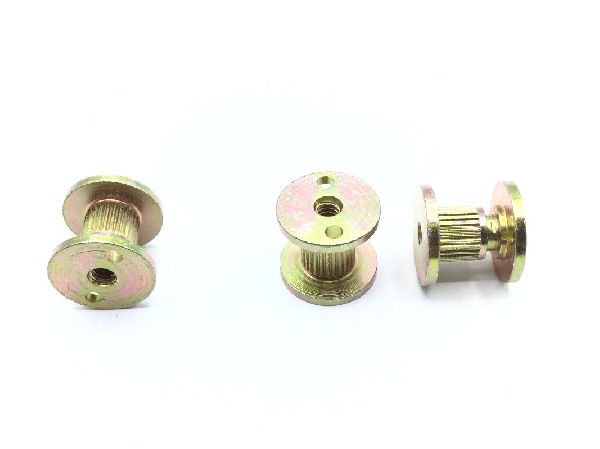

NAS1833-06-500 Screw Thread Insert

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Qq-p-416c federal specification single treatment response
Thread Class
3b
Thread Size
0.138 inches
End Application
New man mh-60
Flange Thickness
0.060 inches
Insert Size
0.300 in od
Length
0.500 inches
Material Specification
Astm-a108-2003 assn standard single material response
Mounting Facility Quantity
2
Second Flange Thickness
0.060 inches
Style Designator
Flange
Thread Direction
Right-hand
Thread Length
0.500 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unjc
Flange Diameter
Between 0.550 inches and 0.560 inches
