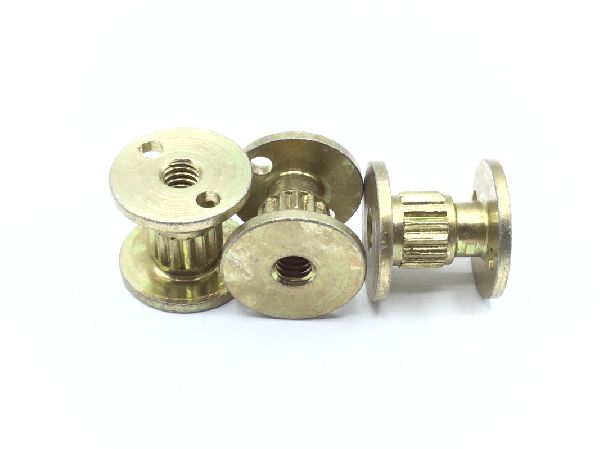

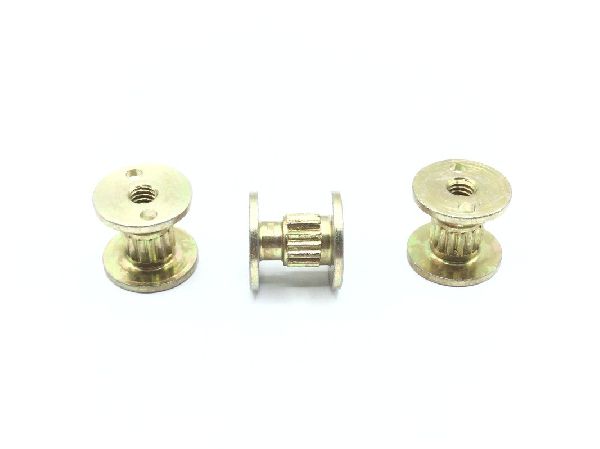

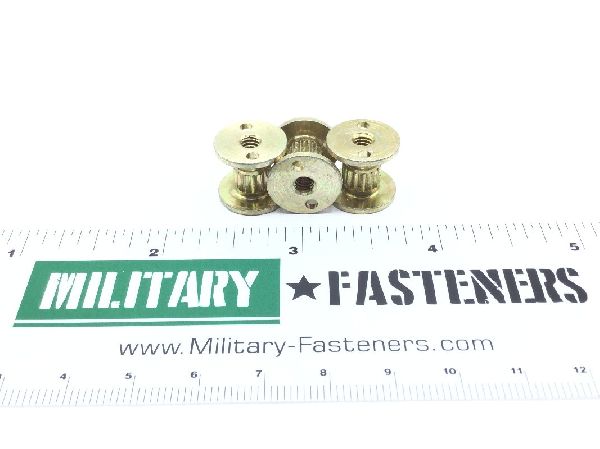

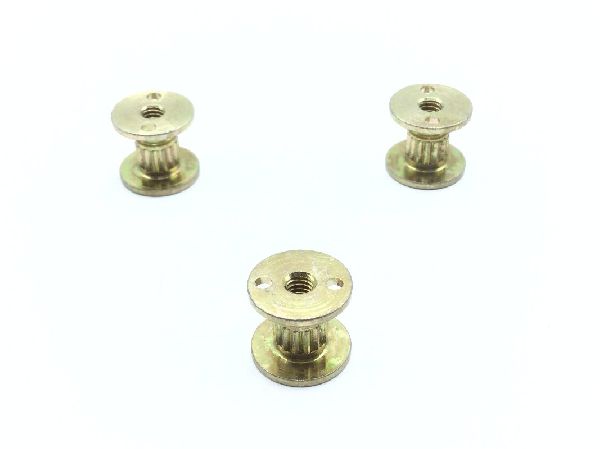

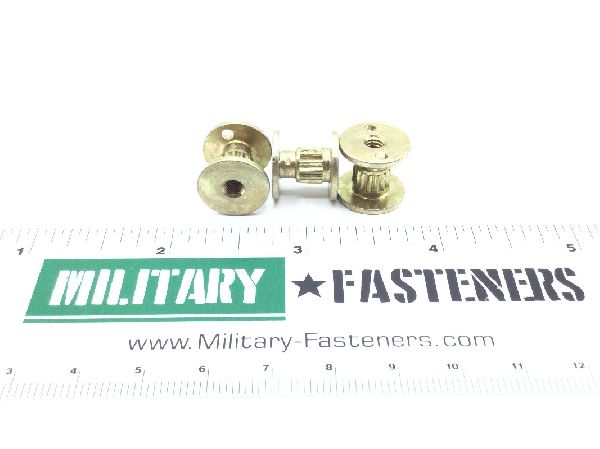

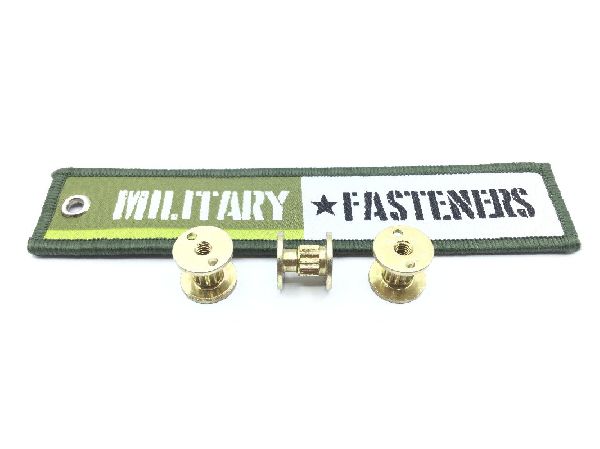

NAS1833-08-500 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Overall Length

0.500 inches

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Features: Potting hole or potting slot
Features Provided: Potting hole or potting slot
Flange Thickness: 0.060 inches
Hole Type: Threaded
Iii Material: Steel comp 1006 or steel comp 1008 or steel comp 1010 or steel comp 1012 or steel comp 1015 or steel comp 1016 or steel comp 1017 or steel comp 1018 or steel comp 1019 or steel comp 1020 or steel comp 1021 or steel comp 1022 or steel com
Insert Style: Protruding flange
Material Specification: 66 assn standard all material responses
Specification Data: 80205-nas1833 professional/industrial association standard
Thread Size And Series/type Designator: 0.164-32 unjc
Flange Diameter: Between 0.550 inches and 0.560 inches
