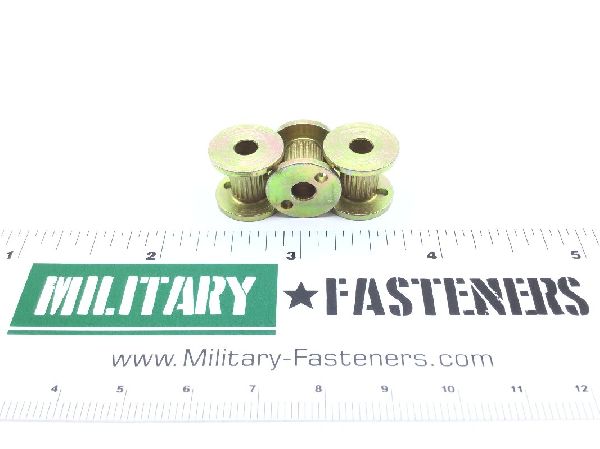

NAS1834-08-500 Screw Thread Insert

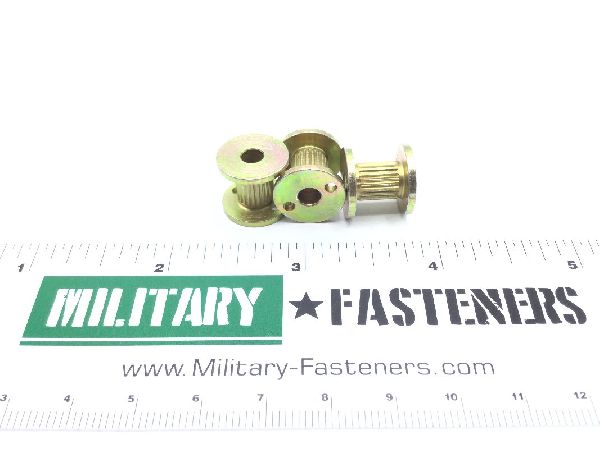

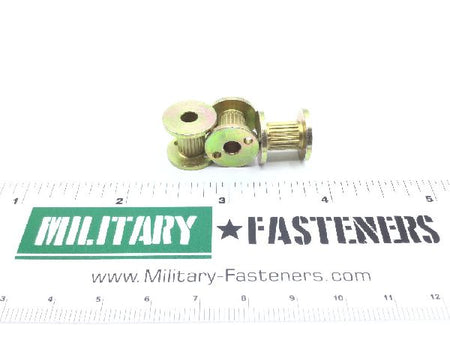

NAS1834-08-500 Screw Thread Insert (2)

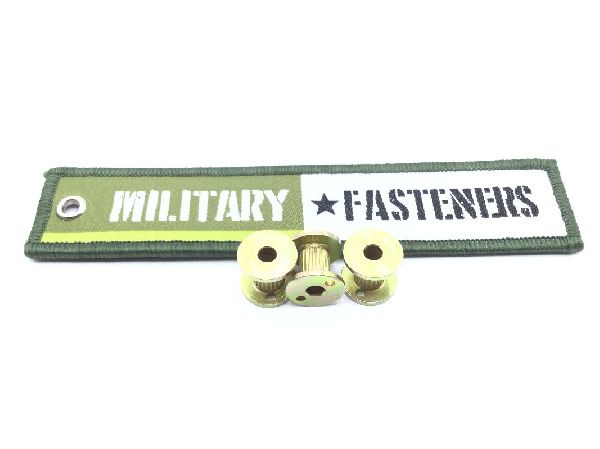

NAS1834-08-500 Screw Thread Insert (3)

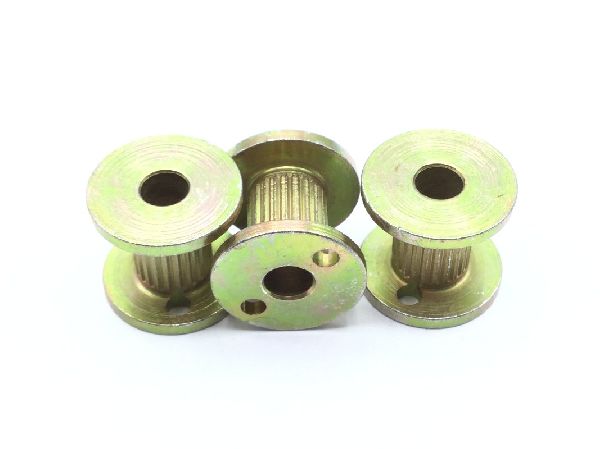

NAS1834-08-500 Screw Thread Insert (4)

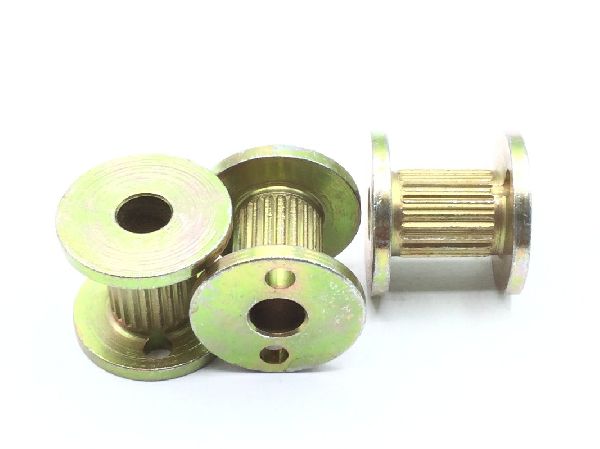

NAS1834-08-500 Screw Thread Insert (5)

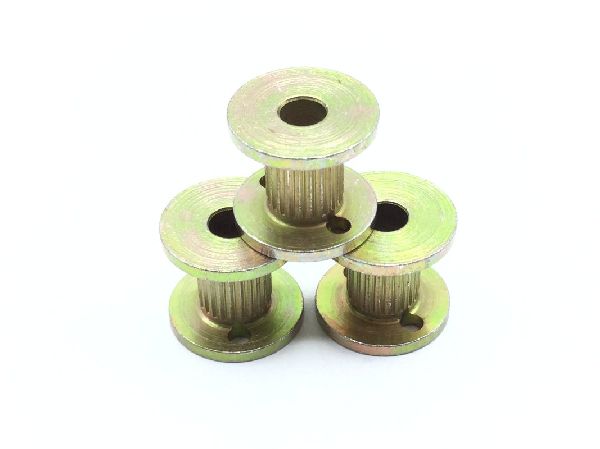

NAS1834-08-500 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1834-08-500 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Overall Length

0.50 inches

Surface Treatment

Class 2 federal specification single treatment response tyii qq-p-416

End Application: Ch-53gs helicopter
Features: Potting hole
Features Provided: Potting hole
Hole Type: Plain
Iii Material: Steel
Insert Style: Protruding flange
Material Accommodated Thickness: Between 0.561 inches and 0.566 inches
Material Specification: Fed66 federal standard single material response
Shoulder Diameter: 0.30 inches
Flange Diameter: 0.56 inches
Hole Diameter: Between 0.168 inches and 0.174 inches
