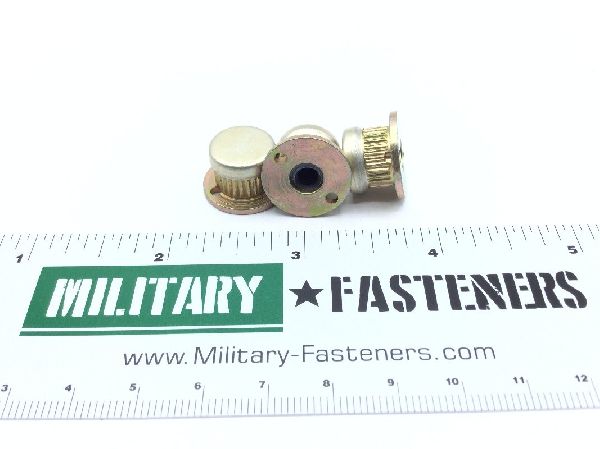

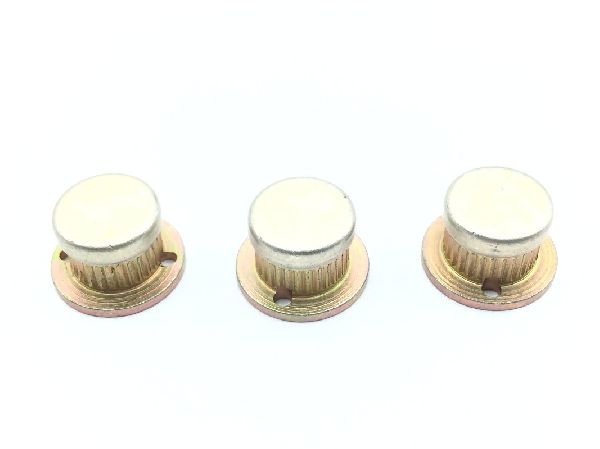

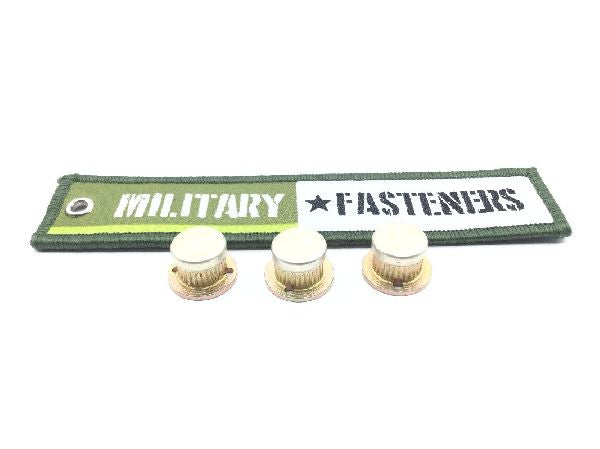

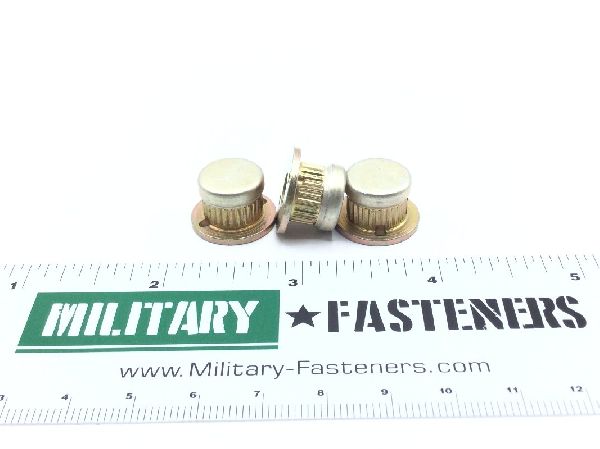

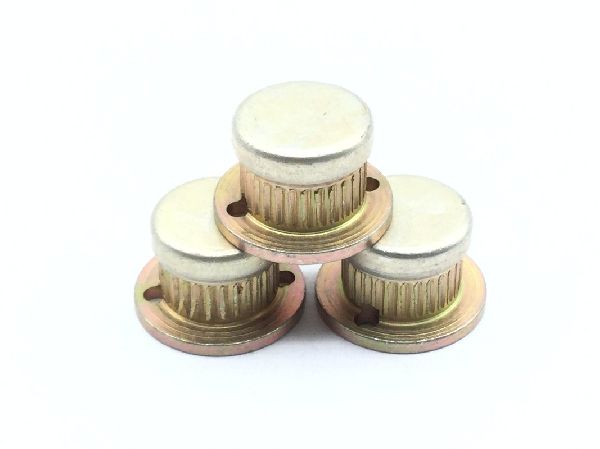

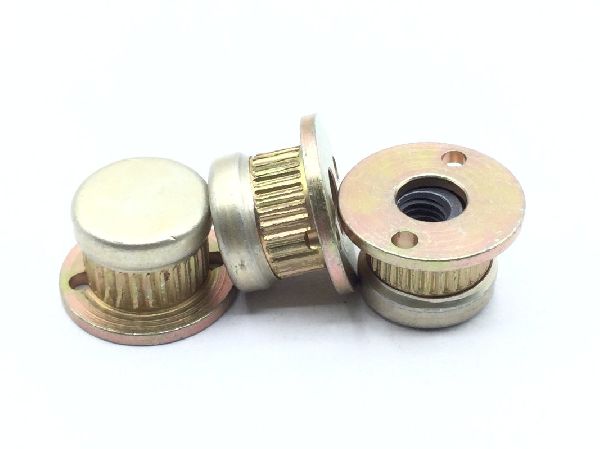

NAS1835-3M Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $7.30

Units per Pack 5

Price per Pack $36.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $36.50

Add item to quote

Overall Length

0.430 inches

Surface Treatment

Cl 2 federal specification single treatment response nut type 2 qq-p-416

Body Diameter: 0.190 inches
Features: Potting hole or potting slot
Features Provided: Potting hole or potting slot
Hole Type: Threaded
Iii Material: Steel comp 1006 or steel comp 1008 or steel comp 1010 or steel comp 1012 or steel comp 1015 or steel comp 1016 or steel comp 1017 or steel comp 1018 or steel comp 1019 or steel comp 1020 or steel comp 1021 or steel comp 1022 or steel com
Insert Style: Protruding flange
Material Specification: 66 federal standard all material responses nut
Shoulder Diameter: 0.535 inches
Special Features: Solid film lubricant on nut
Specification Data: 80205-nas1835 professional/industrial association standard
Thread Size And Series/type Designator: 0.190-32 unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.675 inches and 0.685 inches
