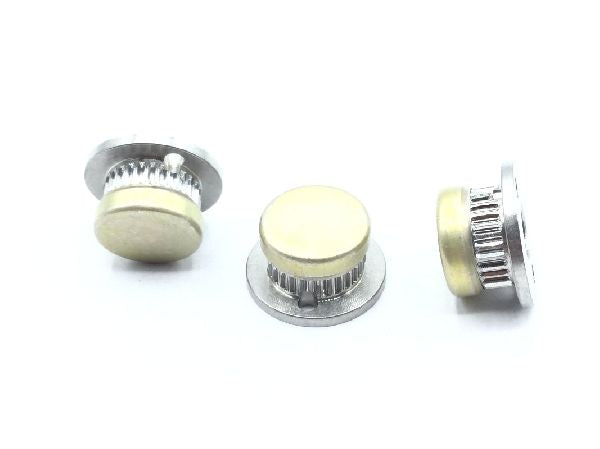

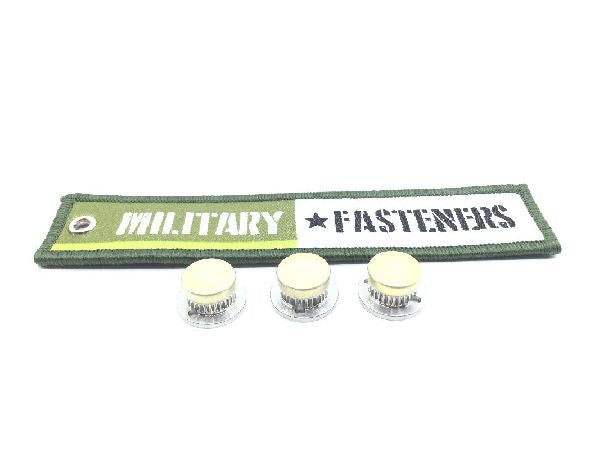

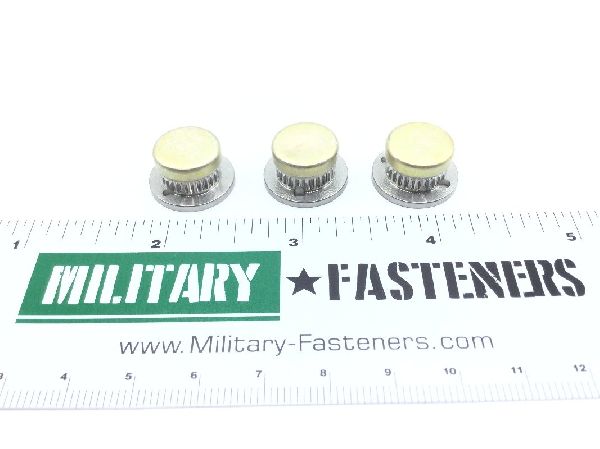

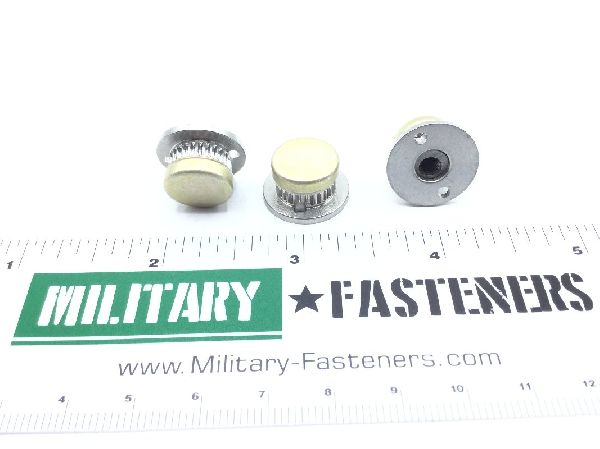

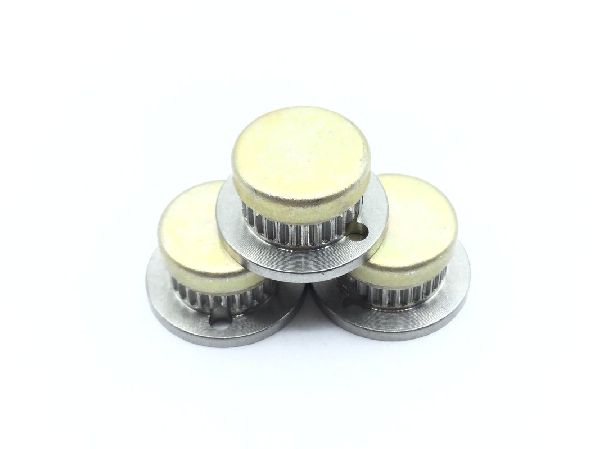

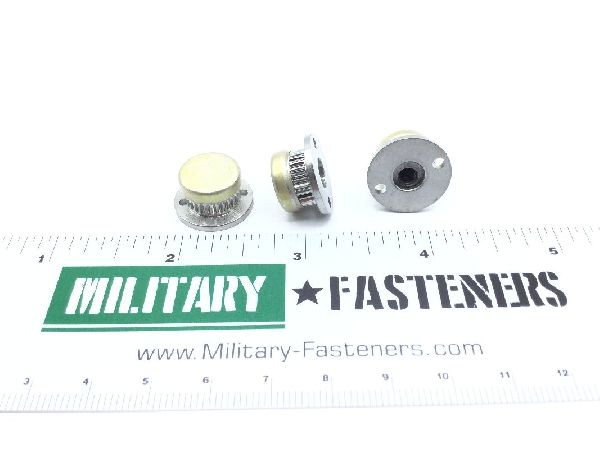

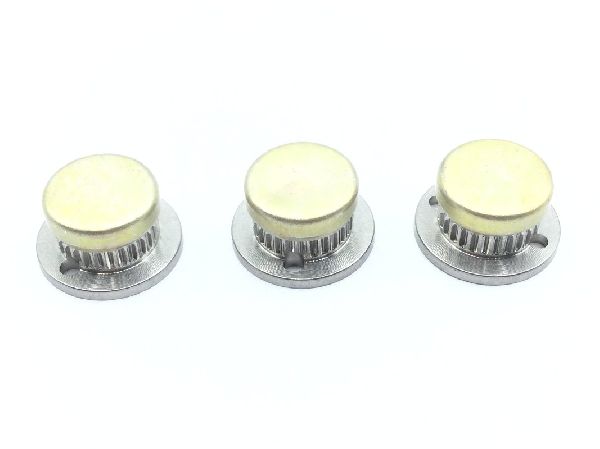

NAS1835C08M Panel Fastener Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $14.21

Units per Pack 5

Price per Pack $71.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $71.05

Add item to quote

Overall Length

0.370 inches

Surface Treatment

Cl 2 federal specification 3rd treatment response nut type 2 qq-p-35 federal specification 1st treatment response nut or ams 2410 assn standard 2nd treatment response nut or qq-p-416

Body Diameter: 0.500 inches
Features: Potting hole or potting slot
Features Provided: Potting hole or potting slot
Hole Type: Threaded
Iii Material: Steel comp 303 nut
Insert Style: Protruding flange
Material Specification: Astm a582 assn standard single material response housing
Shoulder Diameter: 0.535 inches
Special Features: Solid film lubricant on nut
Specification Data: 80205-nas1835 professional/industrial association standard
Thread Size And Series/type Designator: 0.164-32 unc (coarse thread)
Flange Diameter: Between 0.675 inches and 0.685 inches
