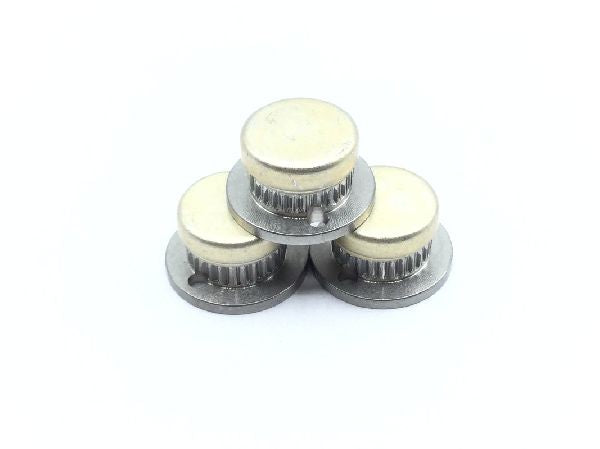

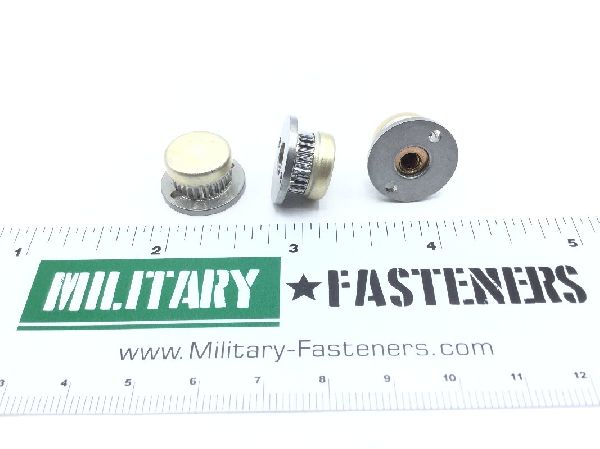

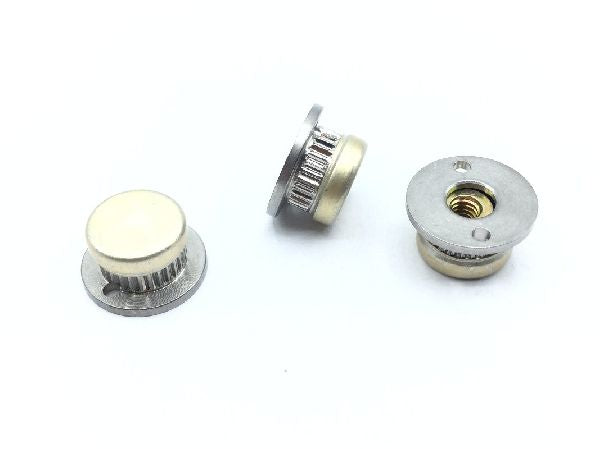

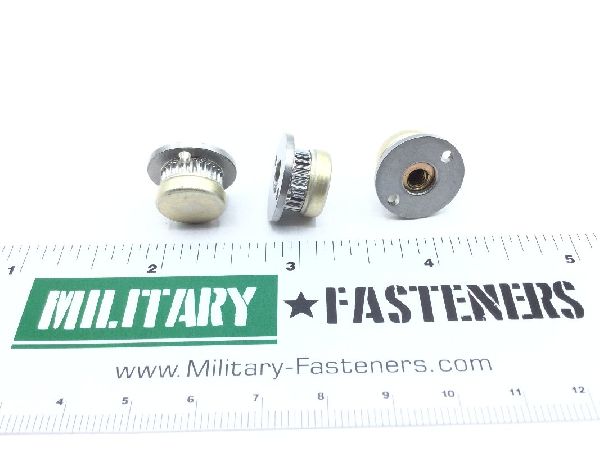

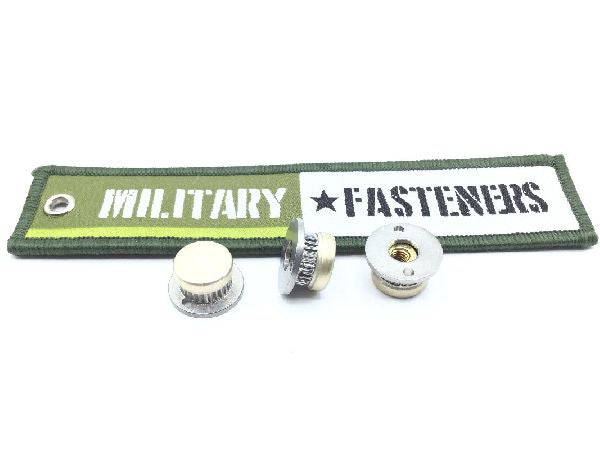

NAS1835C08P Panel Fastener Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7326.90.8695

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Overall Length

0.370 inches

Surface Treatment

Cl 2 federal specification single treatment response nut type 2 type 1 military specification single treatment response capqq-p-35 federal specification single treatment response housingqq-p-416 mil-a-8625

Body Diameter: 0.164 inches
Features: Potting hole and potting slot
Features Provided: Potting hole and potting slot
Hole Type: Threaded
Iii Material: Aluminum alloy capsteel comp 303 housingsteel comp 303 nut
Insert Style: Protruding flange
Material Specification: Astm a582 assn standard single material response housingastm a582 assn standard single material response nut
Shoulder Diameter: 0.535 inches
Thread Size And Series/type Designator: 0.164-32 unjc
Flange Diameter: Between 0.675 inches and 0.685 inches
