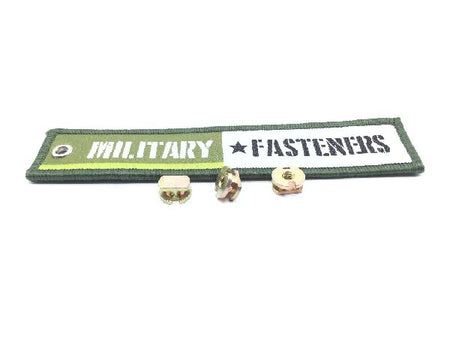

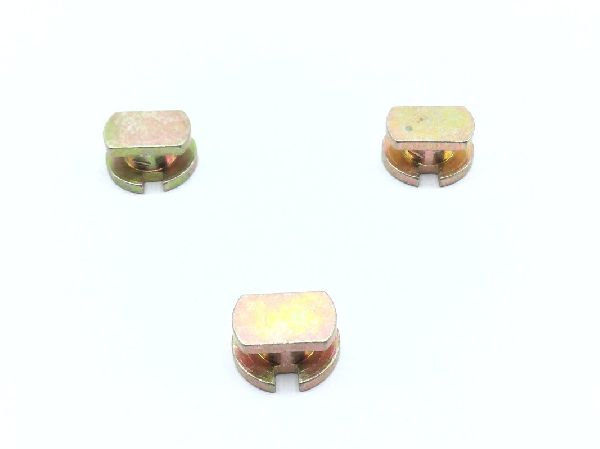

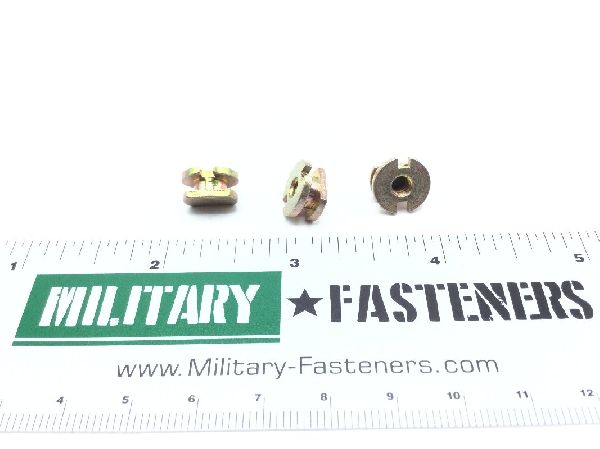

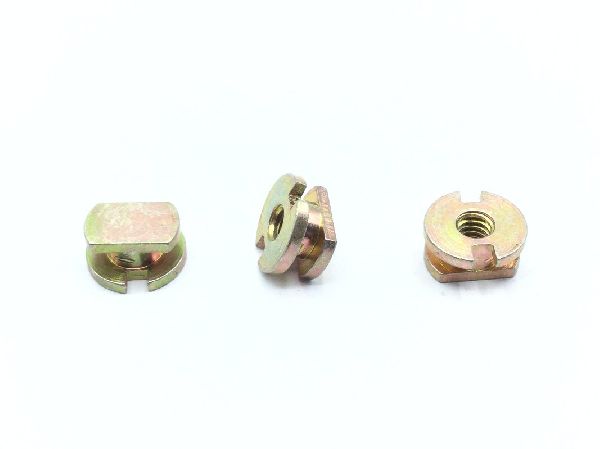

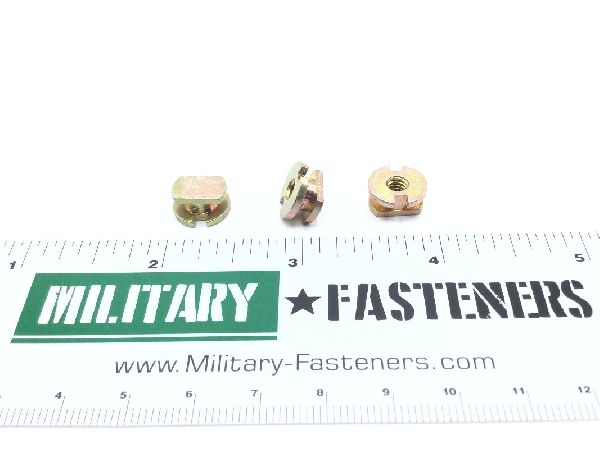

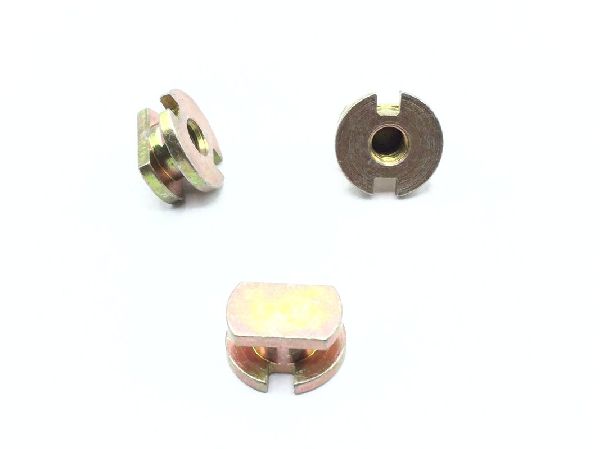

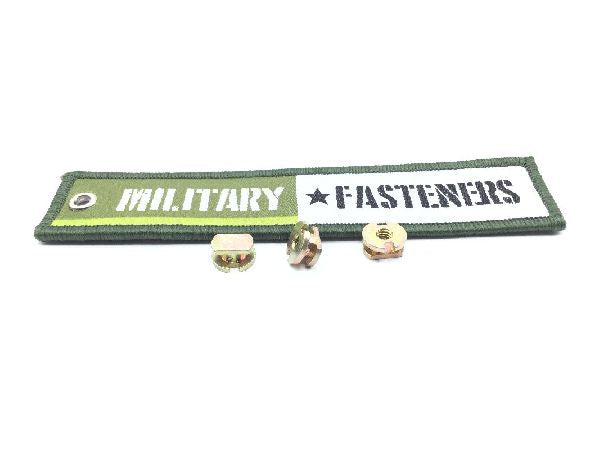

NAS1836-08-07 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.95

Units per Pack 25

Price per Pack $48.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.75

Add item to quote

Material

Steel

Surface Treatment

class 2 assn standard single treatment response type ii ams qq-p-416

Thread Class

Thread Size

0.164 inches

Flange Thickness: 0.060 inches
Insert Size: 0.25
Length: 0.217 inches
Material Specification: Astm a108 assn standard single material response or astm a576 assn standard single material response or 66 federal standard single material response
Part Name Assigned By Controlling Agency: sandwich panel lightweight self-locking blind threaded molded in insert
Second Flange Thickness: 0.060 inches
Style Designator: Flange
Thread Direction: Right-hand
Thread Length: 0.187 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Across Flats: 0.260 inches
Flange Diameter: 0.450 inches
