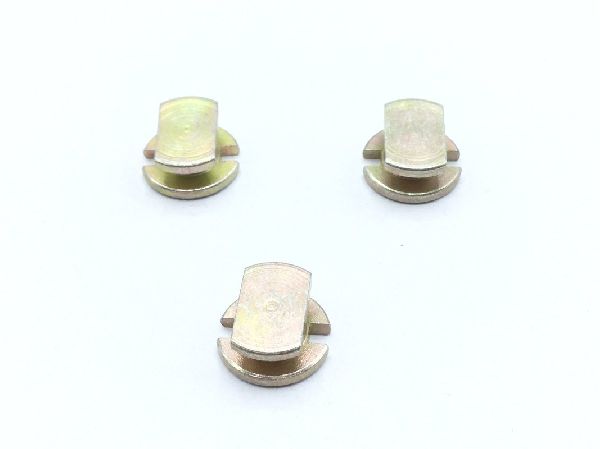

NAS1836-3-07 Screw Thread Insert

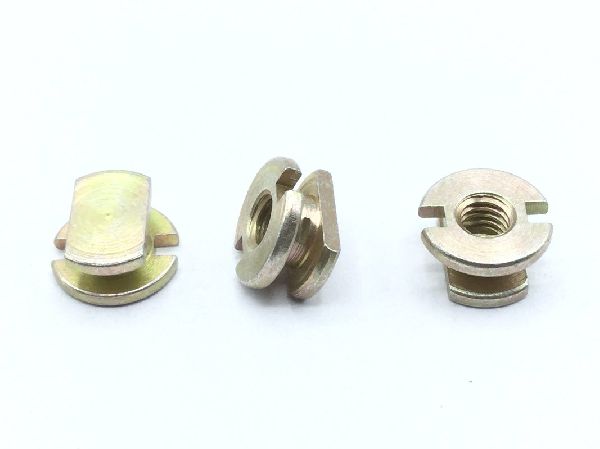

NAS1836-3-07 Screw Thread Insert (2)

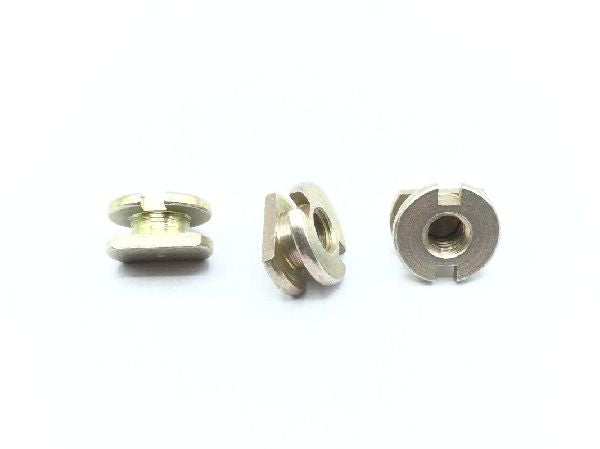

NAS1836-3-07 Screw Thread Insert (3)

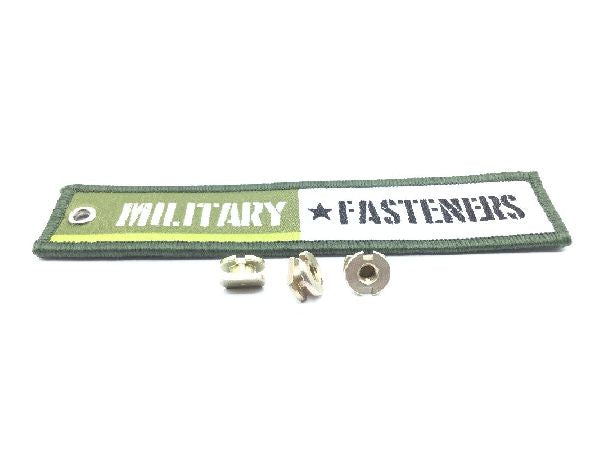

NAS1836-3-07 Screw Thread Insert (4)

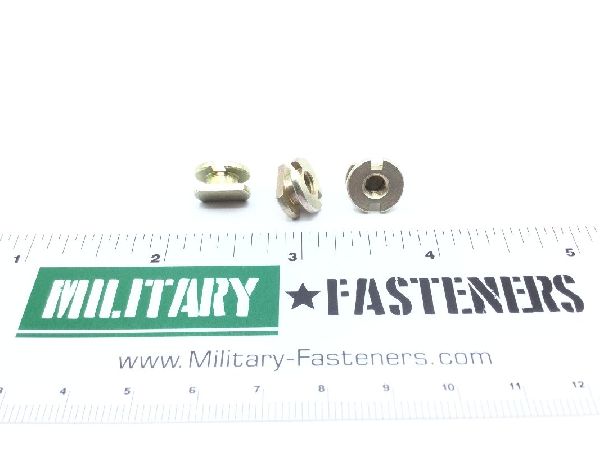

NAS1836-3-07 Screw Thread Insert (5)

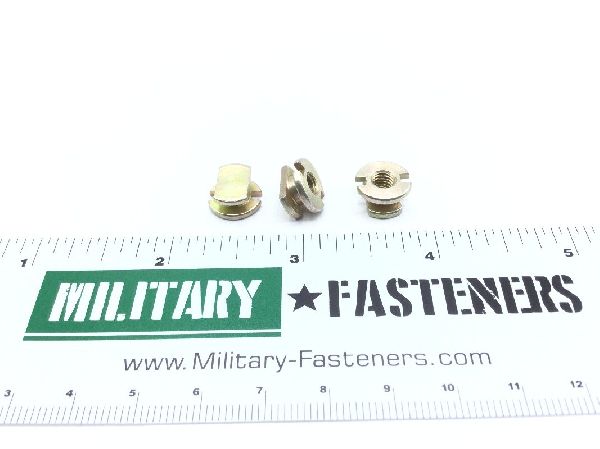

NAS1836-3-07 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1836-3-07 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Thread Class

3b

Thread Size

0.190 inches

End Application: New man mh-60
Flange Thickness: 0.060 inches
Insert Size: 0.250 in. od
Length: 0.217 inches
Second Flange Thickness: 0.060 inches
Style Designator: Flange
Thread Direction: Right-hand
Thread Length: 0.187 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.441 inches and 0.451 inches
