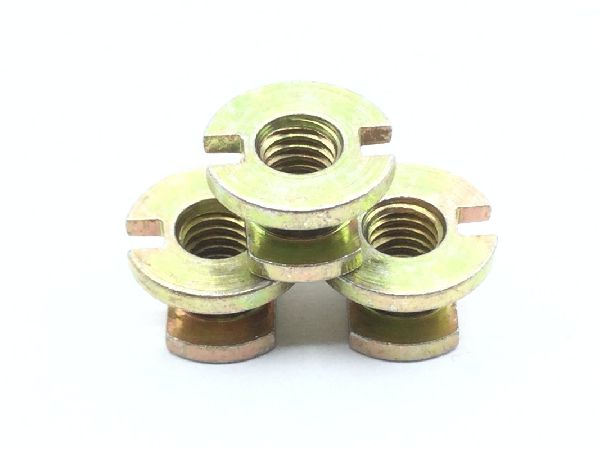

NAS1836-3-08 Screw Thread Insert

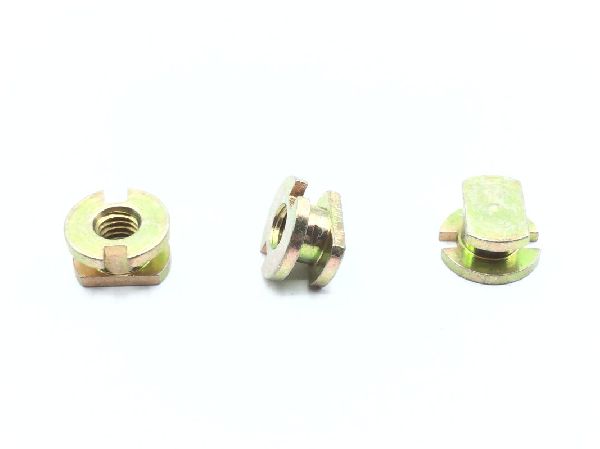

NAS1836-3-08 Screw Thread Insert (2)

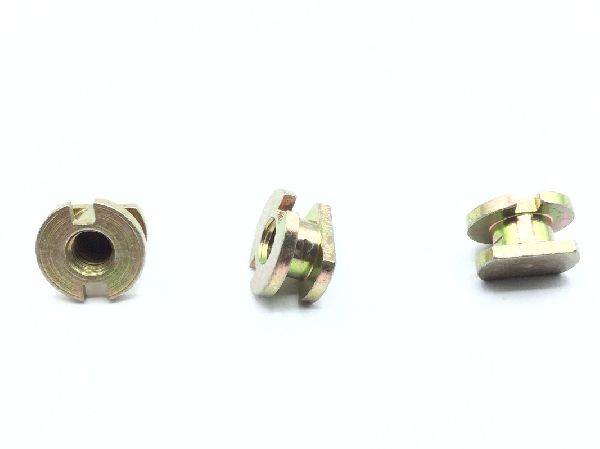

NAS1836-3-08 Screw Thread Insert (3)

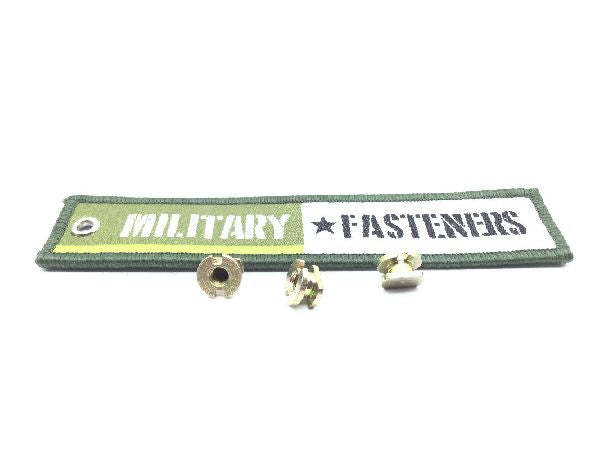

NAS1836-3-08 Screw Thread Insert (4)

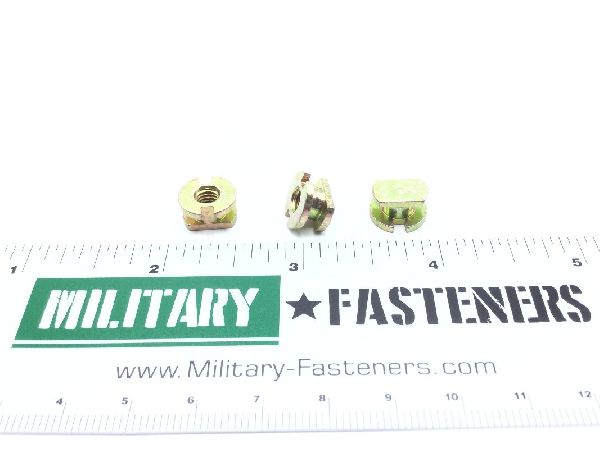

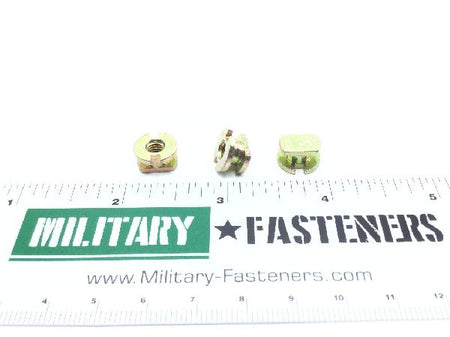

NAS1836-3-08 Screw Thread Insert (5)

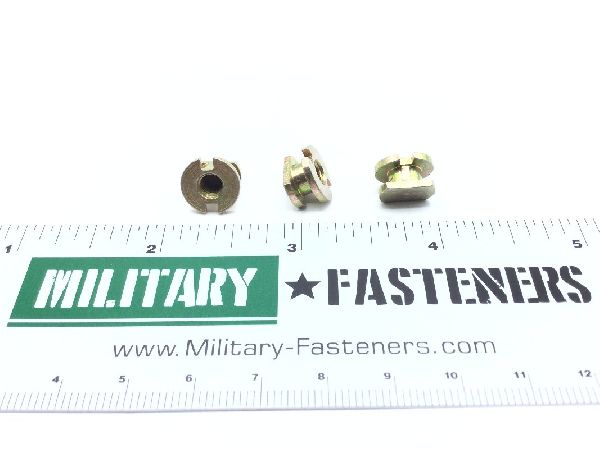

NAS1836-3-08 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1836-3-08 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.58

Units per Pack 25

Price per Pack $39.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $39.50

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification all treatment responses

Flange Thickness: 0.060 inches
Hole Type: Threaded
Insert Style: Protruding flange
Material Specification: 66 federal standard single material response
Sleeve Diameter: 0.260 inches
Special Features: Pin length is 0.250 inch
Thread Size And Series/type Designator: 0.190-32 unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.441 inches and 0.451 inches
