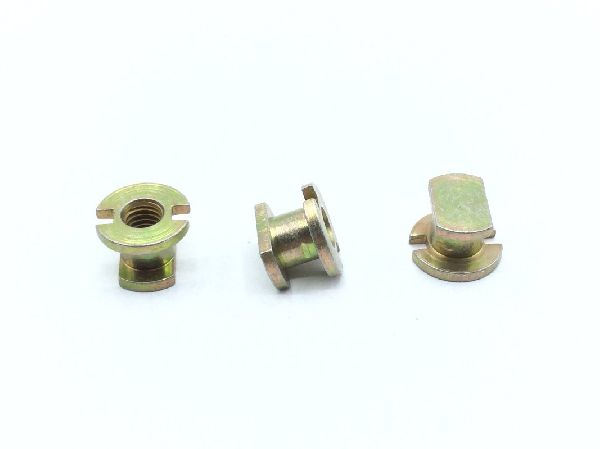

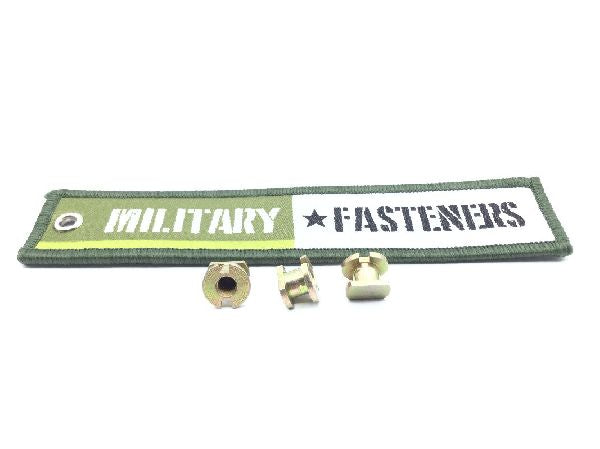

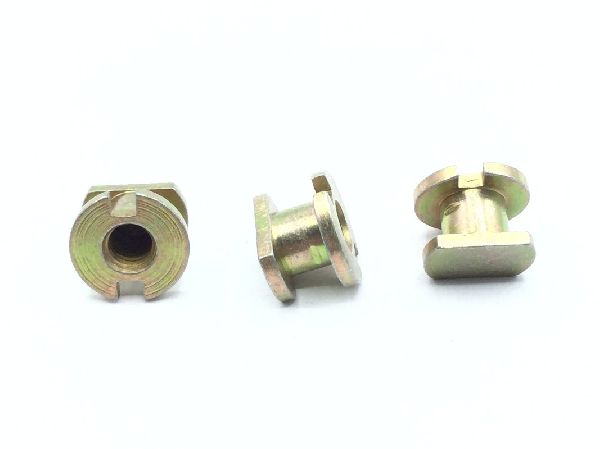

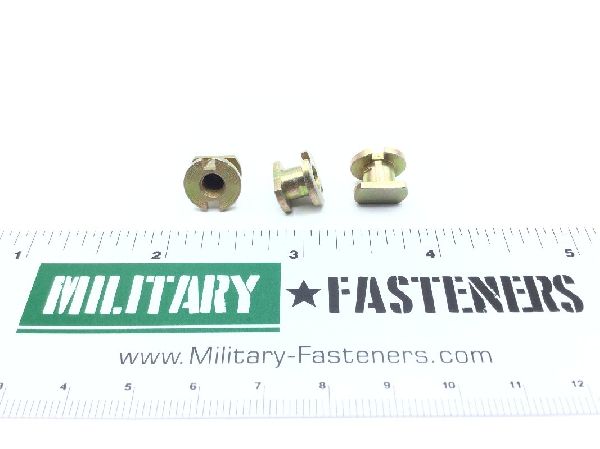

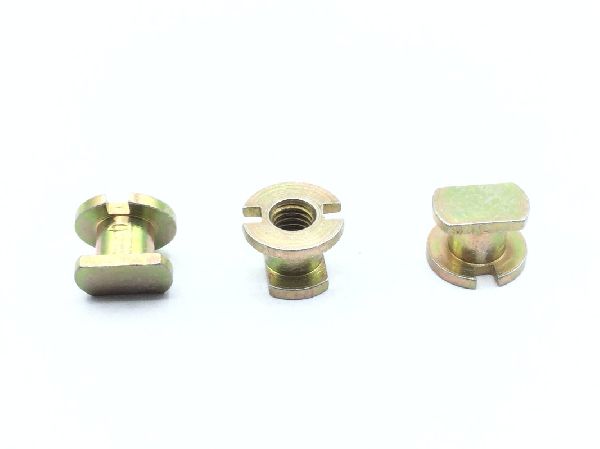

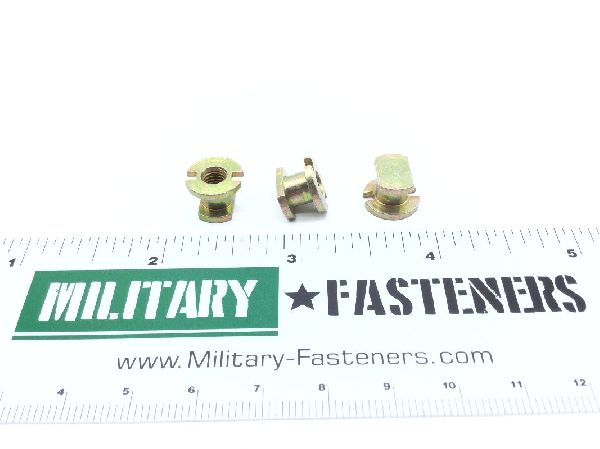

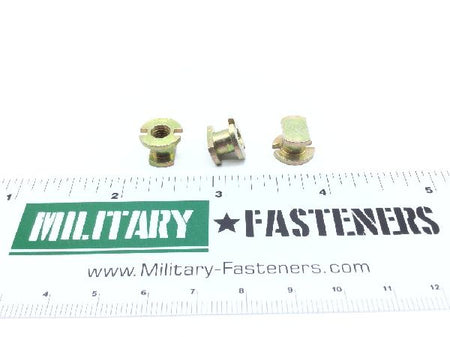

NAS1836-3-10 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.190 inches

Features: Individually keyed
Features Provided: Individually keyed
Flange Thickness: 0.060 inches
Full Internal Thread Length: 0.187 inches
Insert Size: 0.260 inch dia
Length: 0.312 inches
Material Specification: Aisi assn standard single material response
Specification Data: 80205-nas1836 professional/industrial association standard
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.441 inches and 0.451 inches
