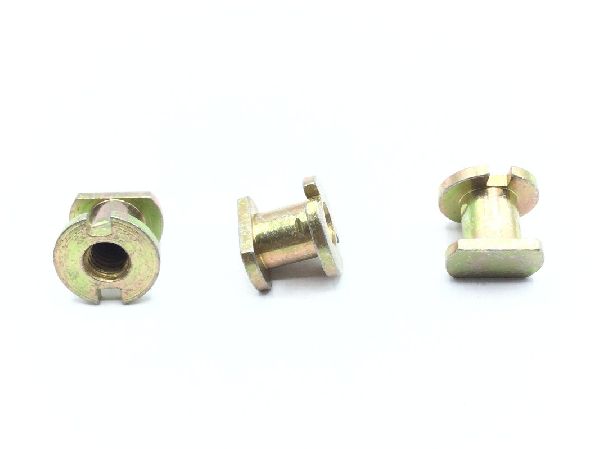

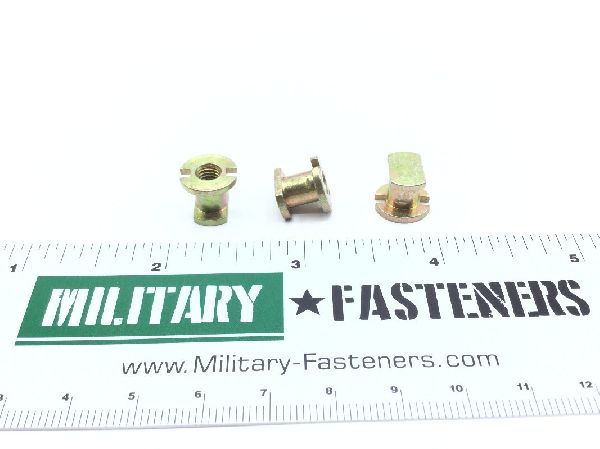

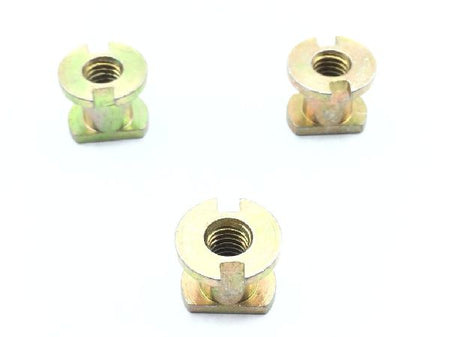

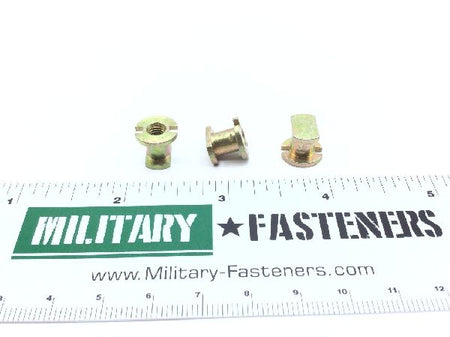

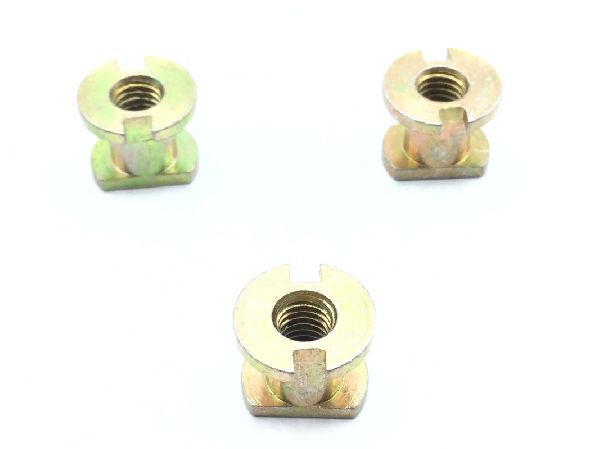

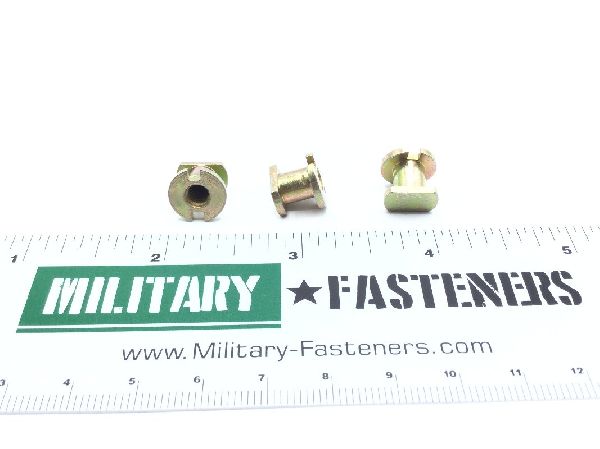

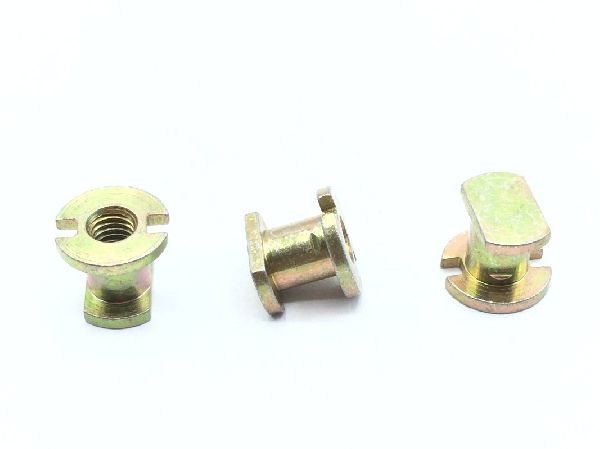

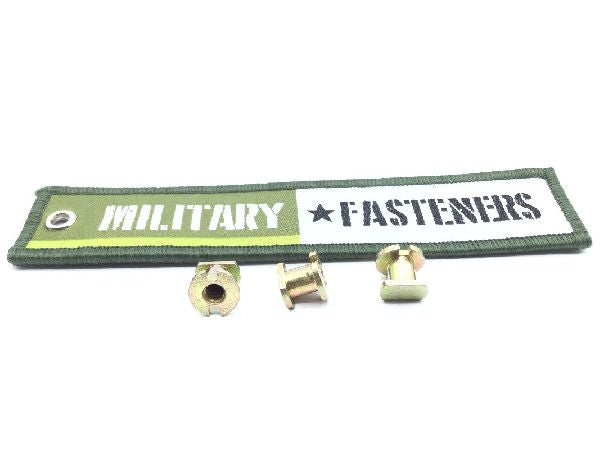

NAS1836-3-12 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Features: Potting hole or potting slot
Features Provided: Potting hole or potting slot
Flange Thickness: 0.060 inches
Hole Type: Threaded
Iii Material: Steel
Insert Style: Protruding flange
Material Specification: 66 assn standard all material responses
Sleeve Diameter: 0.260 inches
Specification Data: 80205-nas1836 professional/industrial association standard
Thread Size And Series/type Designator: 0.190-32 unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.441 inches and 0.451 inches
