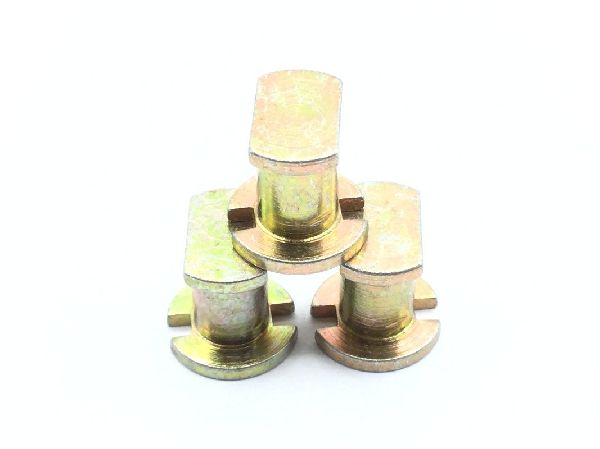

NAS1836-3-15 Screw Thread Insert

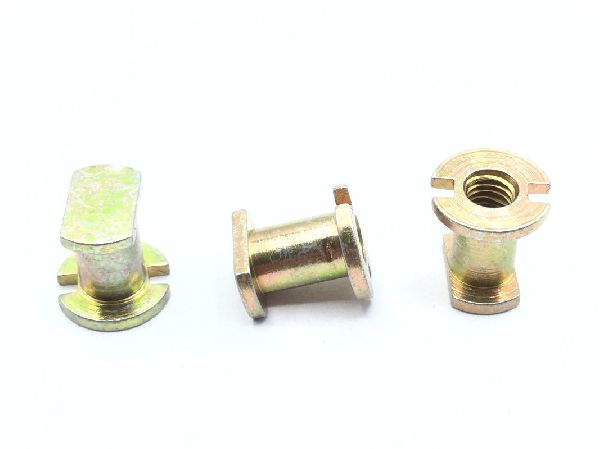

NAS1836-3-15 Screw Thread Insert (2)

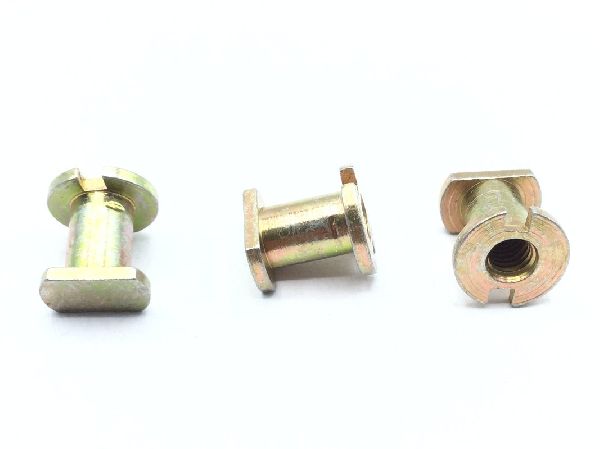

NAS1836-3-15 Screw Thread Insert (3)

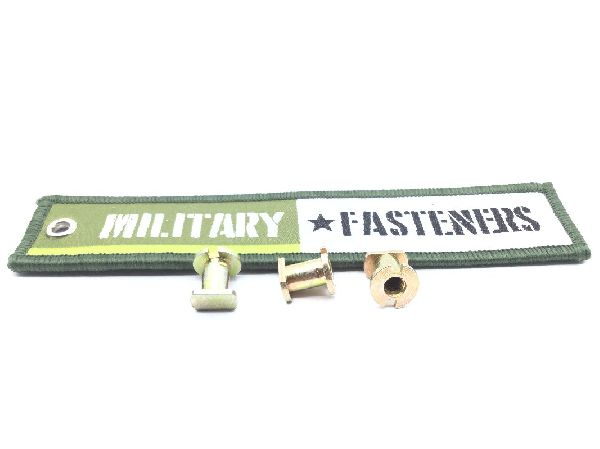

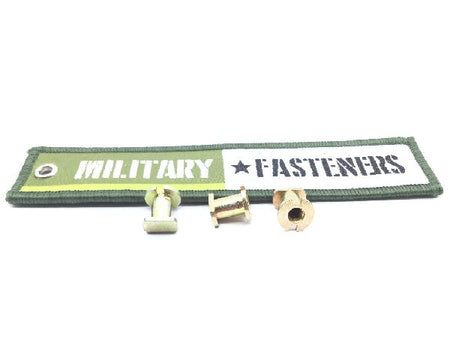

NAS1836-3-15 Screw Thread Insert (4)

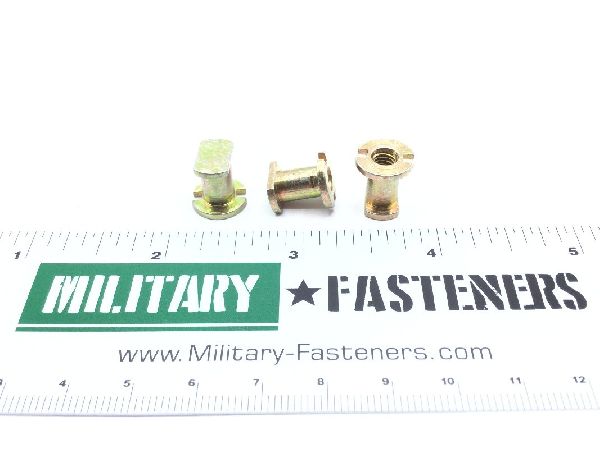

NAS1836-3-15 Screw Thread Insert (5)

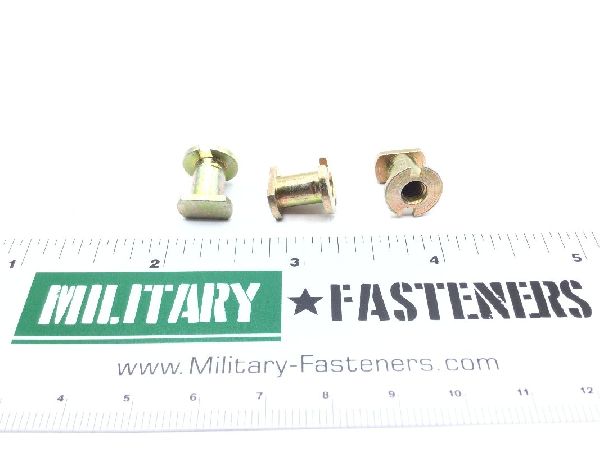

NAS1836-3-15 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1836-3-15 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Overall Length

0.465 inches

Surface Treatment

cl2 federal specification single treatment response tyii qq-p-416

Flange Thickness: 0.06 inches
Hole Type: Threaded
Iii Material: Steel
Insert Style: Protruding flange
Material Specification: Astm a108 assn standard single material response or astm a576 assn standard single material response or 66 federal specification single material response
Thread Size And Series/type Designator: 0.190-32 unjf (fine thread with external controlled root radius)
Flange Diameter: 0.41 inches
