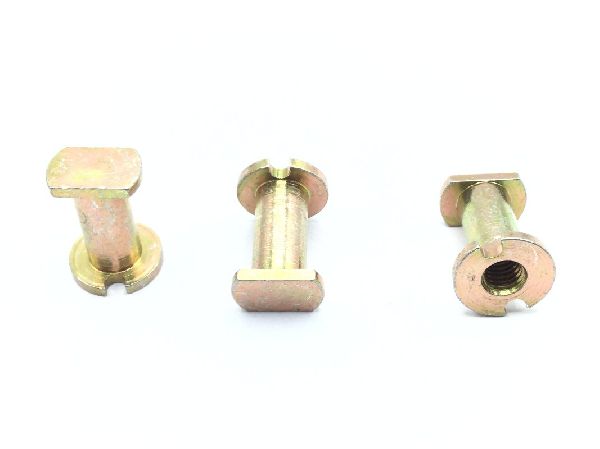

NAS1836-3-20 Screw Thread Insert

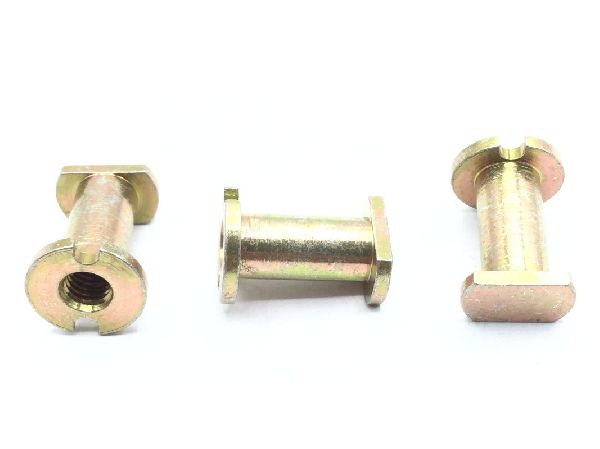

NAS1836-3-20 Screw Thread Insert (2)

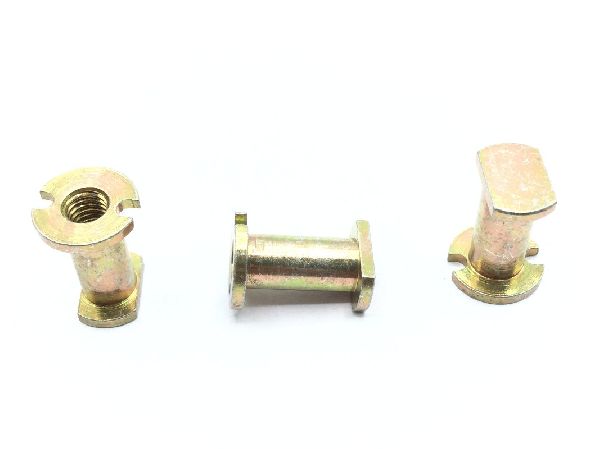

NAS1836-3-20 Screw Thread Insert (3)

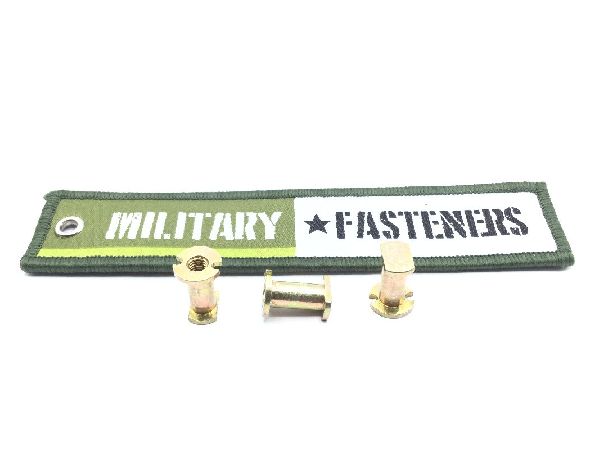

NAS1836-3-20 Screw Thread Insert (4)

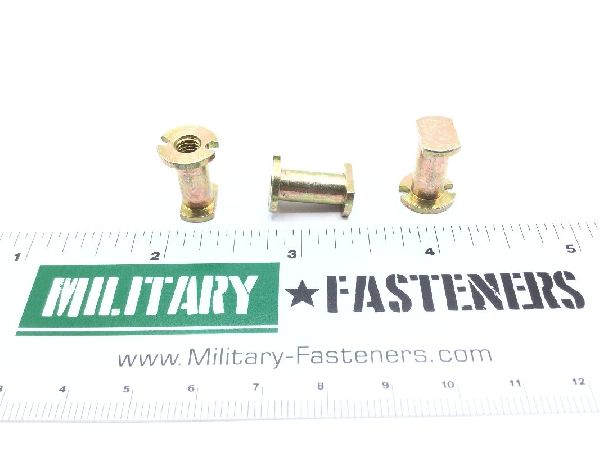

NAS1836-3-20 Screw Thread Insert (5)

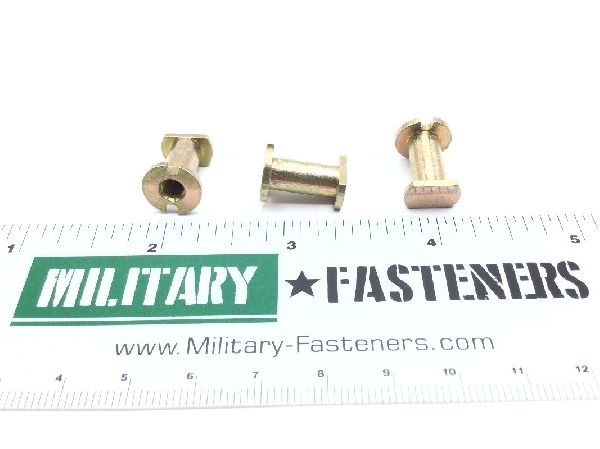

NAS1836-3-20 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1836-3-20 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Size

0.190 inches

Features: Individually keyed
Features Provided: Individually keyed
Flange Thickness: 0.060 inches
Insert Size: 0.250 in. nom dia
Length: 0.620 inches
Second Flange Thickness: 0.060 inches
Specification Data: 80205-nas1836 professional/industrial association standard
Style Designator: Flange
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: 0.260 inches
Flange Diameter: Between 0.441 inches and 0.451 inches
