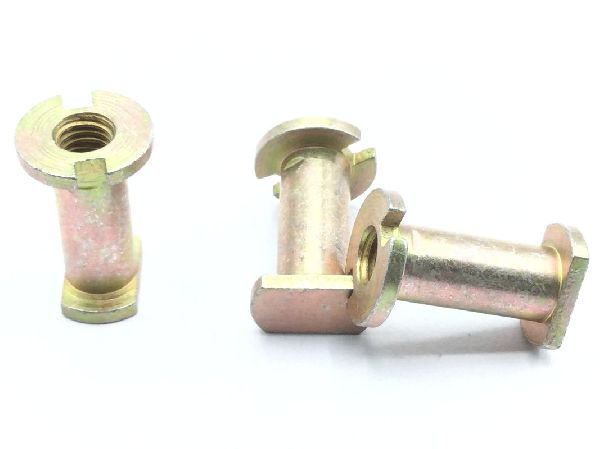

NAS1836-3-22 Screw Thread Insert

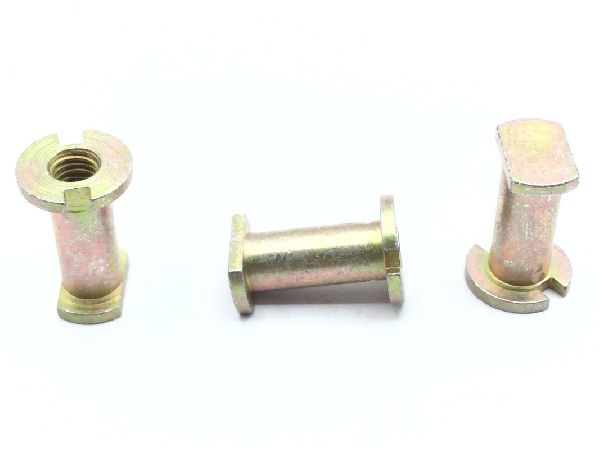

NAS1836-3-22 Screw Thread Insert (2)

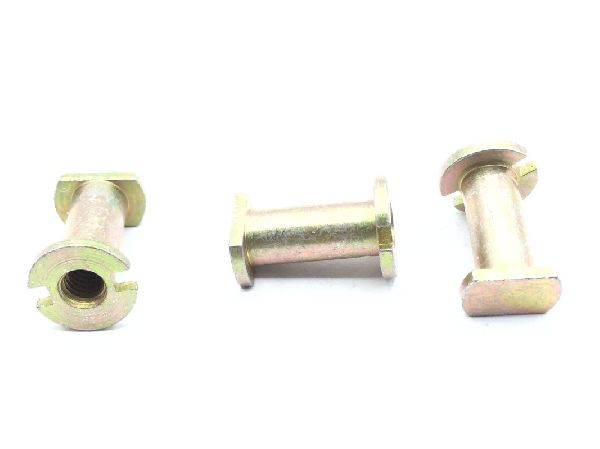

NAS1836-3-22 Screw Thread Insert (3)

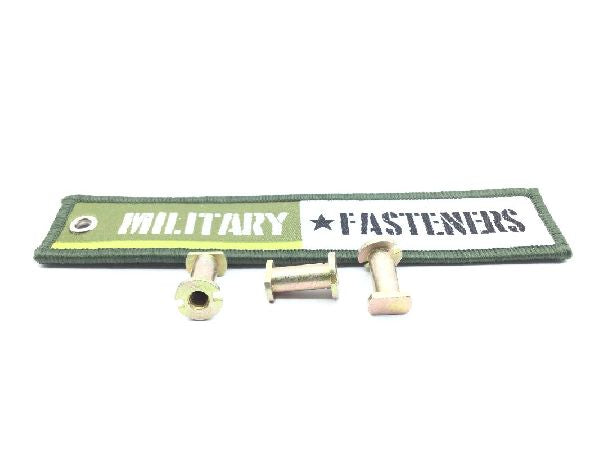

NAS1836-3-22 Screw Thread Insert (4)

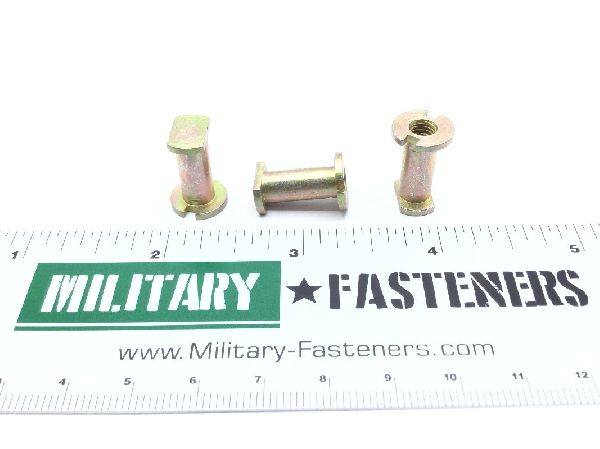

NAS1836-3-22 Screw Thread Insert (5)

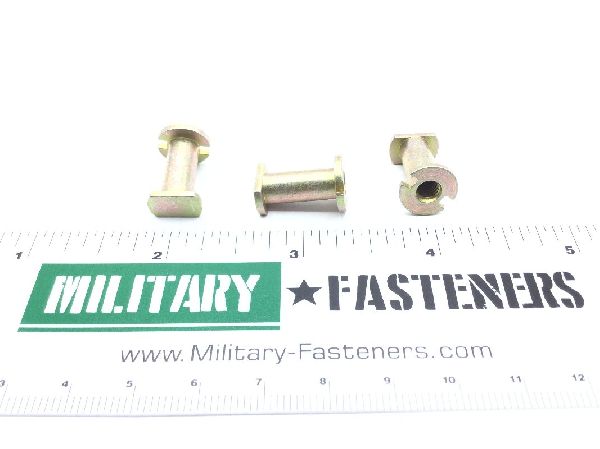

NAS1836-3-22 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1836-3-22 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $6.00

Units per Pack 10

Price per Pack $60.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $60.00

Add item to quote

Material

Steel

Surface Treatment

class 2 federal specification single treatment response type ii qq-p-416

Thread Class

3b

Thread Size

0.190 inches

Flange Thickness: 0.060 inches
Length: 0.682 inches
Material Specification: Astm a108 assn standard single material response or astm a576 assn standard single material response
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Flange Diameter: 0.451 inches
