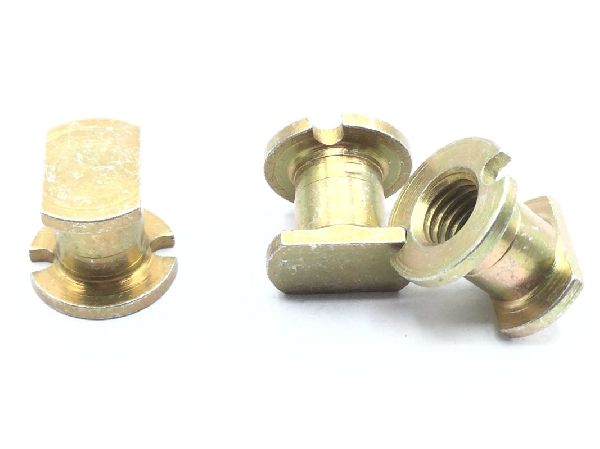

NAS1836-4-14 Screw Thread Insert

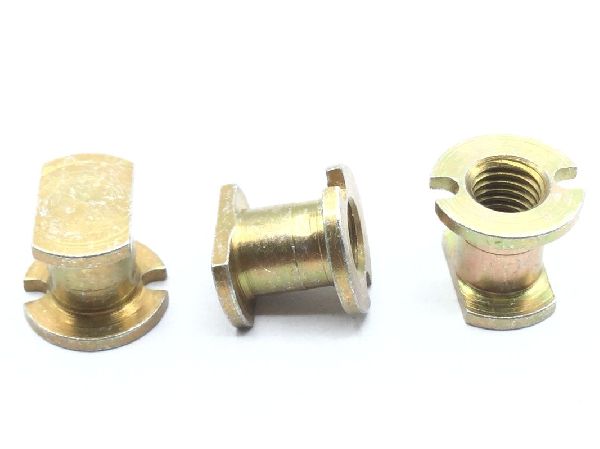

NAS1836-4-14 Screw Thread Insert (2)

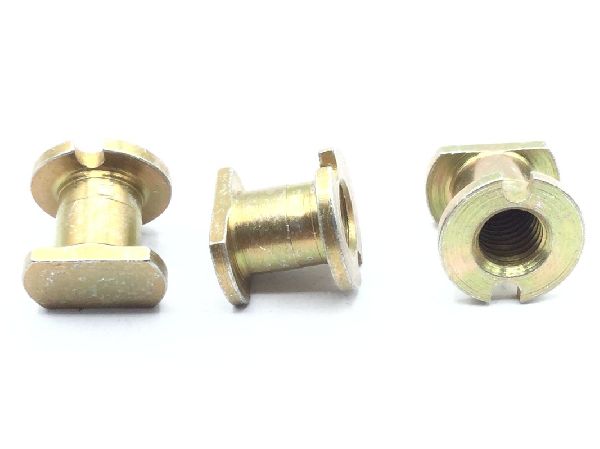

NAS1836-4-14 Screw Thread Insert (3)

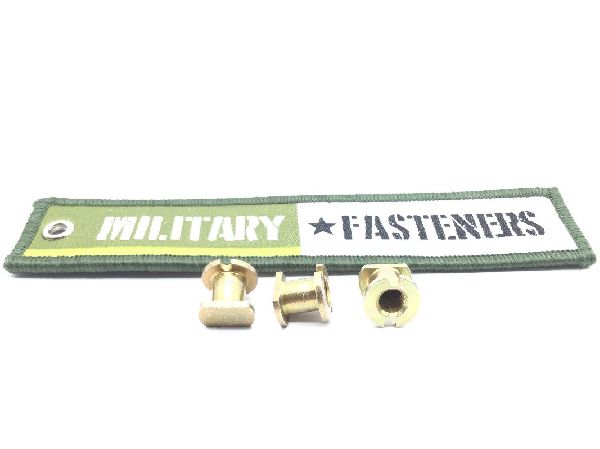

NAS1836-4-14 Screw Thread Insert (4)

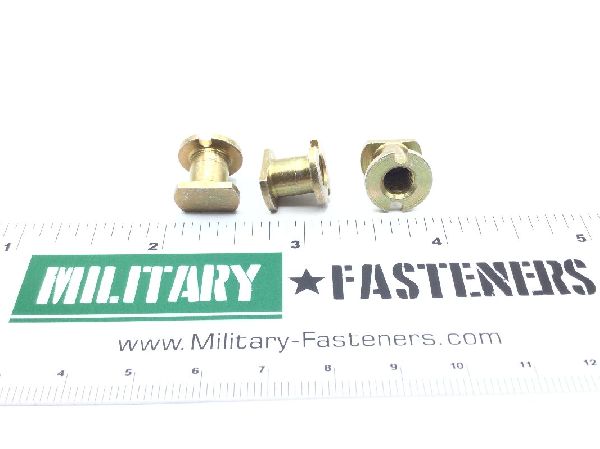

NAS1836-4-14 Screw Thread Insert (5)

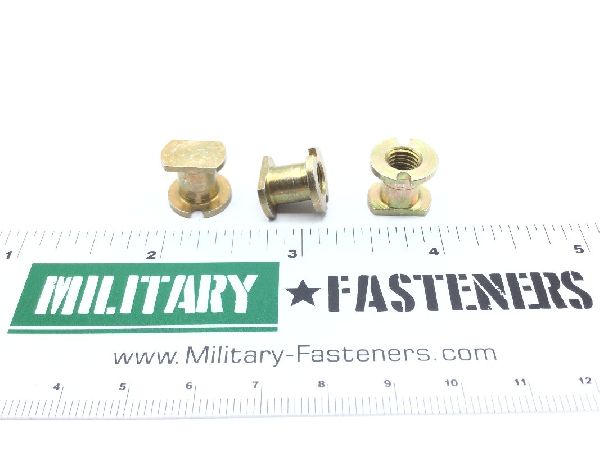

NAS1836-4-14 Screw Thread Insert (6)
NAS1836-4-14 Screw Thread Insert
NAS1836-4-14 Screw Thread Insert (2)
NAS1836-4-14 Screw Thread Insert (3)
NAS1836-4-14 Screw Thread Insert (4)
NAS1836-4-14 Screw Thread Insert (5)
NAS1836-4-14 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1836-4-14 Screw Thread Insert

Product Series
NAS
ECCN
EAR99
Schedule
7318.16.0085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 1137
Surface Treatment
Class 2 federal specification single treatment response type 2 qq-p-416
Features
Individually keyed
Features Provided
Individually keyed
Flange Thickness
0.060 inches
Full Internal Thread Length
0.250 inches
Insert Size
0.312 in. dia
Length
0.438 inches
Material Specification
Aisi assn standard single material response
Specification Data
80205-nas1836 professional/industrial association standard
Flange Diameter
Between 0.488 inches and 0.498 inches
