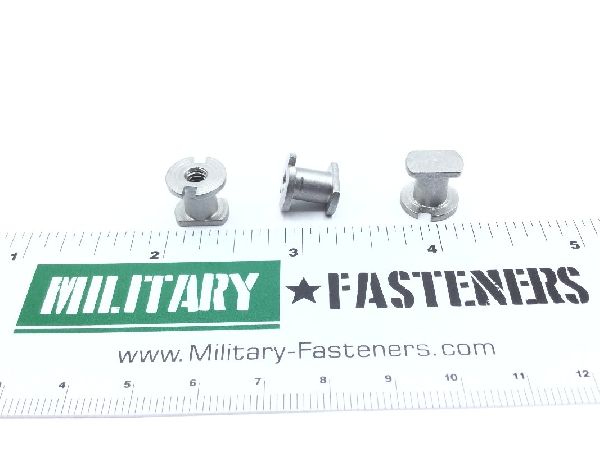

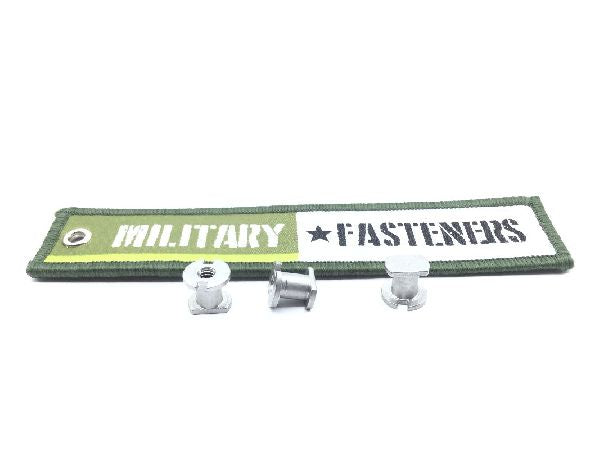

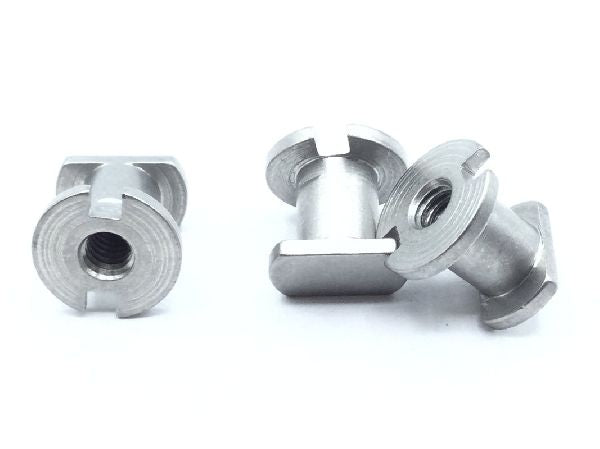

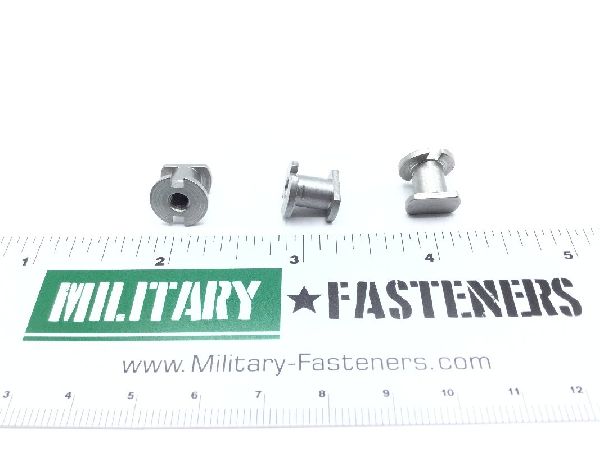

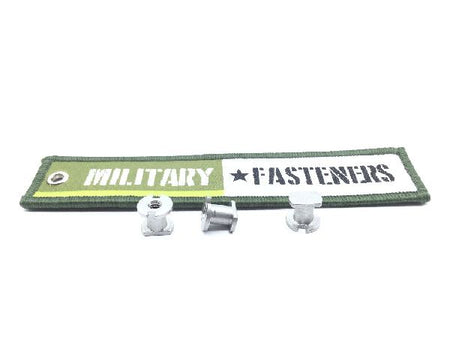

NAS1836C08-13 Screw Thread Insert

NAS1836C08-13 Screw Thread Insert (2)

NAS1836C08-13 Screw Thread Insert (3)

NAS1836C08-13 Screw Thread Insert (4)

NAS1836C08-13 Screw Thread Insert (5)

NAS1836C08-13 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1836C08-13 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $7.36

Units per Pack 10

Price per Pack $73.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $73.60

Add item to quote

Overall Length

0.403 inches

Surface Treatment

Qq-p-35 federal specification single treatment response

Features: Potting slot
Features Provided: Potting slot
Hole Type: Threaded
Iii Material: Steel comp 303
Insert Style: Protruding flange
Material Specification: Astm a582 assn standard single material response
Shoulder Diameter: 0.430 inches
Specification Data: 80205-nas1836 professional/industrial association standard
Thread Size And Series/type Designator: 0.164-32 unjc
Flange Diameter: Between 0.441 inches and 0.451 inches
