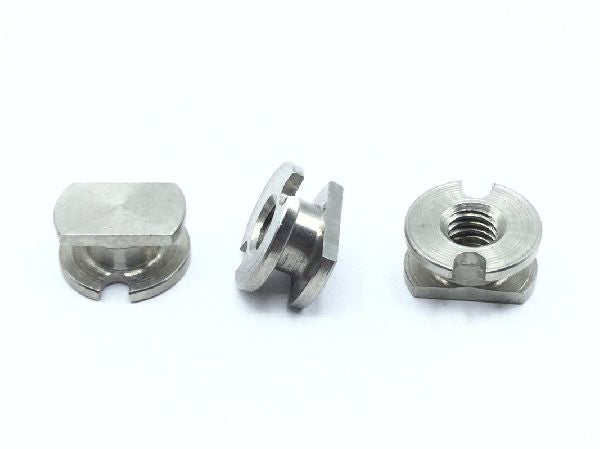

NAS1836C3-07 Screw Thread Insert

NAS1836C3-07 Screw Thread Insert (2)

NAS1836C3-07 Screw Thread Insert (3)

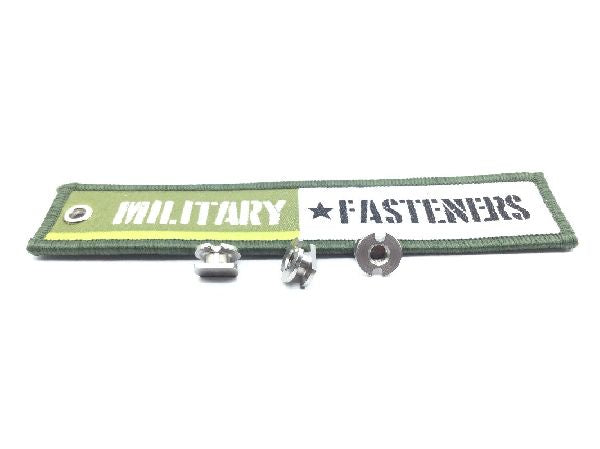

NAS1836C3-07 Screw Thread Insert (4)

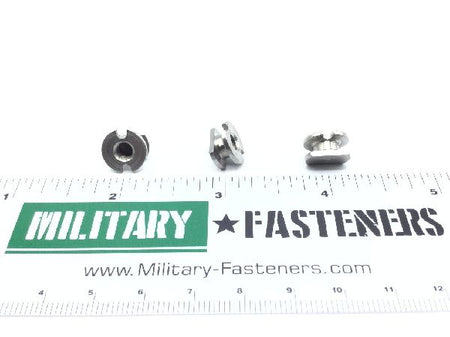

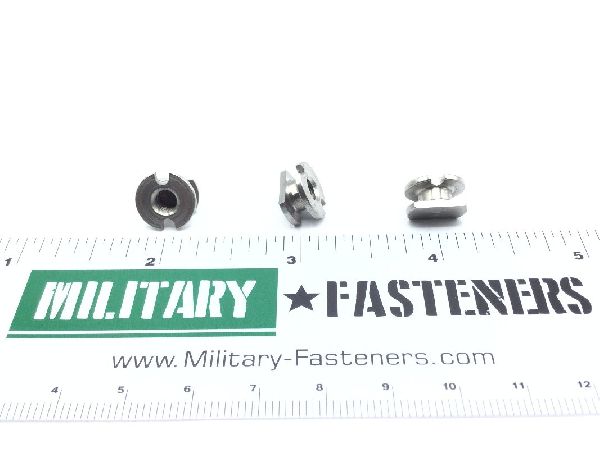

NAS1836C3-07 Screw Thread Insert (5)

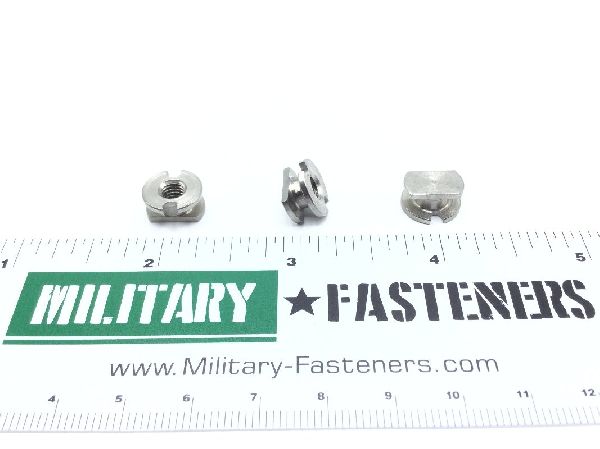

NAS1836C3-07 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1836C3-07 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $3.96

Units per Pack 20

Price per Pack $79.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $79.20

Add item to quote

Overall Length

0.217 inches

Surface Treatment

Qq-p-35 federal specification single treatment response

Flange Thickness: 0.60 inches
Hole Type: Threaded
Iii Material: Steel comp 303
Insert Style: Protruding flange
Material Specification: Astm-a582 assn standard single material response
Sleeve Diameter: 0.260 inches
Specification Data: 80205-nas1836 professional/industrial association standard
Thread Size And Series/type Designator: 0.190-32 unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.441 inches and 0.451 inches
