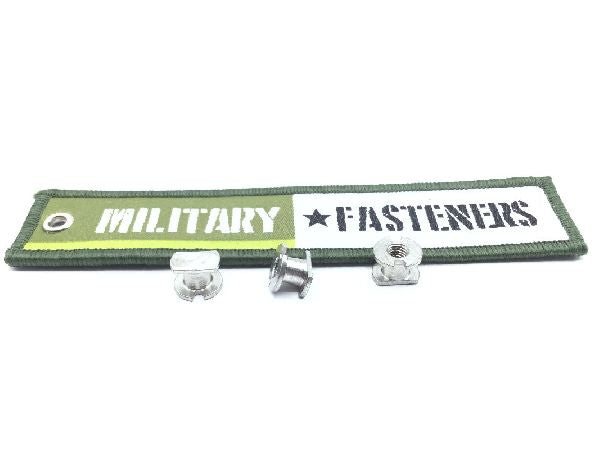

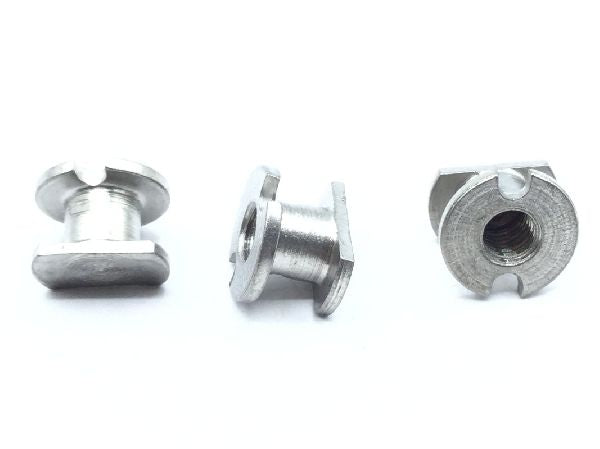

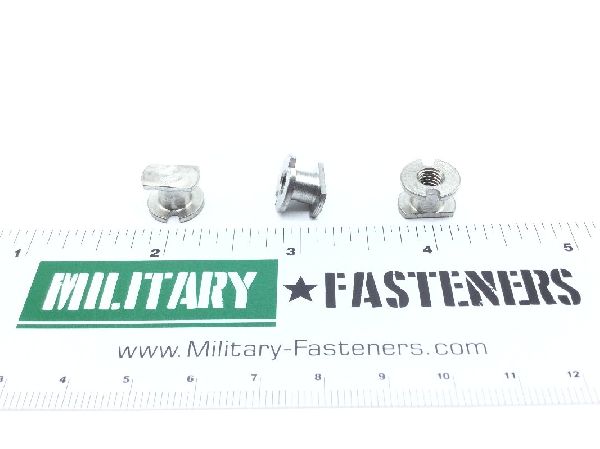

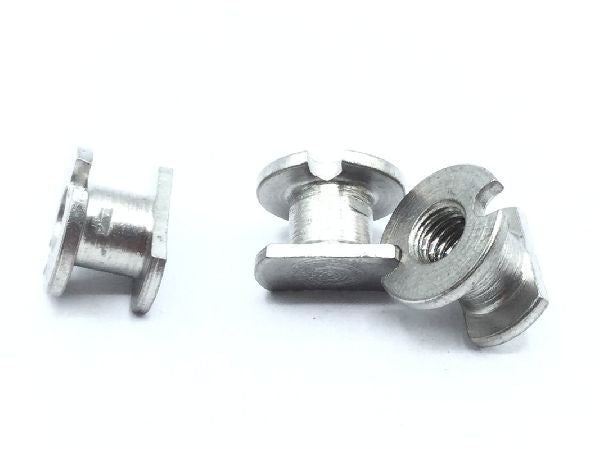

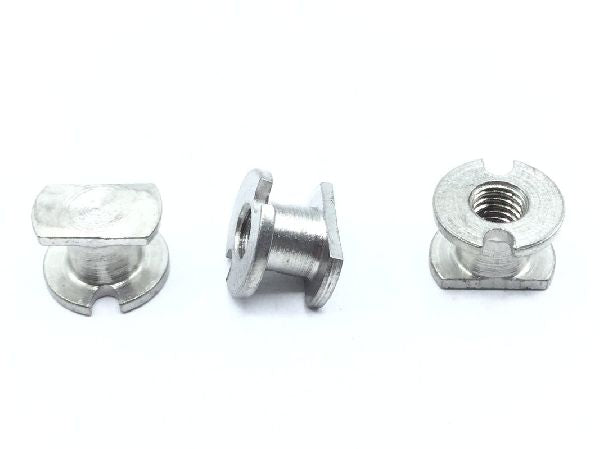

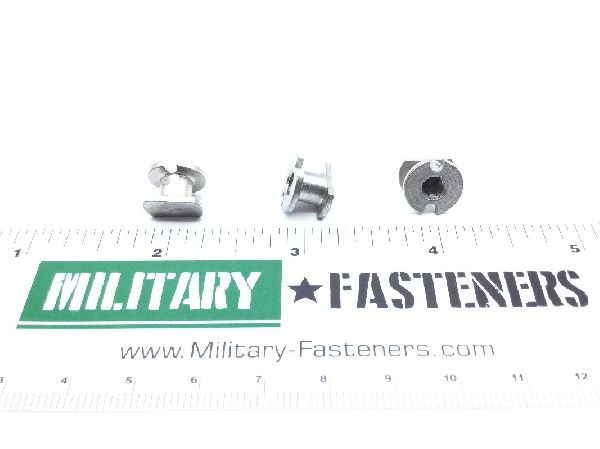

NAS1836C3-10 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $3.89

Units per Pack 10

Price per Pack $38.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.90

Add item to quote

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Size

0.190 inches

Features: Individually keyed
Features Provided: Individually keyed
Flange Thickness: 0.060 inches
Full Internal Thread Length: 0.187 inches
Insert Size: 0.260 in. dia
Length: 0.312 inches
Special Features: Solid film lubricant mil-l-8937 inside insert only
Specification Data: 80205-nas1836 professional/industrial association standard
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.441 inches and 0.451 inches
