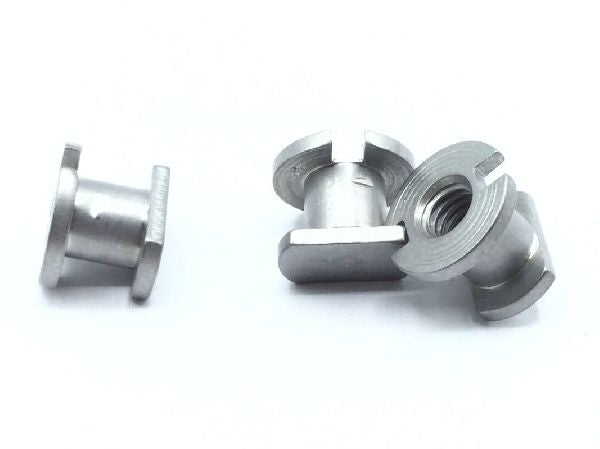

NAS1836C3-11 Screw Thread Insert

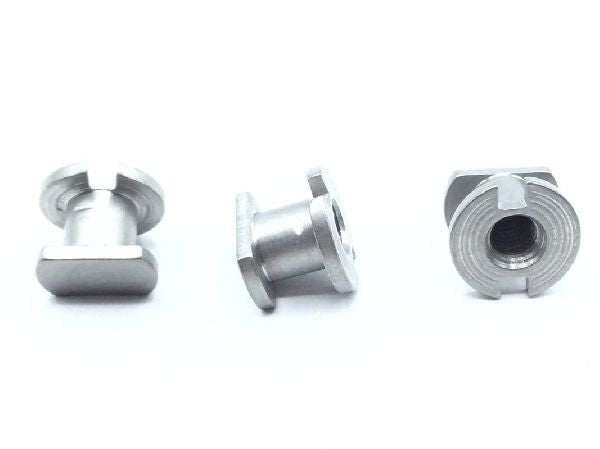

NAS1836C3-11 Screw Thread Insert (2)

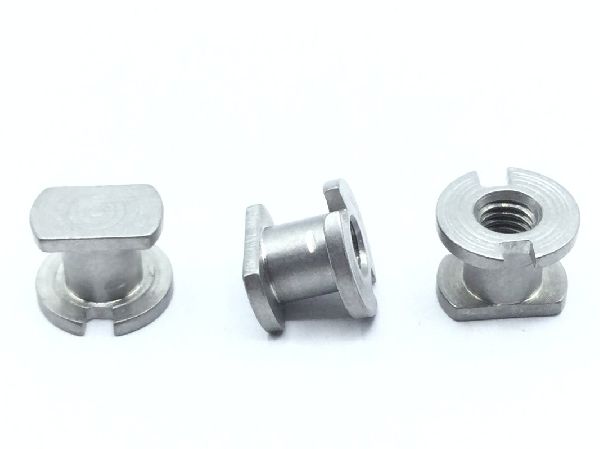

NAS1836C3-11 Screw Thread Insert (3)

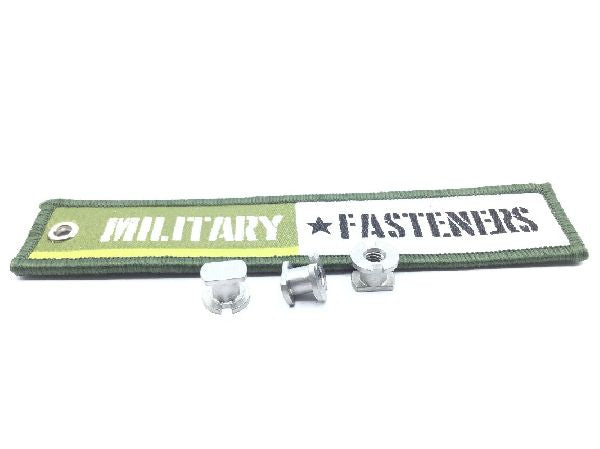

NAS1836C3-11 Screw Thread Insert (4)

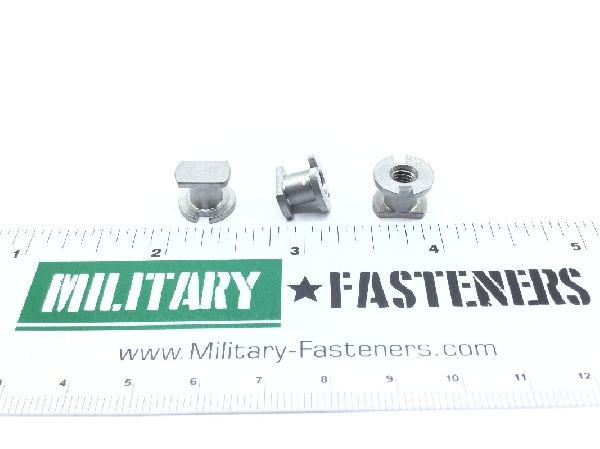

NAS1836C3-11 Screw Thread Insert (5)

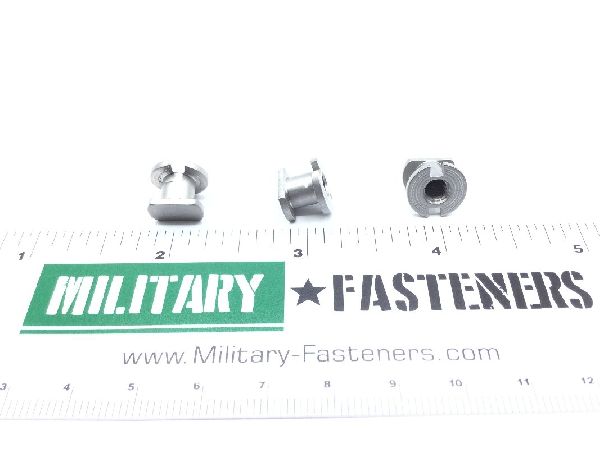

NAS1836C3-11 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1836C3-11 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Size

0.190 inches

Features: Individually keyed
Features Provided: Individually keyed
Flange Thickness: 0.060 inches
Full Internal Thread Length: 0.187 inches
Insert Size: 0.260 in. dia
Length: 0.344 inches
Specification Data: 80205-nas1836 professional/industrial association standard
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Flange Diameter: Between 0.441 inches and 0.451 inches
