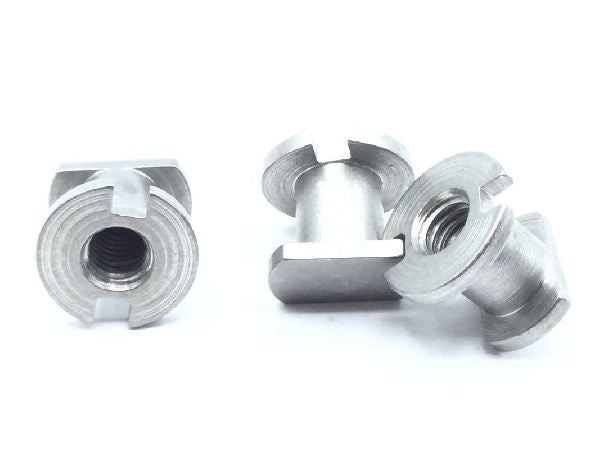

NAS1836C3-12 Screw Thread Insert

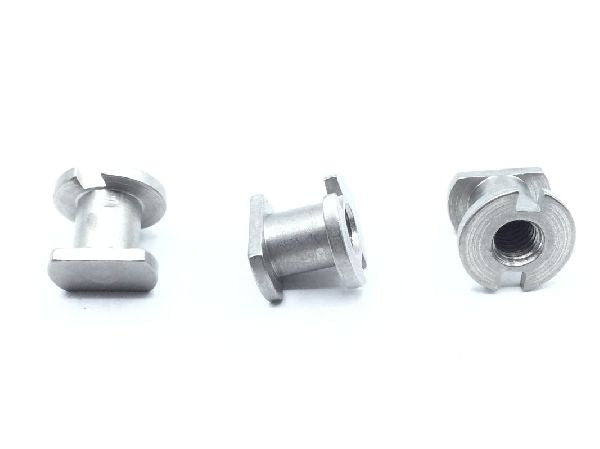

NAS1836C3-12 Screw Thread Insert (2)
NAS1836C3-12 Screw Thread Insert (3)

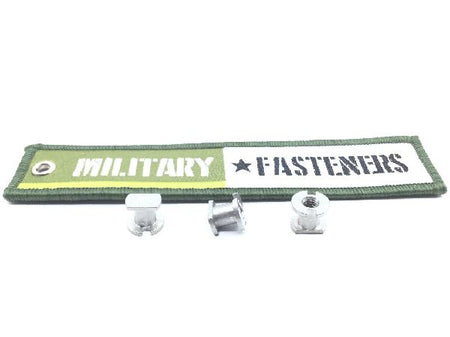

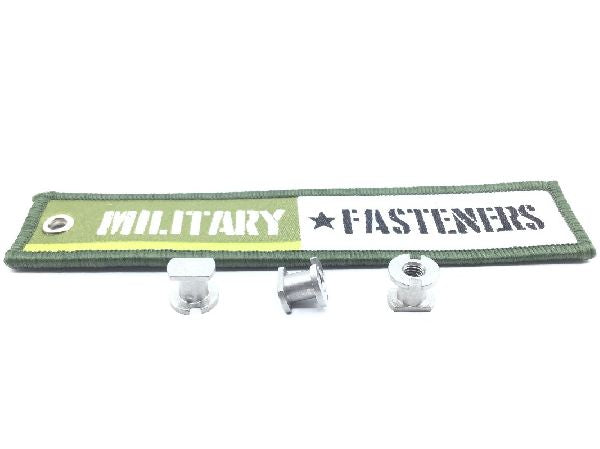

NAS1836C3-12 Screw Thread Insert (4)

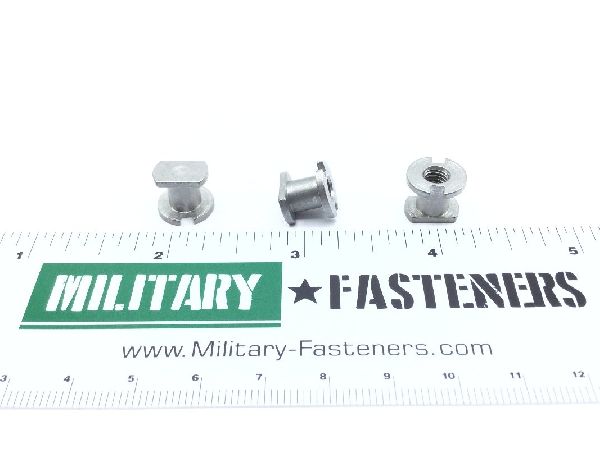

NAS1836C3-12 Screw Thread Insert (5)

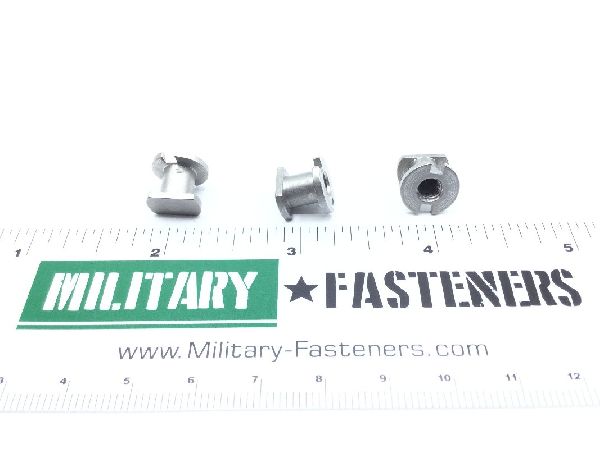

NAS1836C3-12 Screw Thread Insert (6)
NAS1836C3-12 Screw Thread Insert
NAS1836C3-12 Screw Thread Insert (2)
NAS1836C3-12 Screw Thread Insert (3)
NAS1836C3-12 Screw Thread Insert (4)
NAS1836C3-12 Screw Thread Insert (5)
NAS1836C3-12 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1836C3-12 Screw Thread Insert

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Qq-p-35 federal specification single treatment response
Flange Thickness
0.060 inches
Hole Type
Threaded
Insert Style
Protruding flange
Material Specification
Astm a582 assn standard single material response
Sleeve Diameter
0.260 inches
Special Features
Pin overaal length is 0.375 inch
Specification Data
80205-nas1836 professional/industrial association standard
Thread Size And Series/type Designator
0.190-32 unjf (fine thread with external controlled root radius)
Flange Diameter
Between 0.441 inches and 0.451 inches
