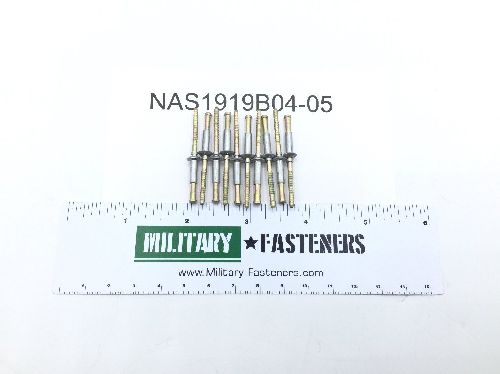

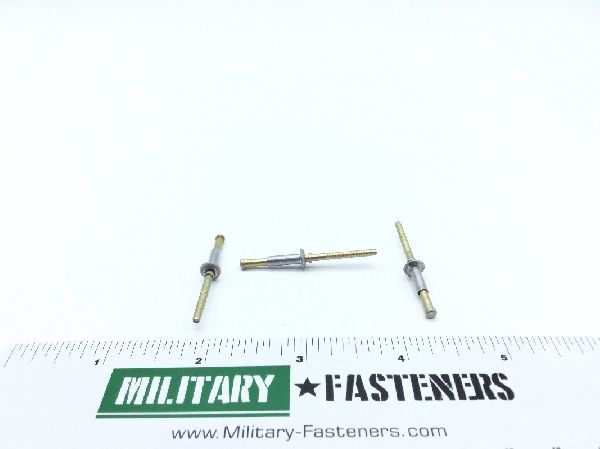

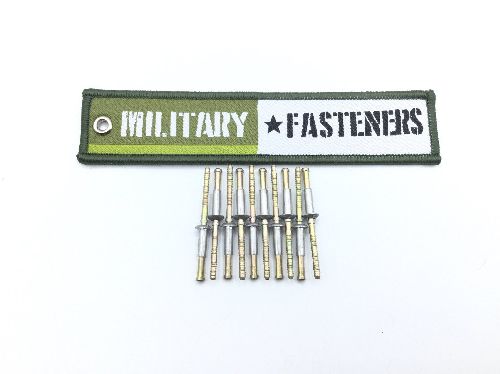

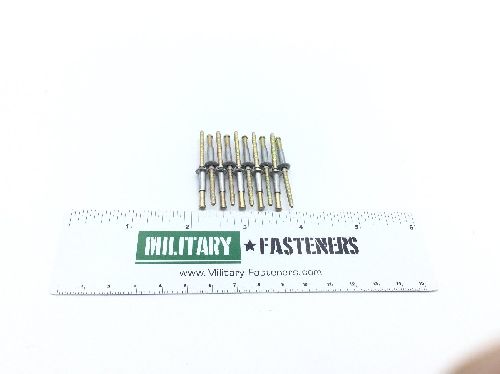

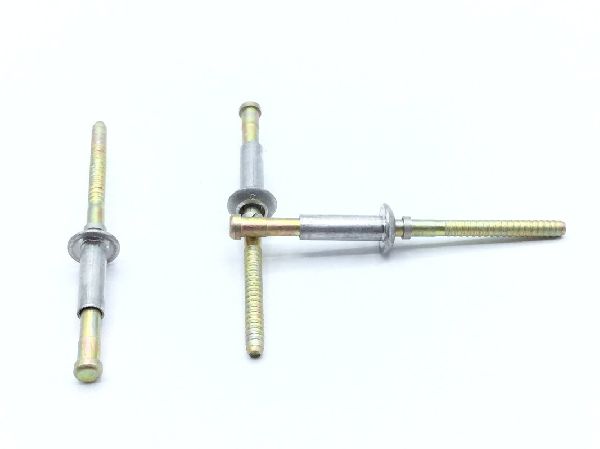

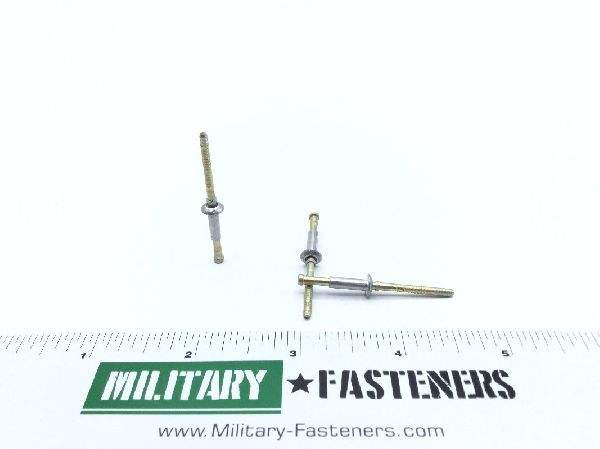

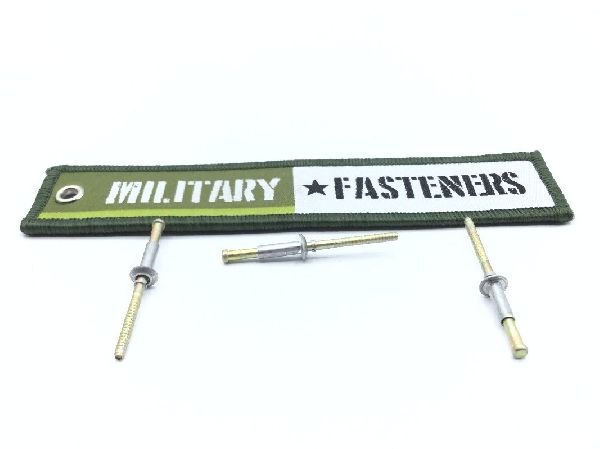

NAS1919B04-05 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Aluminum alloy 5056 sleeve or aluminum alloy 2024 sleeve

Surface Treatment

Mil-c-5541 military specification single treatment response stem or mil-a-8625 military specification 1st treatment response stem

Expansion Device: Serrated stem-type w
Fastener Length: 0.448 inches
Grip Length: Between 0.251 inches and 0.312 inches
Head Height: Between 0.054 inches and 0.064 inches
Head Major Diameter: Between 0.238 inches and 0.262 inches
Material Specification: Qq-a-430 federal specification single material response stem
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Self-plugging mechanically locked stem
Shear Strength: 495 single pounds per square inch
Special Features: Self-locking
Specification Data: 80205-nas1919 professional/industrial association standard
