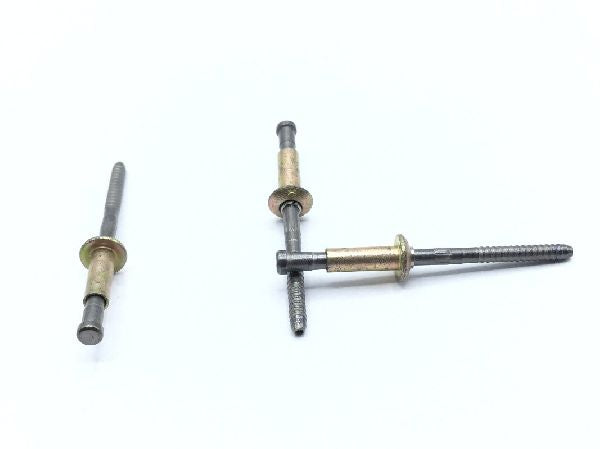

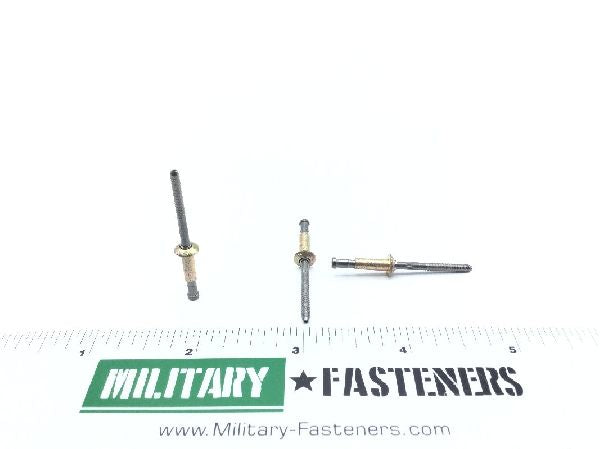

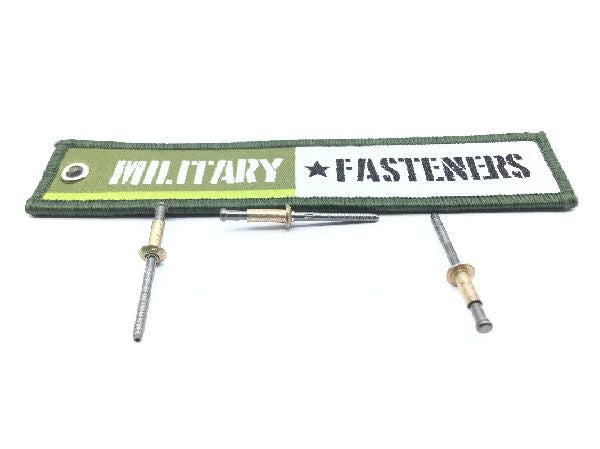

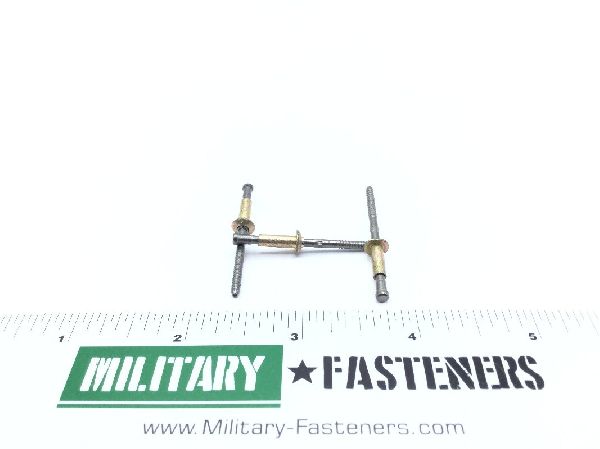

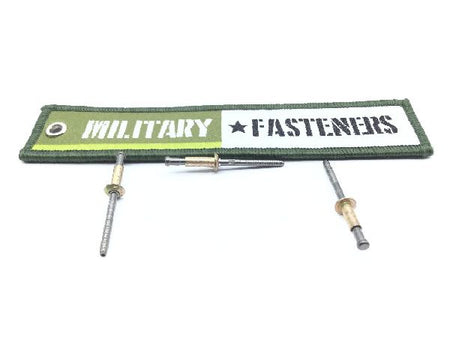

NAS1919M04-04W Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Nickel alloy 400 sleeve or nickel alloy r-405 sleeve

Surface Treatment

Qq-p-35 federal specification single treatment response stem

Expansion Device: Serrated stem-type w
Fastener Length: 0.385 inches
Grip Length: Between 0.188 inches and 0.250 inches
Head Height: Between 0.054 inches and 0.064 inches
Head Major Diameter: Between 0.238 inches and 0.262 inches
Material Specification: Ams 5737 assn standard single material response stem
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Self-plugging mechanically locked stem
Special Features: Self locking
Specification Data: 80205-nas1919 professional/industrial association standard
