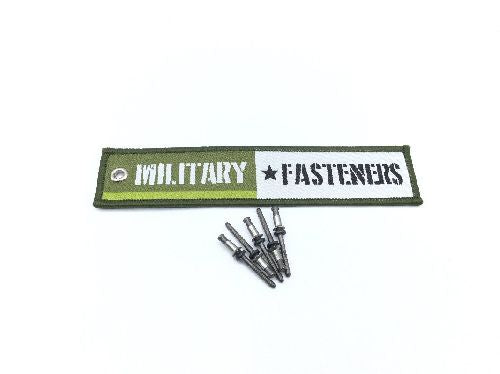

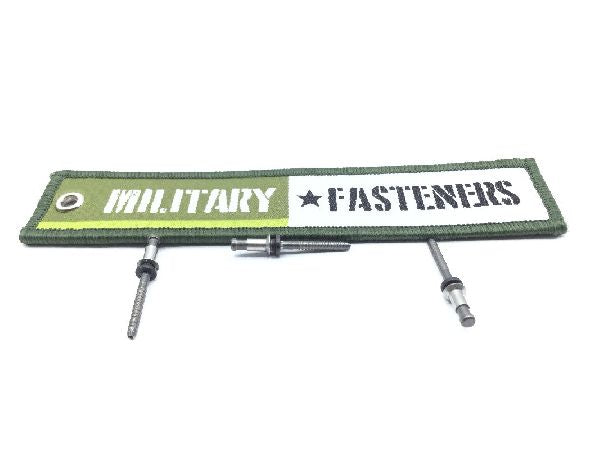

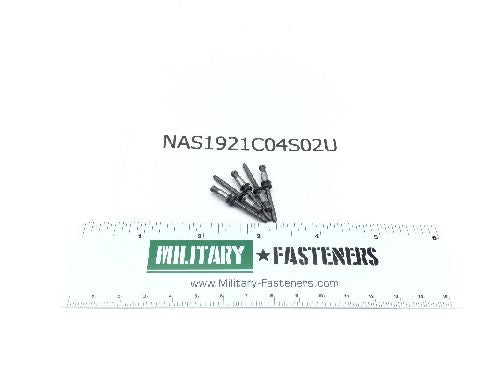

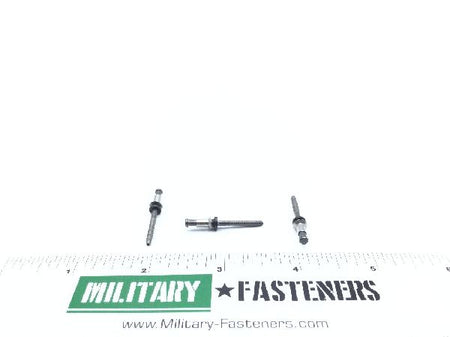

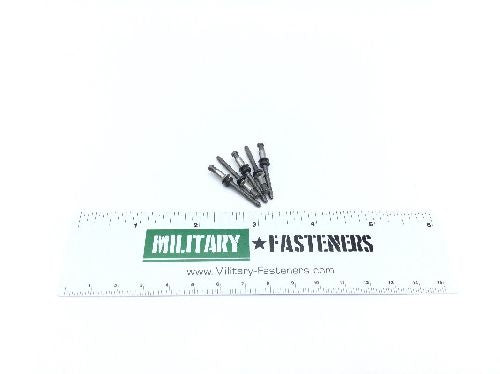

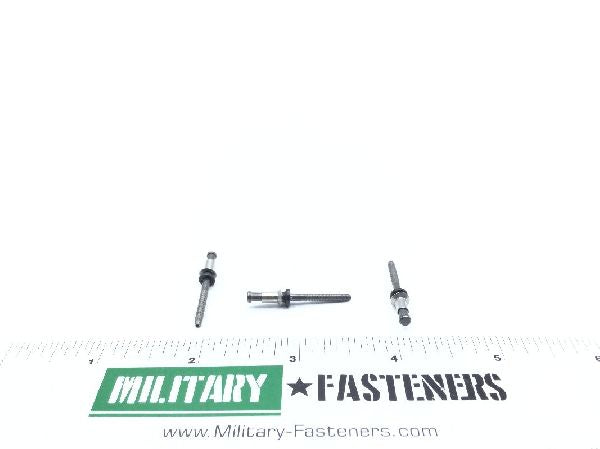

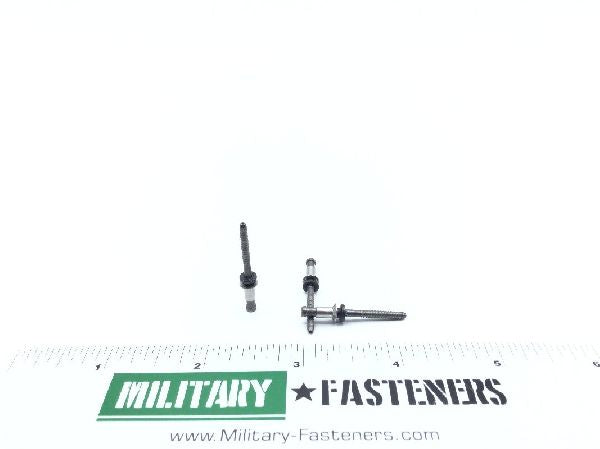

NAS1921C04S02U Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response stem

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Serrated stem-type w
Grip Length: Between 0.063 inches and 0.125 inches
Head Major Diameter: Between 0.221 inches and 0.229 inches
Material Specification: Ams5737 assn standard single material response
Shank Diameter: 0.125 inches
Shank Style: Self-plugging mechanically locked stem
Special Features: For use with single action (non-shifting) hand held installation tools or in automated installation equipment; with drive anvil washer
